Custom Carbon Fiber Infrared Heating Lamp for Paint Drying

Brand Name:	UVIR
Model Number:	SCG100021
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Advantages Of Heat Lamps:

1. Lamp Materials: Manufactured From Foreign Imported High-end Quartz Tube. 2. Longer Serving Life: The Mid-temp And Low-temp Ones 5000 Hours. 3. High Efficiency: More Than 85% Heat Efficiency Of Full Power. 4. More Effective Reflective Layer Saves Energy:

APPLICATION:

(1)Heater(2)Plastic Forming(3)Bottle Blowing(4)Paint Drying(5)Food Catering/processing And Etc.(6)Pre-heating Of PET Perform (7)Fusing Printing Ink(8)Drying Process In Paper Mill(9)Plastics Thermoforming(10)Silicon Wafer Manufacturing Process In Semiconduc

Base:

R7S

FAQ:

1. Are You A Factory Or Trading Company? We Are A Professional Factory. 2. Where Is Your Factory Located? How Can I Visit There? Our Factory Is Located In JiangMen City, Guangdong Province, China, You Can Fly To GuangZhou BAIYUN Airport Directly, Warmly We

Application:

Infrared Heater, Painting Drying

Wavelength:

1-2μm

Tube Diameters:

8-24mm

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Painting Drying Infrared Heating Lamp

Customized Wattage Infrared Heating Lamp

24mm Carbon Fiber Infrared Heating Lamp

Product Description

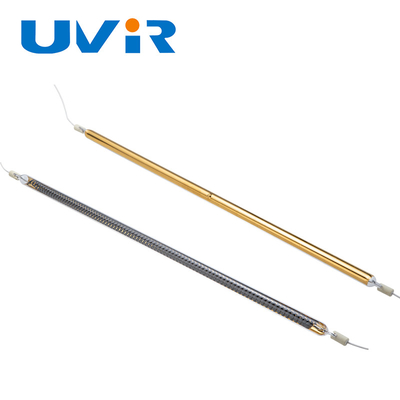

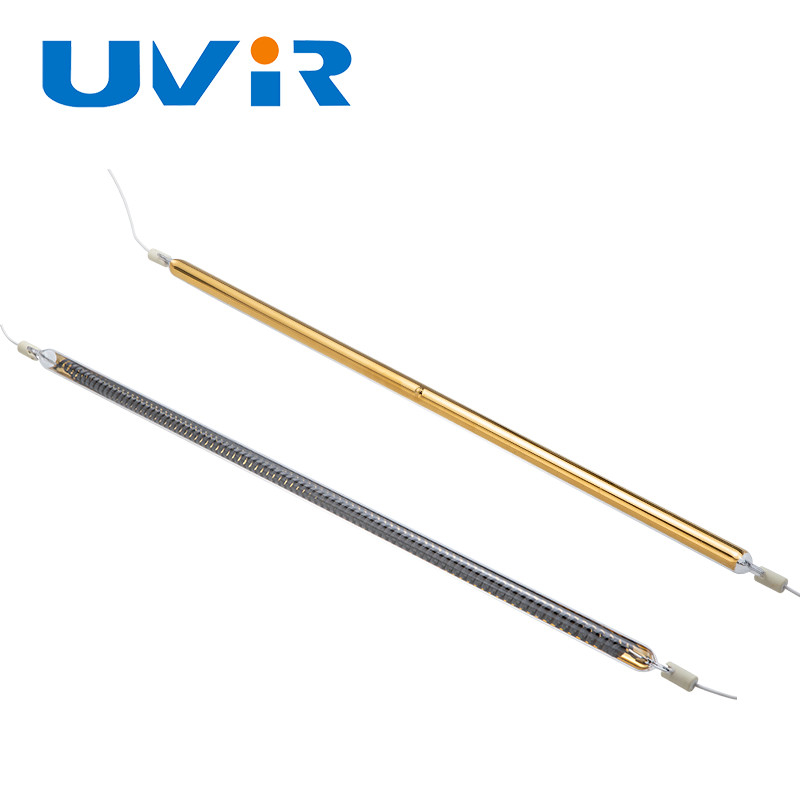

Customized Wattage Carbon Fiber Infrared Heating Lamp For Painting Drying

Product Overview

This Carbon Fiber Infrared Heating Lamp delivers exceptional energy efficiency, converting nearly all electricity into heat for quick, effective heating with minimal waste. Its lower operating temperature makes it safer and more environmentally friendly than conventional heating methods.

Key Features

Premium Materials: Manufactured from imported high-end quartz tube with tungsten wire
Extended Lifespan: Mid-temp and low-temp models last up to 5000 hours
High Efficiency: Over 85% heat efficiency at full power
Energy-Saving Design: Gold reflective coating concentrates radiation energy
Precise Control: Adjustable heating time for process optimization
Clean Operation: No surface corrosion, odor, or environmental contamination
Customizable: Adjustable wavelength, dimensions, and filaments

Technical Specifications

Parameter	Details
Base Type	R7S
Wavelength	1-2μm
Tube Diameters	8-24mm
Voltage	400V
Material	Quartz tube with tungsten wire
Reflector	Gold coating

Applications

This versatile heating solution is ideal for:

Industrial heating systems
Plastic forming and thermoforming
Bottle blowing processes
Paint drying applications
Food processing and catering
PET preform pre-heating
Printing ink fusing
Paper mill drying processes
Semiconductor manufacturing (silicon wafer processing)
Various industrial drying applications

Customization & Manufacturing

UVIR offers comprehensive OEM/ODM services with flexible options for:

Voltage and wattage specifications
Length and base configurations
Cable types and universal burning positions
Custom branding (logo printing available)

Quality Assurance

All products meet stringent quality standards with:

CE, ISO9001, RoHS, and SGS certifications
Rigorous quality control throughout production
Sample availability (1 piece minimum order)
15-day lead time after payment confirmation

Manufacturer Information

UVIR is a professional manufacturer located in JiangMen City, Guangdong Province, China. We welcome visitors to our facility near Guangzhou Baiyun International Airport.
