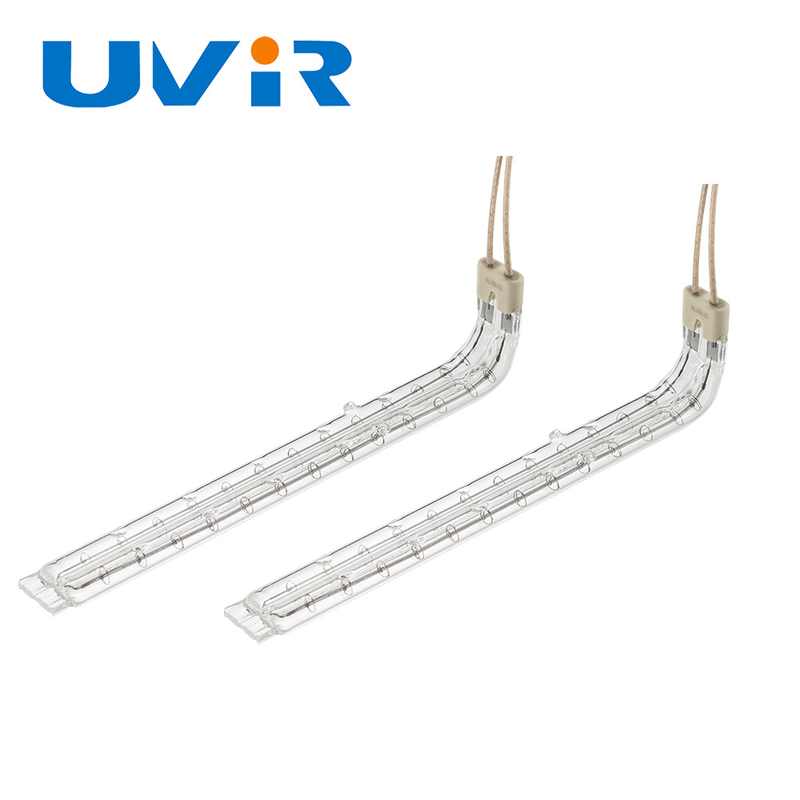

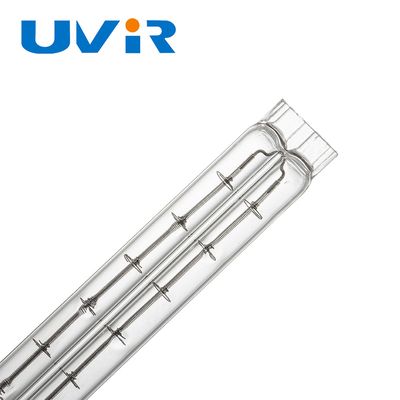

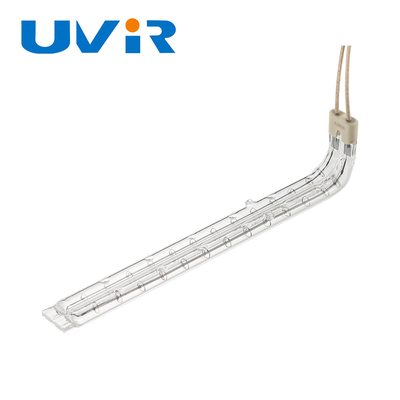

U-Shaped Infrared Heating Tube 150-6000W 1250C CE Certified

Name: U-Shaped Infrared Heating Tube 150-6000W 1250C CE Certified
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 3D Contoured Emitters
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	3D Contoured Emitters
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Soften Temperature:

1730℃

Shape:

U Shaped

OEM Service:

Available

Certifications:

CE,ISO9001,RoHS,SGS

Working Temperature:

1250℃

Power:

150-6000W

Voltage(V):

45-480V

Quartz Tube:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1730C Infrared Heating Light

Customized Infrared Heating Light

OEM Service Infrared Heating Light

Product Description

Customized Infrared Heating Light Soften Temperature 1730℃ OEM Service

Product Attributes

Attribute	Value
Soften Temperature	1730℃
Shape	U Shaped
OEM Service	Available
Certifications	CE, ISO9001, RoHS, SGS
Working Temperature	1250℃
Power	150-6000W
Voltage(V)	45-480V
Quartz Tube	8-14mm

Product Description

The U-shaped design of our infrared heating light ensures maximum efficiency in heat distribution, allowing for faster and more even heating. Its clear coating enhances infrared light effectiveness, enabling uninterrupted heat emission.

The quartz tube measures 8-14mm in diameter, providing a durable and long-lasting heating source. OEM service is available for custom solutions tailored to your specific requirements.

Key Features

Product Name: U-shaped Infrared Heating Element Double tube high-quality transparent quartz heating tube
Voltage(V): 45-480V
Color: Clear, White, Gold
Working Temperature: 1250℃
OEM Service: Available

Technical Specifications

Certifications	CE, ISO9001, RoHS, SGS
Working Temperature	1250℃
Quartz Tube	8-14mm
Transmission	Visible light >93%, UV light>85%
Power	150-6000W

Applications

This versatile heating element is widely used in plastics processing, photovoltaic, printing, food and chemical, glass, textiles, and electronic industries. Its 1250℃ working temperature and 45-480V range make it suitable for diverse applications.

Support and Services

Our technical team provides comprehensive support for product specifications, installation, and operation. We offer on-site installation and maintenance services to ensure optimal system performance.

Packaging and Shipping

Each unit includes:

1 Infrared Heating Element Tube
Protective foam packaging
Product manual

Ships within 2 business days via UPS or FedEx with standard shipping rates.

Frequently Asked Questions

Q1: What is the brand name of the Infrared Heating Element Tube?

A1: The brand name is UVIR.

Q2: What is the model number?

A2: Model number is 3D Contoured Emitters.

Q3: What certifications does it have?

A3: Certified by CE and ROHS.

Q4: Where is it manufactured?

A4: Manufactured in China.
