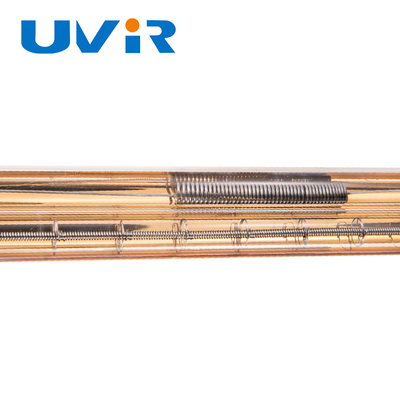

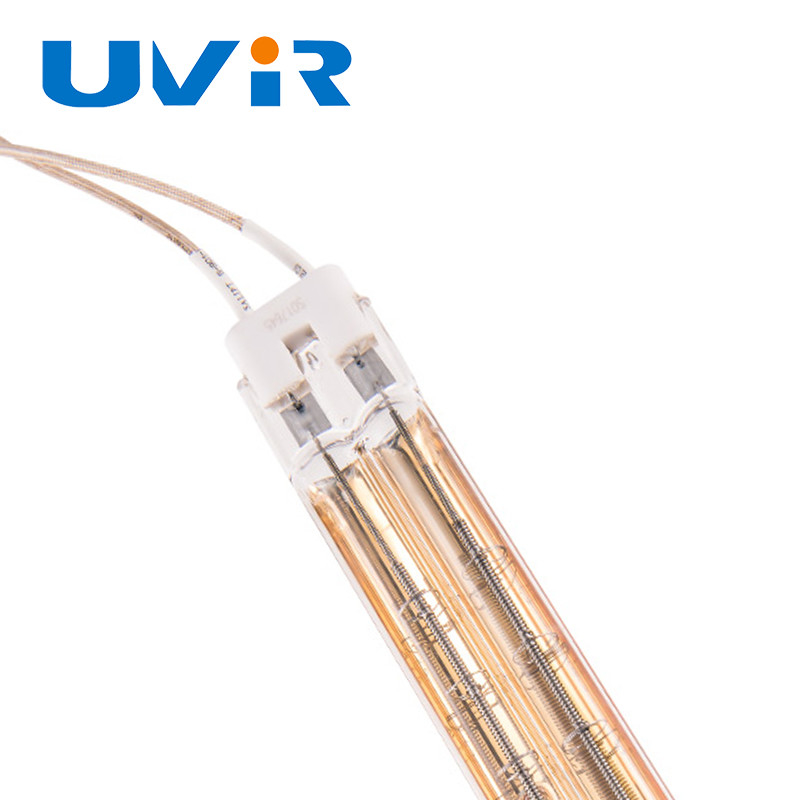

IRP013 1160mm Medium Wave Infrared Heater Lamp 6200W 400V

Name: IRP013 1160mm Medium Wave Infrared Heater Lamp 6200W 400V
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP013
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP013
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Coating:

Gold

Heating Length:

1160mm

Voltage:

400V

Watt:

6200W

Total Length:

1160mm

Energy:

Fast-med.

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

ROHS Infrared Heater Lamp

1160mm Infrared Heater Lamp

Printer Industry IRP Infrared Lamp

Product Description

IRP013 1160mm Medium Wave Infrared Heater Lamp For Printer Industry

Product Specifications

Attribute	Value
Tube diameter	15*33mm
Coating	Gold
Heating length	1160mm
Voltage	400V
Watt	6200W
Total length	1160mm
Energy	Fast-med.
Place of Origin	Guangdong, China
Construction	B

Product Advantages

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament without fluffing
Optimal power output and maximum longevity

Quartz Glass Tube

Premium high-temperature quartz glass
Extended service life: over 5000 hours
Non-toxic with no peculiar smell, eliminating contamination risks

Technical Parameters

Type	Infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	400V
Voltage	6200W
OEM/ODM	Custom voltage, wattage, length, base, cables available

Product Images

Product Details

High quality raw material: Combining premium transparent quartz tube materials with halogen principles to effectively increase infrared radiation density, achieving optimal heating performance.

High-quality coating (optional): Semi-plated white coating using quartz powder technology reflects over 90% of infrared heat in the same direction, minimizing energy loss.

High temperature heating: Tungsten wire heats gas in the quartz tube under AC voltage, producing infrared radiation. The red tube offers excellent quality, high thermal efficiency, rapid heating, energy savings, and long lifespan.

Compatibility Chart

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52

Applications

Plastics Processing: IR drying of coatings on plastics, stretching/shrinking plastics, plastic packaging, PET bottle blow molding
Printing Industry: IR curing ink on cloth, drying for inkjet-based CTP plates, drying printing products (e.g., banner machines)

Installation Guidelines

Always turn off electrical power when installing or replacing lamps
Never exceed maximum rated voltage (V > 110% of rated voltage may destroy emitter)

Transportation

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples need 5-7 days, mass production takes about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 2 pieces per model.

Q4. How do you ship the goods?

A: Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.

Q5. How to proceed with an order?

A: 1) Share your requirements 2) We provide quote 3) Confirm samples & place deposit 4) Production begins

Q6: How to deal with faulty products?

A: Our strict quality control minimizes defects. During warranty, replacements ship with next order.
