6200W 400V Medium Wave Infrared Heating Lamp for 3D Printers

Name: 6200W 400V Medium Wave Infrared Heating Lamp for 3D Printers
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP013
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP013
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Construction:

Voltage:

400V

Watt:

6200W

Heating Length:

1060mm

Total Length:

1160mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Energy:

Fast-med.

Size:

15*33mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

OEM IRP Infrared Lamp

1160mm Infrared Heating Lamps

Halogen IRP Infrared Lamp

Product Description

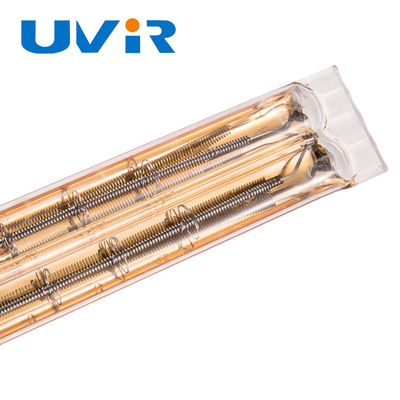

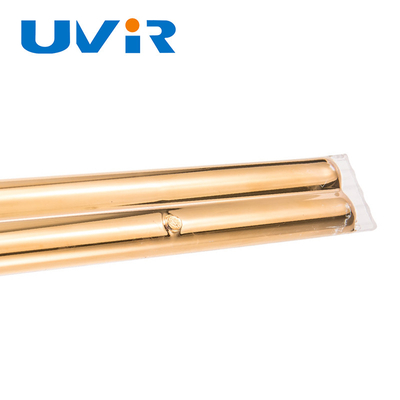

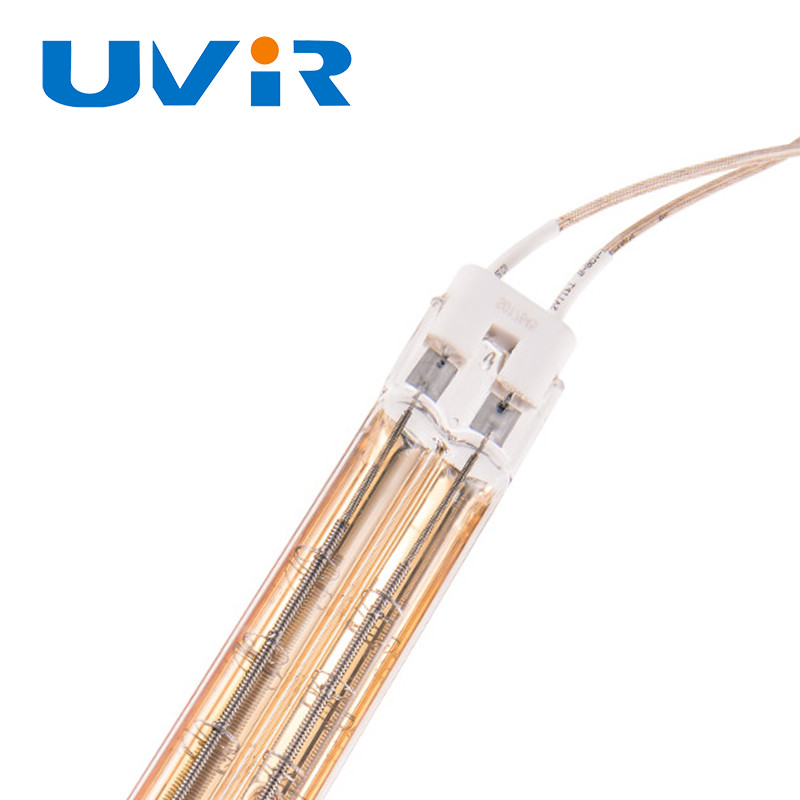

IRP013 6200W Fast Medium Wave Halogen Infrared Heating Lamps

Designed for 3D Printer Industry Applications

Product Specifications

Attribute	Value
Construction	B
Voltage	400V
Wattage	6200W
Heating Length	1060mm
Total Length	1160mm
Material	Quartz
Place of Origin	Guangdong, China
Energy Type	Fast Medium Wave
Size	15*33mm

Product Overview

High-performance halogen infrared heating lamps specifically designed for industrial 3D printing applications. These fast medium wave lamps provide efficient, targeted heating with rapid response times.

OEM Services

Our technical team can assist in selecting or designing the optimal heat lamp for your specific application requirements. We offer:

Custom sizing and specifications based on customer requirements
Prototype development from technical drawings
Multiple configuration options for voltage, wattage, length, base types, and cables
Universal burning position compatibility

Twin Tube Medium-Wave IR Lamps

Detailed Product Images

Technical Parameters

Infrared Lamp for Printing Machine

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
CD102/SM102	IRP013	SM102-FMW-B-3000	fast. med.	400	6200	1160	15*33	B	Drystar 3000 Heidelberg SM102/CD102 /SM10(post)

Industrial Applications

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
Printing Industry: Curing ink on cloth, drying inkjet-based CTP plates, drying printing products including banner machines

Product Advantages

Extended Service Life: Over 5,000 hours of operation
Rapid Response: Achieves full power output in 1-2 seconds
Energy Efficient: Gold and ceramic coating reflects up to 90% of infrared radiation
Environmentally Safe: Non-toxic with no contamination risk

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Voltage Warning: Never exceed maximum rated voltage. Operation at excess voltage (>110% of rated) may destroy the emitter.

Transportation
