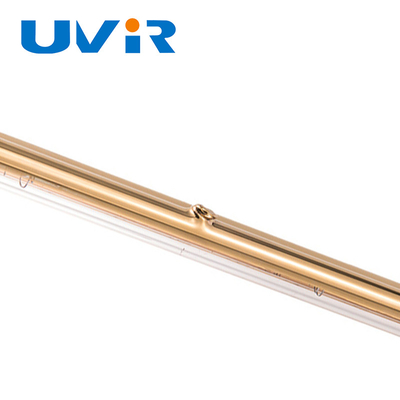

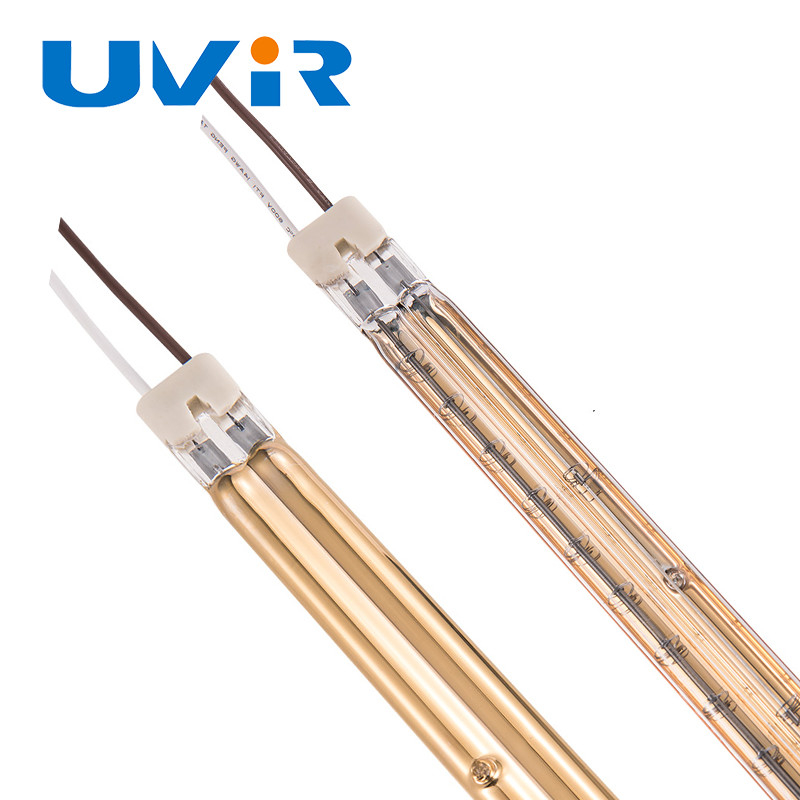

480V 4200W Medium Wave Infrared Heating Lamp for Printing Machines

480V 4200W Medium Wave Infrared Heating Lamp for Printing Machines

Brand Name:	UVIR
Model Number:	IRP013
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Construction:

Voltage:

480V

Watt:

4200W

Heating Length:

740mm

Total Length:

820mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Energy:

Fast-med.

Size:

15*33mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

4200w Infrared Heating Lamp

Medium Wave IRP Infrared Lamp

480v IRP Infrared Lamp For Printing

Product Description

Quick Start Medium Wave Infrared Heating Lamp Printing Machine Preheating And Baking

Product Specifications

Attribute	Value
Construction	B
Voltage	480V
Watt	4200W
Heating length	740mm
Total length	820mm
Material	Quartz
Place of Origin	Guangdong, China
Energy	fast-med.
Size	15*33mm

Product Overview

480V 4200W quick start medium wave infrared heating lamp designed for printing machine preheating and baking applications.

OEM Service

We provide expert consultation to help customers select the optimal heat lamp for specific applications. Our technical team can design custom lamps based on detailed technical specifications.

Custom sizes and types available
Samples provided based on customer drawings

Technical Parameters

Parameter	Value
Product name	Infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	480V
Voltage	4200W
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning position available

Product Details

Compatible Models

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997) Grafix Part:2130012
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997) Grafix Part:2130011
CD74/SM74/MAN 500	IRP008	SM74-SW-C	short wave	400	6950	900	11*23	H	Drystar-Heidelberg SM74/CD74(post 1997)
CD74/SM74/MAN 500	IRP009	SM74-FMW-B	fast. med.	480	4200	820	15*33	B	Grafix Heldelberg SM74 post 1997
CD74/SM74/MAN 500	IRP010	MANGX-FMW-B	fast. med.	415	4200	820	15*33	B	Grafix SHS MAN Roland 500
CD102/SM102	IRP011	SM102-SW-C	short wave	400	5400	1200	11*23	H	Drystar CD102/SM102
CD102/SM102	IRP012	SM102-FMW-B	fast. med.	180	6000	1120	15*33	B	Grafix SHS Heidelberg 102 post 1997
CD102/SM102	IRP013	SM102-FMW-B-3000	fast. med.	400	6200	1160	15*33	B	Drystar 3000 Heidelberg SM102/CD102 /SM10(post)
SM105XL	IRP014	SM105XL-FMW-B	fast. med.	400	6200	1160	15*33	B	Drystar Heidelberg SM105XL(past 2007)
XL75	IRP016	XL75	short wave	400	3500	900	11*23	B	XL75

Applications

Infrared Heating For Plastics Process:
- IR drying of coatings on plastics
- IR stretching or shrinking plastics
- IR Heating For Plastic Packaging
- IR heating for blow moulding of PET bottles
Infrared Heating For Printing Industry:
- IR curing ink on cloth
- IR drying for inkjet-based CTP plates
- IR drying of printing products, such as using in banners machine

Key Advantages

Long serving life: Over 5000 hours
Fast Reaction Time: About 1-2s to achieve full power output
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%, more energy saving, smaller footprint and better heating results
Environmentally Friendly: Nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated

Installation Guidelines

Turn off all electrical power to your lamps when installing or replacing them.

Rated Voltage

Infrared emitters should never be operated with more than the maximum rated voltage specified. Any longer operation at excess voltage (V > 110% of the rated voltage) may result in destruction of the infrared emitter.

Transport
