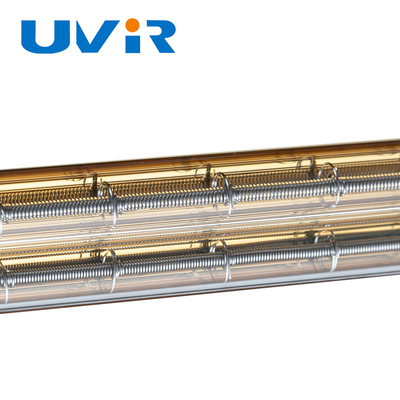

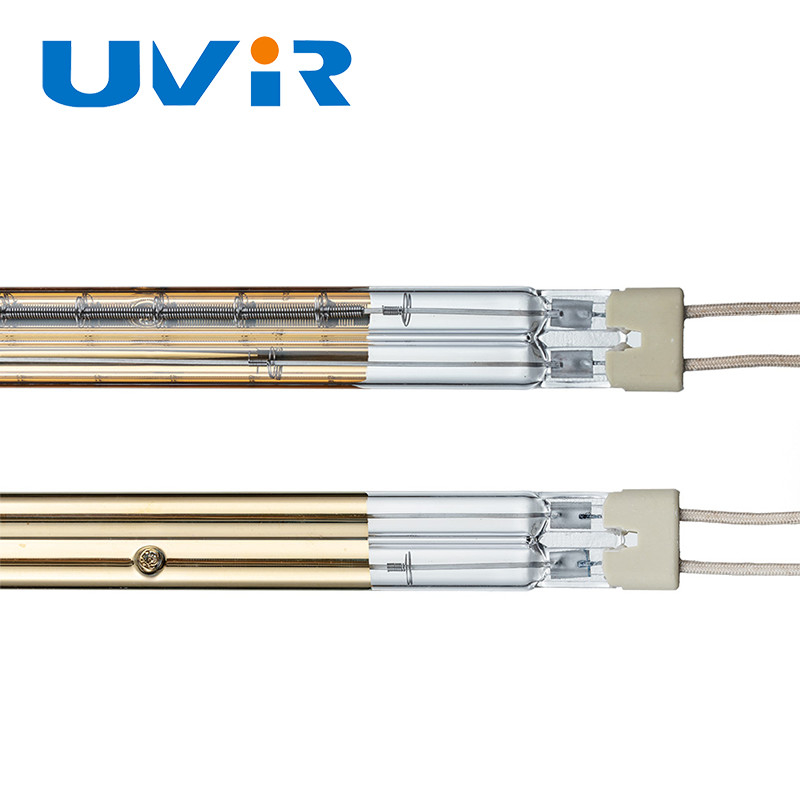

IRP008 Gold Plated Infrared Baking Lamp 6950W 400V

Name: IRP008 Gold Plated Infrared Baking Lamp 6950W 400V
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP008
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP008
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Reflector:

Gold

Total Length:

900mm

Voltage:

400V

Heating Length:

560mm

Power:

6950W

Material:

Quartz Tube

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

15x33mm Infrared Baking Lamp

Preheating IRP Infrared Lamp

Gold Plated IRP Infrared Lamp

Product Description

IRP008 Gold Plated Preheating Infrared Baking Lamp Heidelberg Heating Accessories

Product Specifications

Attribute	Value
Tube diameter	15*33mm
Reflector	Gold
Total length	900mm
Voltage	400V
Heating length	560mm
Power	6950W
Material	Quartz Tube
Place of Origin	Guangdong, China
Construction	H

Product Overview

IRP008 medium wave gold-plated infrared preheating baking lamp designed for Heidelberg printing machines. Our company specializes in manufacturing ultraviolet lamps, infrared lamps, germicidal lamps, xenon lamps, and related accessories, with custom solutions available.

Key Features

High efficiency heat transmission
Cost-effective operation
Rapid on/off response time
Precise heat focusing capability

Technical Parameters

Type	IRP008 infrared lamp for Printing Machine
Size	11*23mm
Coating	Gold
Power	400V
Voltage	6950W
Customization	Available for voltage, wattage, length, base, cables, and universal burning position

Main Components

Fused silica construction
Tungsten heating elements
Heating wire supports
End plate with ceramic components
Wire leads
Gold reflective layer
Proprietary gas composition

Compatible Models

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52

Applications

Infrared heating for plastics processing
IR drying of coatings on plastics
IR stretching or shrinking plastics
Plastic packaging heating
Blow moulding of PET bottles
Printing industry applications
Ink curing on cloth
Drying for inkjet-based CTP plates
Print product drying (e.g., banners)

Infrared Heating Benefits

Precise heating without surface corrosion
Quick, controllable heating cycles
Clean, odorless operation
No environmental contamination

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Important: Infrared emitters should never be operated above the maximum rated voltage (V > 110% of rated voltage) to prevent damage.
