IRP007 Medium Wave Infrared Heating Lamp 415V 2500W for Heidelberg Printing

Name: IRP007 Medium Wave Infrared Heating Lamp 415V 2500W for Heidelberg Printing
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP007
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP007
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Coating:

Gold

Heating Length:

1020mm

Voltage:

415V

Watt:

2500W

Total Length:

1100mm

Energy:

Med.wave

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1020mm Infrared Heating Lamp Tube

15x33mm Infrared Heating Lamp Tube

Heidelberg IRP Infrared Lamp For Printing

Product Description

IRP007 Medium Wave Infrared Heating Lamp Tube for Heidelberg Printing Machine Preheating

Product Specifications

Attribute	Value
Tube diameter	15*33mm
Coating	Gold
Heating length	1020mm
Voltage	415V
Wattage	2500W
Total length	1100mm
Energy	Medium wave
Place of Origin	Guangdong, China
Construction	B

Premium Features

Carbon fiber heat lamp: High-quality imported carbon fiber filament with smooth finish and maximum longevity
Quartz glass tube: High-temperature resistant quartz glass with 5000+ hour lifespan, non-toxic and environmentally safe

Technical Parameters

Type	Infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	415V
Voltage	2500W
Customization	Available in various voltages, wattages, lengths, bases, and cables with universal burning position

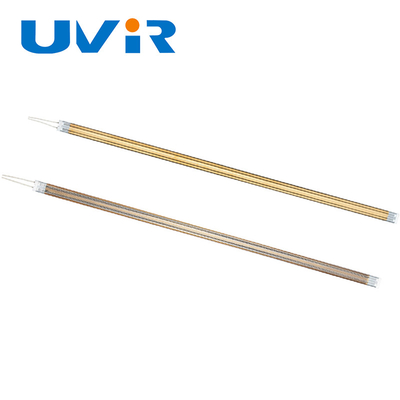

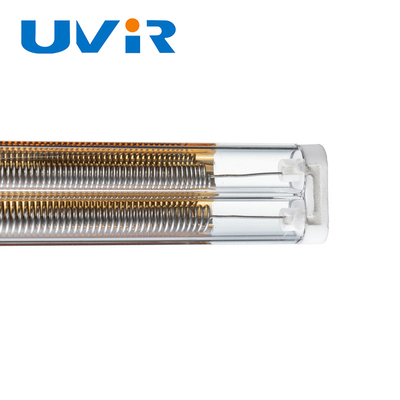

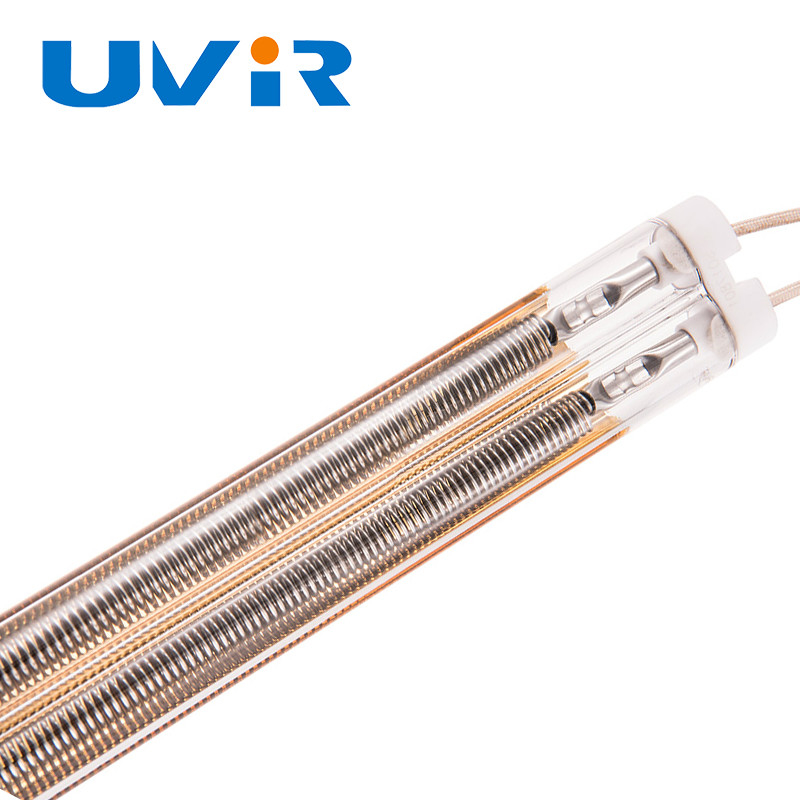

Product Images

Product Details

Combining premium transparent quartz tube materials with halogen principles to maximize infrared radiation density for optimal heating performance.

Special semi-plated white coating using quartz powder technology reflects over 90% of infrared heat in the desired direction, minimizing energy loss.

Tungsten wire heating system creates infrared radiation through gas heating in the quartz tube. Features high thermal efficiency, rapid heating, energy savings, and extended lifespan.

Compatible Models

Grafix Part: 2130011 for Heidelberg SM102 (pre-1997)

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997)
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997)

Industrial Applications

Plastics Processing: IR drying of plastic coatings, stretching/shrinking plastics, packaging applications, PET bottle blow molding
Printing Industry: Ink curing on fabrics, drying for inkjet-based CTP plates, printing product drying (including banner machines)

Installation Guidelines

Always turn off electrical power before installing or replacing lamps.

Voltage Warning: Never exceed maximum rated voltage (V > 110% of rated voltage may destroy the emitter).

Transportation

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 5-7 days, mass production about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 2 pieces per model.

Q4. How do you ship the goods?

A: Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.

Q5. How to proceed with an order?

A: 1) Specify requirements 2) Receive quote 3) Confirm samples/deposit 4) Production begins

Q6. How to deal with faulty products?

A: Products undergo strict quality control. During warranty period, replacements ship with next order.
