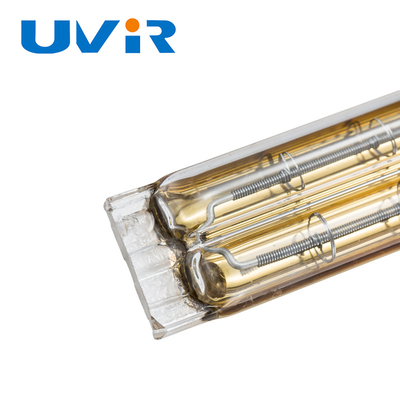

Gold Plated Halogen Infrared Heating Lamp Tube Edge Sealing Machine Preheating

Short wave gold plated halogen infrared heating lamp tube edge sealing machine preheating lamp





Short Wave IR Lamp Advantages

---

1. The wavelength is controlled in the range of 0.76 ~ 1.4 m, the user can choose different wavelength heating tubes according to the material and physical characteristics of the heated workpieces.



2. The heating tubes have high thermal efficiency, the infrared radiation efficiency can reach over 86% in a certain wavelength and direction. The thermal inertia of the infrared radiant heating tube is very small, it can reach about 50% of the rated power in 1 ~ 2 seconds after electrification, and can run at full power in about 2 ~ 4 seconds, heating up and cooling down quickly and accurately.



3. The heating tube has a small volume and a large power, the rated power of a single heating tube can be more than 6000W.



4. According to the needs of customers, a gold-containing directional reflecting layer can be sprayed on certain parts of the outer wall of the heating tube, which can greatly improve the heating efficiency, lower the temperature of the reflector.



5. high-quality quartz glass tubes and heating wire materials with professional processing technology, resulting in the long service life of infrared lamp tubes, the short-wave tube has a service life of more than 5000 hours.



6. All kinds of heating equipment made up of infrared radiation heating tube can realize automatic temperature control through temperature controller, thyristor AC power regulator or voltage regulator. Because of its small thermal inertia, the temperature control is quick and accurate.





Product description

---

Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.

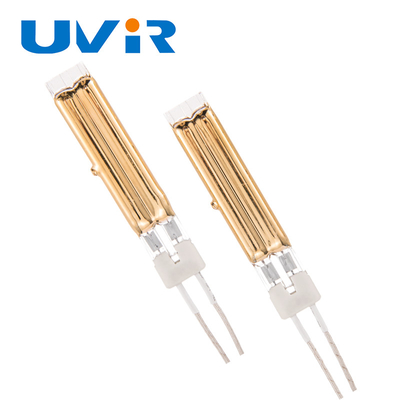

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	400-6000W
Voltage	55-450V
OEM/ODM	many types of voltage,wattage,length,base,cables,universal burning position is available





Main components of a twin tube infrared lamp:

1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.







Product details

---



Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps

Voltage V	Wattage W	Twin Tube	Total Length	Heated Length	Disgn Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030
115	900	11x23	170	115	B	THG100156	THW100030	THC100031
115	1000	11x23	192	127	B	THG100157	THW100031	THC100032
115	1100	11x23	205	140	B	THG100158	THW100032	THC100033
120	700	11x23	140	89	B	THG100159	THW100033	THC100034
120	800	11x23	167	102	B	THG100160	THW100034	THC100035
120	1180	11x23	250	150	B	THG100161	THW100035	THC100036
230	1200	11x23	405	340	B	THG100162	THW100036	THC100037
230	1500	11x23	300	200	B	THG100163	THW100037	THC100038
230	2350	11x23	410	355	B	THG100164	THW100038	THC100039
230	3000	11x23	650	500	C	THG100165	THW100039	THC100040
230	500	15x33	510	500	B	THG100114	THW100061	THC100061
400	4800	15x33	500	800	B	THG100141	THW100062	THC100062
400	6200	15x33	1100	1030	B	THG100002	THW100063	THC100063
400	15720	15x33	850	1334	H	THG100186	THW100064	THC100064
480	6000	15x33	1550	1000	B	THG100140	THW100065	THC100065

If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!





Product Coding Rule Table







FAQ

---

1. Are you a manufacturer or trading company?
We are a professional manufacturer.



2. What's the lamp you can do ?
Our main Products is :
Short wave infrared lamp
Medium wave infrared lamp
Customized special shape infrared lamp
All the lamps we can do single and twin tube ,the filament is halogen and carbon filber.



3. If I want to buy a lamp, what parameters need to provide?
Input Voltage
Lamp Wattage
Total Length
Heated Length
Tube Diameter
Reflector
Lead wire



4. What is your company`s payment terms?
We accept: T/T,Western Union,MoneyGram,Paypal,Trade Assurance



5. How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.



6. Where is your factory located?How can i visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!





Transport

---



Lamp installation precautions

---

1.Turn off all electrical power to your lamps when stalling or replacing them.



2.Infrared emitters should never be operated with more than the maximum rated voltage specifed.
Any longer operation at excess voltage(V>1 10% of the rated voltage) may result in destruction of
the infrared emitter.



3.Installation
