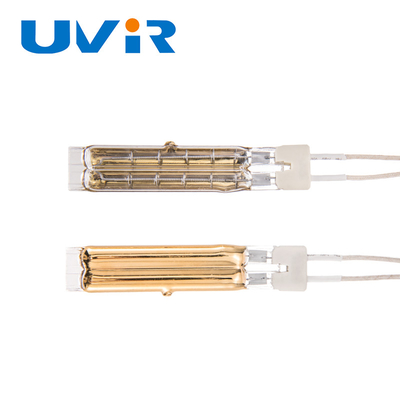

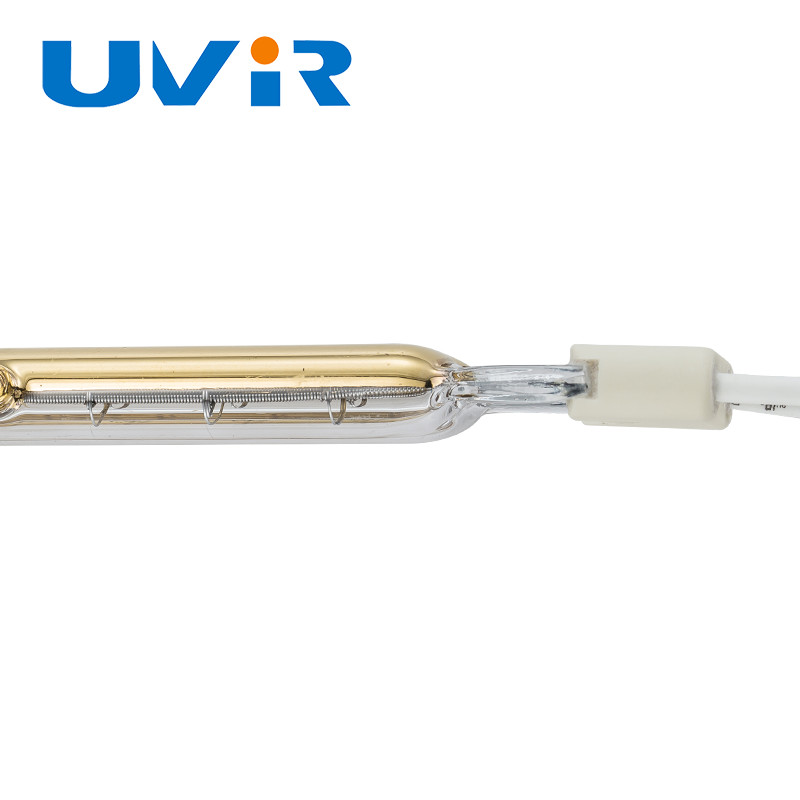

TL365 1800W Quartz Infrared Heater for Edge Banding Machines

TL365 1800W Quartz Infrared Heater for Edge Banding Machines

Brand Name:	UVIR
Model Number:	THG100888
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Type:

Quartz Infrared Heater

Material:

Quartz Glass

Warrant Time:

5000 Hours

Voltage:

230V

Power:

1800W

Total Length:

365mm

Heating Length:

300mm

Pipe Diameter:

11x23mm

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

11x23mm Infrared Baking Lamp

Gluing Heating Infrared Baking Lamp

1800W Twin Tube Infrared Lamps

Product Description

TL365 1800W Edge Banding Machine Infrared Baking Lamp Gluing Heating

Product Specifications

Attribute	Value
Type	Quartz Infrared Heater
Material	Quartz Glass
Warrant Time	5000 Hours
Voltage	230V
Power	1800W
Total Length	365mm
Heating length	300mm
Pipe diameter	11x23mm
Base	TC01

Infrared Heating Applications

Automotive Industry
Food Industry Browning
Glass Industry Screen Printing
Plastics Industry Thermoforming, PET bottles, Welding of Plastics
Semiconductor Industry
Textile Industry
Ultrapure Water Processing
Wood Industry

Main Components of Twin Tube Infrared Lamp

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (Shown: gold layer)
Proprietary gas composition

Standard Cross-Section Dimensions for Industrial IR Twin Tubes (mm)

The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)

Twin Twin Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	230V
Voltage	1800W
OEM/ODM	Many types of voltage, wattage, length, base, cables available with universal burning position

Stock and Standard (Non-Stock) Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030

If the parameter is not suitable for you, please contact us. We have a professional team that will provide technical knowledge and drawings for custom solutions.

Product Coding Rule Table

Our Advantages

Infrared heater matched to materials can provide energy savings up to 50% over other technologies
Very good and stable quality
24-hour customer support
CE, ISO9001, RoHS, SGS certified
Low MOQ - 1 piece available for sample checking

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours
During warranty, any non-man-made quality issues will be replaced immediately at no charge

Frequently Asked Questions

Q1. Can all the products be customized?

A: We are the factory manufacturing IR lamps, UV lamps, and IR accessories. All products can be customized to your specifications.

Q2. What is the outer package of the product?

A: Carton packing or wooden packing options available.

Q3. Processing cycle?

A: Some products are in stock. Custom orders typically require about 15 days for production.

Q4. Order quantity?

A: Minimum order quantity for customized IR lamps is usually 2 pieces.
