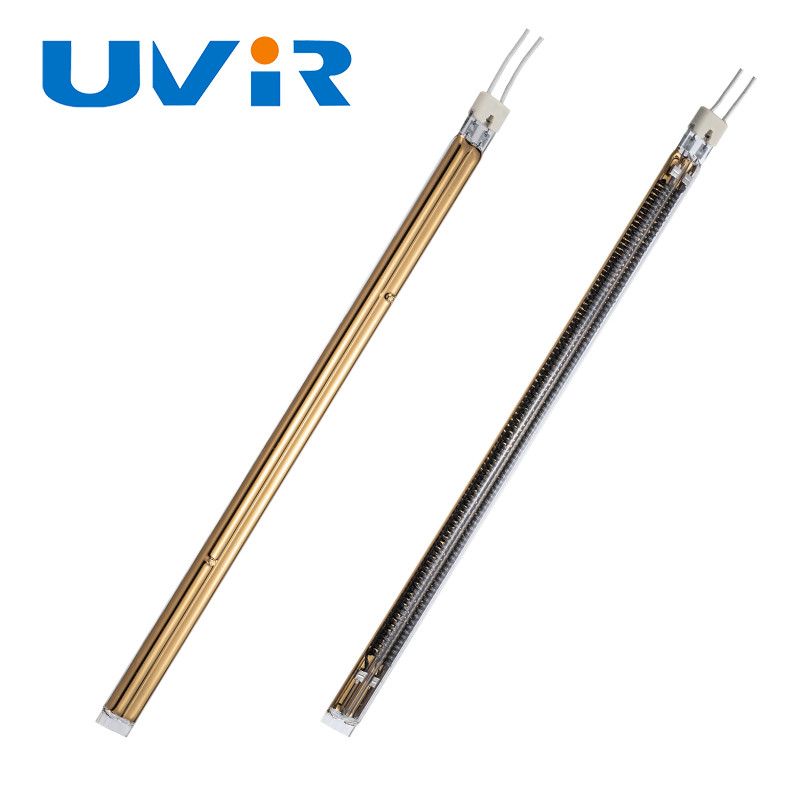

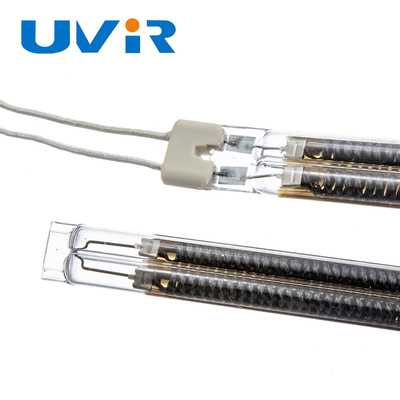

3500W Gold Coated Twin Tube Carbon Fiber IR Heating Lamp

3500W Gold Coated Twin Tube Carbon Fiber IR Heating Lamp

Brand Name:	UVIR
Model Number:	TCG100022
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

Twin Tube Carbon Fiber IR Heating Lamp

Material:

Carbon Fiber & Glass Tube

Power:

3500W

Coating:

Gold Coating

Application:

Glass Fiber Products

Total Length:

1140mm

Heating Length:

1010mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Halogen Carbon Infrared Heating Lamp

1140mm Infrared Heating Lamp

3500W Carbon Fiber Infrared Heating Lamp

Product Description

Double / Straight Tube Halogen Carbon Infrared Heating Lamp 4155V 3500W

Product Specifications

Name	Twin tube Carbon Fiber IR heating lamp
Material	Carbon fiber & glass tube
Power	3500W
Coating	Gold Coating
Application	Glass Fiber Products
Total length	1140mm
Heating length	1010mm

Product Overview

The 34155V 3500W Double-tube straight tube halogen carbon infrared heating lamp delivers efficient, targeted heating for industrial applications.

Key Features

For emitters with high watt density or surface temperatures above 800°C, we recommend ceramic coating reflectors with temperature resistance up to 1000°C
Available with 180° (half-tube), 270° coating, or custom specified degrees
Provides energy savings up to 50% compared to other heating technologies
Professional infrared technology delivers precise heating with optimal wavelength

Infrared Technology

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, just beyond visible red light. While invisible, IR shares properties with light - traveling at light speed, capable of being directed/focused, and effective in vacuum environments.

When absorbed by objects, IR radiation generates internal heat by causing atomic vibration, raising temperature without requiring air or water as a heating medium.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer.

What types of lamps do you produce?

Our main products include:

Short wave infrared lamps
Medium wave infrared lamps
Custom shaped infrared lamps
Available in single and twin tube configurations with halogen or carbon fiber filaments

What specifications are needed when ordering?

Input Voltage
Lamp Wattage
Total Length
Heated Length
Tube Diameter
Reflector type
Lead wire specifications

What payment methods do you accept?

We accept: T/T, Western Union, MoneyGram, PayPal, and Trade Assurance.
