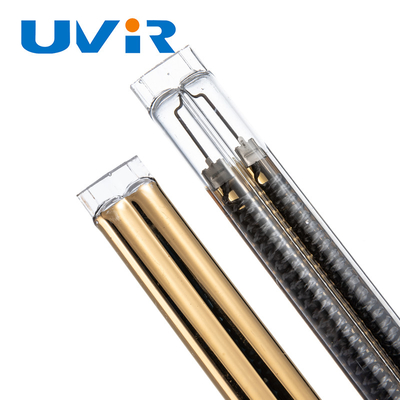

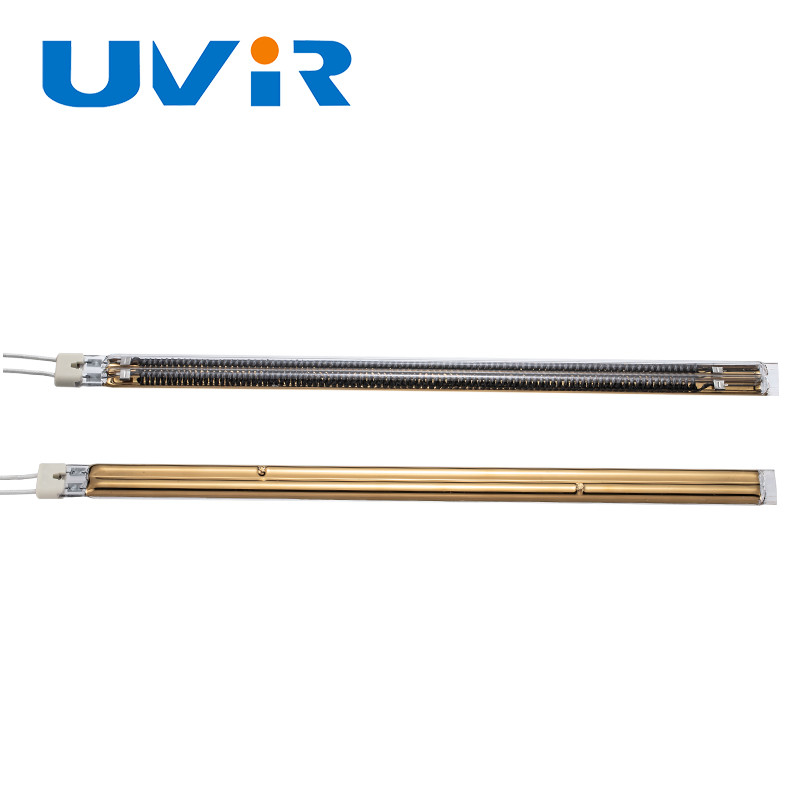

900W Twin Tube Carbon Infrared Heating Lamp 5000-20000H

900W Twin Tube Carbon Infrared Heating Lamp 5000-20000H

Brand Name:	UVIR
Model Number:	TMG100019
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Carbon Fiber Infrared Heating Lamp

Working Time (hours):

5000-20000H

Shape:

Twin Tube

Power:

900w

Warranty(Year):

1-Year

Place Of Origin:

China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Carbon Infrared Heating Tube

900w Infrared Heating Tube

Semi Gold Heating Emitters

Product Description

Semi Gold Double Tube Carbon Infrared Heating Tube Medium Wave

Product Specifications

Attribute	Value
Product Name	Carbon fiber infrared heating lamp
Working Time	5000-20000 hours
Shape	Twin tube
Power	900W
Warranty	1-Year
Place of Origin	China

Product Description

Semi-gold double tube medium wave carbon infrared heating tube heating emitters

Customized Ultraviolet Lamps

Almost everything about the lamp can be customized, including length and diameter, power, fitting sockets, and ceramic bases. Our proprietary ceramic bases are resistant to UVC radiation, ozone, heat and moisture and have a high-quality appearance. Other base materials are available upon request.

Key Advantages

Versatility of heat source: Wide range of lamp lengths and power available (Voltage: 55-480V; Watts: 200-6000W; Length: 60-3000mm)
Instant heat: More than 90% emission within 1 second
Clean: No byproducts, no pollution
Safe: Quartz envelope, heat shock resistant
Economical: More than 85% of consumed energy transmitted into infrared heat
Fully dimmable: Fully controllable accurately (0% to 100%)
Possibility to put people sensor: On/Off switches do not affect life time of the lamps
Long life: More than 5000 hours
Heat can be focused: Same optical properties as light, can be directed by reflectors
Compact heater: Compact heat sources, narrow diameter of lamps

Filament Structure of Carbon Infrared Emitters

Infrared Lamps for Industrial Applications

Support Zone	Application	Suggested IR Lamp Type
Plastics	• Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping	Half white reflector infrared lamp
Paper	• Drying • Copying • Offset printing • Ink jet • Serigraphy	Clear short wave heat lamp / Half white heat lamp
Food	• Food catering • Food processing	Ruby heat lamp / Round halogen oven lamp
Wood & Composites	• Drying • Curing • Powder coating	White reflector infrared heat lamp / Gold reflector heat lamp
Shoes & Fabrics	• Drying • Curing	White reflector/gold reflector/clear/ruby
Metal	• Strapping • Coil coating • Powder coating	Gold reflector heat lamp / Twin tube IR lamp
Paint	• Automobile repair shops • Powder coating	Ruby jacked heat lamp / Reflector lamp

Frequently Asked Questions

What information should I provide when enquiring?

Provide lamp's type, total length, heating length, wattage, voltage, ceramic end connection, lead length in mm (standard lead wire length 300 mm), coating available (gold coating / ceramic coating), quantity. If it's a new project or your first time using infrared emitters, describe your application details including object material, required working temperature, required time, and heating size.

Could you supply clamps for lamp installing?

Yes, we provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely by us.

Have an unusual design?

Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
