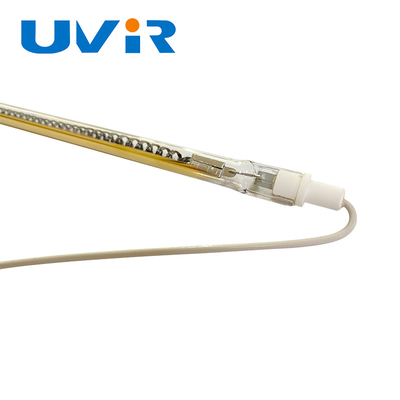

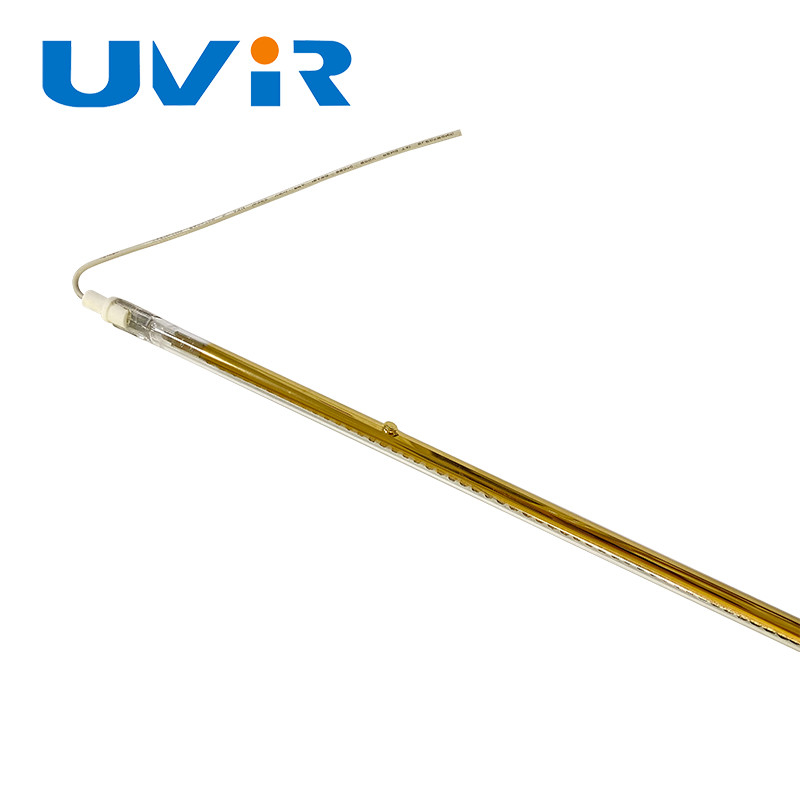

RS Carbon Fiber Quartz Heater Tube 1600W Gold Infrared Lamp

RS Carbon Fiber Quartz Heater Tube 1600W Gold Infrared Lamp

Brand Name:	UVIR
Model Number:	SCG100032
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Base Type:

Warranty(Year):

1 Year

Color:

Gold

Product Name:

Single Tube Carbon IR Emitters

Filament Temperature:

1100-2600°C

Application:

Infrared Heater, Painting Drying

Filament Type:

Carbon

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

OEM Quartz Heater Tube

Carbon Fiber Quartz Heater Tube

Single Tube Infrared Heating Lamp

Product Description

RS Carbon Fiber Quartz Heater Tube, Single Tube Infrared Heating Lamp

Product Specifications

Attribute	Value
Base Type	RS
Warranty	1 Year
Color	Gold
Product Name	Single Tube Carbon IR Emitters
Filament Temperature	1100-2600°C
Application	Infrared heater, Painting drying
Filament Type	Carbon
OEM/ODM	Available in many types of voltage, wattage, length, base, cables, universal burning position

Product Overview

Benefits of Infrared Heating Lamp

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimized power for maximum longevity

Quartz Glass Tube

High-quality high-temperature quartz glass
Long service life: over 5000 hours
Nontoxic with no peculiar smell, no risk of contamination

Technical Details

Product Name	Carbon IR Heating Lamp
Heating Length	500mm (Customizable)
Voltage	380V (Customizable)
Wattage	1600W (Customizable)
Base	RS
Material	Quartz Tube
Reflector	Gold
OEM/ODM	Available in many configurations

Key Features

High Temperature Heating: Tungsten wire heats the gas in the quartz tube under AC voltage, producing efficient infrared radiation.

High Thermal Efficiency: Features excellent quality, high power density, rapid heating, and energy savings with long life.

Infrared wavelengths are in the range of 750nm to 1mm electromagnetic spectrum.

Application Scenarios

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
Photovoltaic Industry: String soldering, preheating for sputtering processes
Printing Industry: Curing ink on cloth, drying printing products
Food & Chemical Industry: Disinfection, food heating, herbal medicine processing
Glass Industry: Preheating car glass, drying coatings, manufacturing laminated glass
Textiles Industry: Drying coatings, laminating fabrics
Electronic Industry: Coatings on components, component aging

Frequently Asked Questions

Q1. Can all the products be customized?

A: We are the factory specializing in IR lamps, UV lamps, and accessories. All products can be made to your specifications.

Q2. What is the outer package of the product?

A: Available in carton packing or wooden packing.

Q3. What is the processing cycle?

A: Some products are in stock. Custom orders typically require about 15 days.

Q4. What is the minimum order quantity?

A: Customized IR lamps typically have a minimum order of 2 pieces.
