Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | - |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Power: | 100-7600W | Shape: | RING TUBE |
|---|---|---|---|
| Voltage: | 24-575V | Tube Diameter: | 8-14mm |
| IR Diameter: | 39-606mm | Material: | Quartz Tube |
| Place Of Origin: | Guangdong, China | ||
| Highlight: | Ring Quartz Infrared Heating Lamp,7600W Quartz Infrared Heating Lamp,Gold Coating Heater Lamp |
||

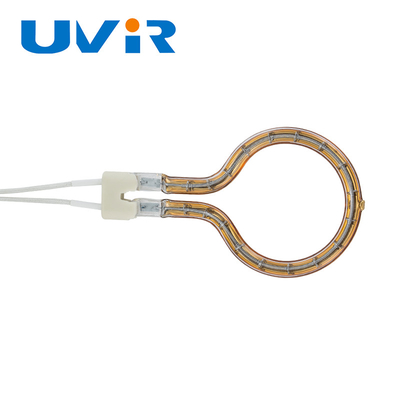

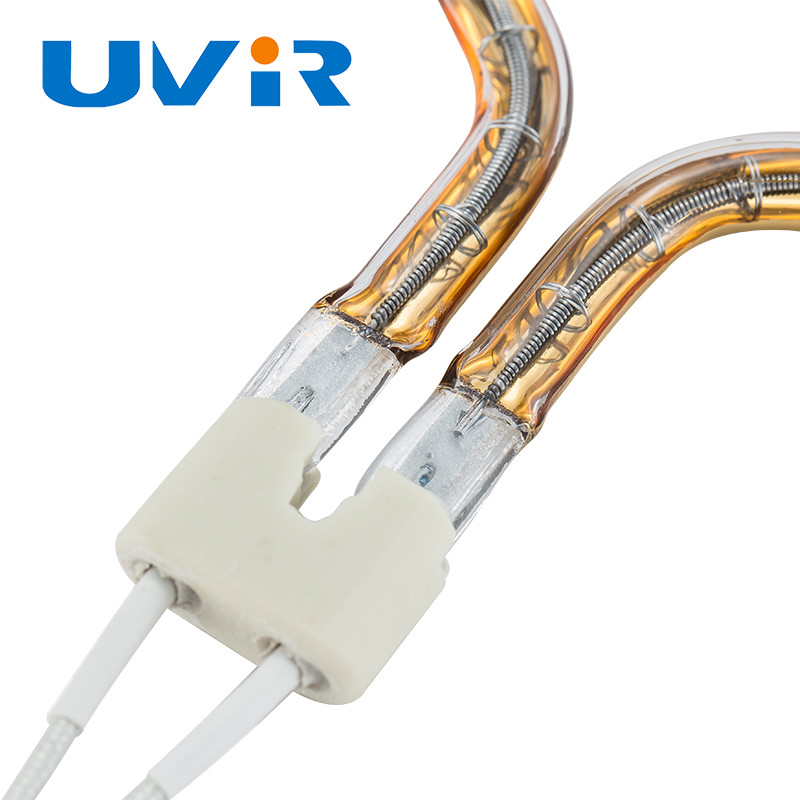

Ring Shape tube quartz Infrared Heating Lamp gold coating heater lamp 100-7600W
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Product information
| Pipe diameter | 8-14mm |
| Diameter | 39-606mm |
| Voltage | 24-575V |
| Power | 100-7600W |
| Wavelength | Short wave, medium wave, long wave |
| Coating | Gold/White/Clear |
| Shape | Ring, oval, omega, etc., can be customized according to customer requirements |
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
Product Coding Rule Table:
Heating Tube for Industrial application
| Support(zone) | Application | Suggest the ir lamp type |
| Plastics | • Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping |
Half white reflector infrared lamp |
| Paper | • Drying • Copying • Offset printing • Ink jet • Serigraphy |
Clear short wave heat lamp Half white heat lamp |
| Food | • Food catering • Food processing |
Ruby heat lamp round halogen oven lamp |
| Wood & Composites | • Drying • Curing • Powder coating | white reflecter infrared heat lamp Gold relfetcer heat lamp |
| Shoes & Fabrics | • Drying • Curing |
White relfecter/gold reflecter/clear/ruby |
| Metal | • Strapping • Coil coating • Powder coating |
Gold relfetcer heat lamp/twin tube ir lamp |
| Paint | • Automobile repair shops • Powder coating | Ruby jacked heat lamp/relfecter lamp |
| Animal care | • Breeding and rearing of animals • Veterinary clinics, zoos,pet shops and beauty parlors | Ruby ir lamp |
SAFETY PRECAUTIONS
(1)There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
(2)The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
(3)Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
FAQ
1.Are you a manufacturer or trading company?
We are a professional manufacturer.
2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
4. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
