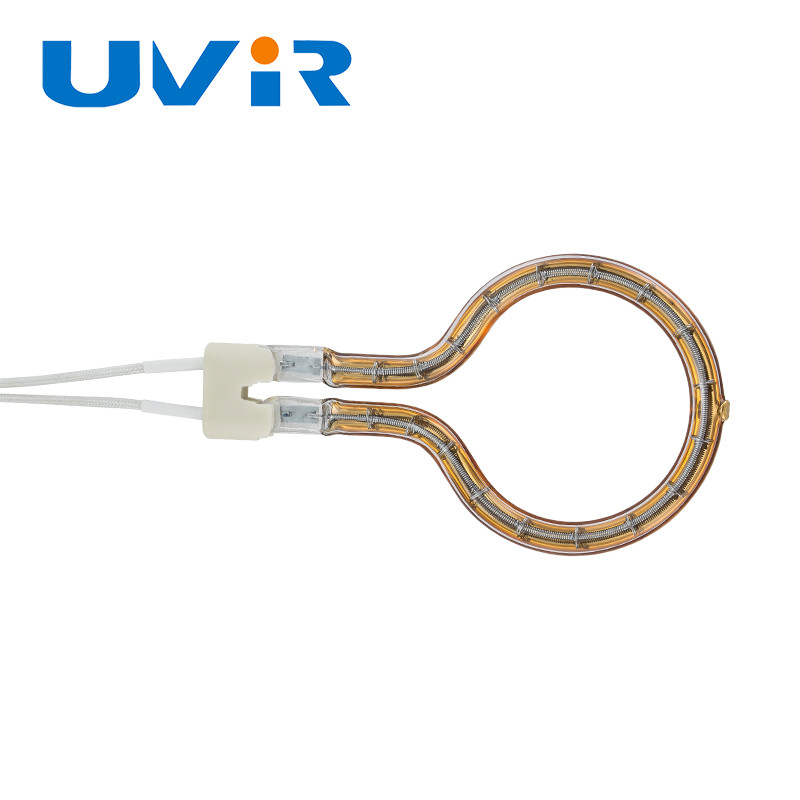

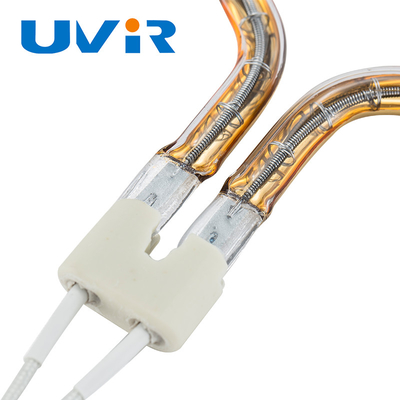

Ring Quartz Infrared Heating Lamp 100-7600W Gold Coated

Ring Quartz Infrared Heating Lamp 100-7600W Gold Coated

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Power:

100-7600W

Shape:

RING TUBE

Voltage:

24-575V

Tube Diameter:

8-14mm

IR Diameter:

39-606mm

Material:

Quartz Tube

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Ring Quartz Infrared Heating Lamp

7600W Quartz Infrared Heating Lamp

Gold Coating Heater Lamp

Product Description

Ring Shape Tube Quartz Infrared Heating Lamp, Gold Coating Heater Lamp 100-7600W

Product Specifications

Power	100-7600W
Shape	RING TUBE
Voltage	24-575V
Tube diameter	8-14mm
IR diameter	39-606mm
Material	Quartz Tube
Place of Origin	Guangdong, China

Product Overview

Our ring-shaped quartz infrared heating lamps with gold coating (100-7600W) provide energy savings of up to 50% compared to conventional heating technologies. The professional infrared technology delivers precise heating exactly where needed, with optimal wavelength matching for your specific application.

OEM Services

Our technical team can advise on selecting the ideal heat lamp for your application and design custom solutions based on your specific technical requirements. We manufacture various sizes and types of heat lamps according to customer specifications.

Technical Parameters

Pipe diameter: 8-14mm
Diameter: 39-606mm
Voltage: 24-575V
Power: 100-7600W
Wavelength options: Short wave, medium wave, long wave
Coating options: Gold/White/Clear
Shapes: Ring, oval, omega, and custom designs available

Standard Short-Wave Ring Lamps

Voltage (V)	Power (W)	Tube Ø (mm)	IR Ø (mm)	Angle (°)	Clear	Gold	Gold	Gold
115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065

Industrial Applications

Industry	Applications	Recommended Lamp Type
Plastics	Bottle blowing, Thermoforming, Plastic forming, Welding, Serigraphy, Strapping	Half white reflector infrared lamp
Paper	Drying, Copying, Offset printing, Ink jet, Serigraphy	Clear short wave heat lamp / Half white heat lamp

Safety Precautions

Install in environments free from flammable, explosive, corrosive gases and conductive dust
Properly position and secure heating pipes using provided metal or ceramic clamps
Handle quartz glass components carefully to avoid mechanical damage
Implement necessary protective measures based on the heated object's specific conditions

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer.

Could you supply clamps for lamp installing?

Yes, we provide mounting clamps with purchased lamps at no additional cost.

Do you accommodate unusual designs?

We specialize in custom designs. Send us drawings, sketches, or samples for quotation.

What information should I provide when inquiring?

Please include: Lamp type, dimensions, wattage, voltage, ceramic end connections, lead length, coating preference, quantity, and any available drawings or pictures.
