Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | - |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Lamp Power(W):: | 100-7600W | Color :: | Gold Reflector |
|---|---|---|---|
| Warranty :: | 24-575V | Tube Diameter:: | 8-14mm |
| Respend Time :: | 1-2 | Cable Wire:: | Teflen / Textile Wire / High Temperature Resistant Wire |
| Filament Temperature:: | 1100-2600 ℃ | ||
| Highlight: | Tube Ring Infrared Lamps,8mm Infrared Heat Lamp Tube,14mm Infrared Heat Lamp Tube |
||

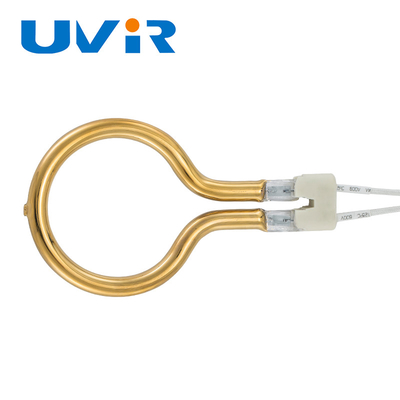

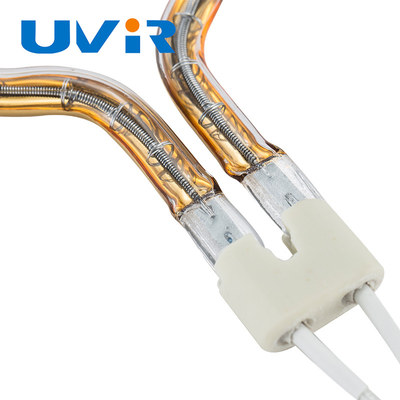

Quartz Ring tube IR Lamps , Infrared Heater Lamp Tube 8-14mm diameter
Short Wave IR Lamp Advantages
(1)The wavelength is controlled in the range of 0.76 ~ 1.4 m, the user can choose different wavelength heating tubes according to the material and physical characteristics of the heated workpieces.
(2) The heating tubes have high thermal efficiency, the infrared radiation efficiency can reach over 86% in a certain wavelength and direction. The thermal inertia of the infrared radiant heating tube is very small, it can reach about 50% of the rated power in 1 ~ 2 seconds after electrification, and can run at full power in about 2 ~ 4 seconds, heating up and cooling down quickly and accurately.
(3)The heating tube has a small volume and a large power, the rated power of a single heating tube can be more than 6000W.
Product information:
| Type: |
Ring tube ir lamp |
| Voltage: | 24-575V |
| IR diameters: | 39-606mm |
| Power: | 100-7600W |
| Lamp tube material: | 8-14mm |
| Angle of use: | Horizontal/vertical |
Ring Tube IR lamps
(1)Ring diameter from 39 up to 600 mm
(2)Voltage from 24 to 575 V
(3)Short,Medium and Long-Wave IR designs
(4)Availability in various tube colors
(5)The tube diameter can be from 8-14 mm.
(6) Standard stock itens for immediate delivery
(7) Custom and OEM designs are available
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Customized Service
1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
After-sale Service
1. Warranty Time of Short wave Infrared heat lamp: 5,000 hours
2. During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
1. Can I get some samples?
We are happy to offer samples for you to check and test.
2. Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
3. What about the lead time?
15 days after receive your payment.
4. How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
5. About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.
6. About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
