Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector

Name

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lamp Power(W)::

100-7600W

Color ::

Gold Reflector

Warranty ::

24-575V

Tube Diameter::

8-14mm

Respend Time ::

1-2

Cable Wire::

Teflen / Textile Wire / High Temperature Resistant Wire

Filament Temperature::

1100-2600 ℃

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Tube Ring Infrared Lamps

,

8mm Infrared Heat Lamp Tube

,

14mm Infrared Heat Lamp Tube

Product Description

Quartz Tube Ring Infrared Lamps

Infrared Heat Lamp Tube 8-14mm Diameter

Product Specifications

Lamp Power (W)	100-7600W
Color	Gold Reflector
Warranty	24-575V
Tube diameter	8-14mm
Response Time	1-2 seconds
Cable Wire	Teflen / textile wire / High Temperature Resistant wire
Filament Temperature	1100-2600 ℃

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76 ~ 1.4 μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths
Rapid response time: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with large power capacity - single tube can exceed 6000W

Technical Details

Type	Ring tube IR lamp
Voltage	24-575V
IR diameters	39-606mm
Power	100-7600W
Lamp tube material	8-14mm
Angle of use	Horizontal/vertical

Ring Tube IR Lamps Features

Ring diameter from 39mm up to 600mm
Voltage range from 24 to 575V
Available in Short, Medium and Long-Wave IR designs
Multiple tube color options available
Standard stock items for immediate delivery
Custom and OEM designs available

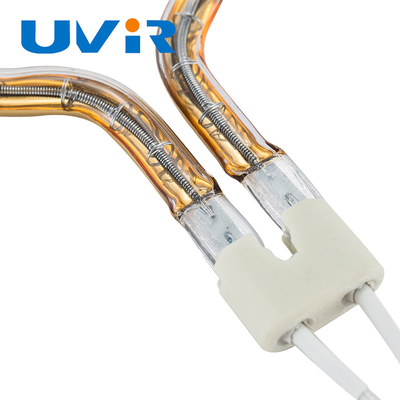

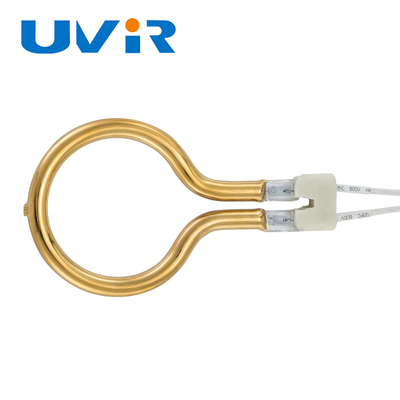

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector 0

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector 1

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector 2

Standard Short-Wave Ring Lamps Specifications

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector 3

Customized Service

All infrared heater lamps customized to your specific requirements
Professional technicians provide one-to-one service
Can produce single unit for quality testing
OEM services available including logo printing

After-sale Service

Warranty: 5,000 hours for Short wave Infrared heat lamp
Non-man-made quality issues during warranty period will be replaced immediately at no charge

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1pc for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." We maintain strict QC from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?

We can provide right heat solution and offer OEM services, including logo printing as per your requirements.

About after-sale service?

Any confirmed quality issues will be compensated.

Quartz Ring Infrared Lamps 8-14mm Diameter 100-7600W Gold Reflector 4
