Gold Coating Ring Infrared Lamp with 24-575V Voltage and Customizable Design for Immediate Delivery

Gold Coating Ring Infrared Lamp with 24-575V Voltage and Customizable Design for Immediate Delivery

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Voltage:

24-575V

Coating:

Gold

Tube Diameter:

8-14mm

Filament Type:

Tungsten

Power:

100-7600W

Material:

Quartz Tube

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coating Infrared Heater Lamp

Quartz Circular Infrared Heater Lamp

Single Tube Quartz IR Lamp

Product Description

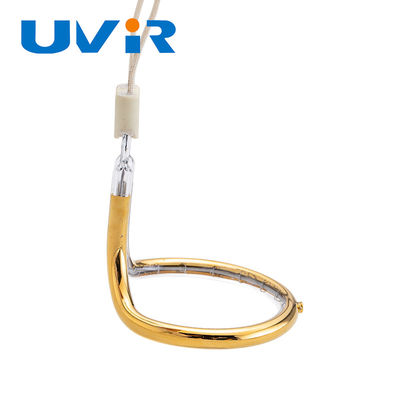

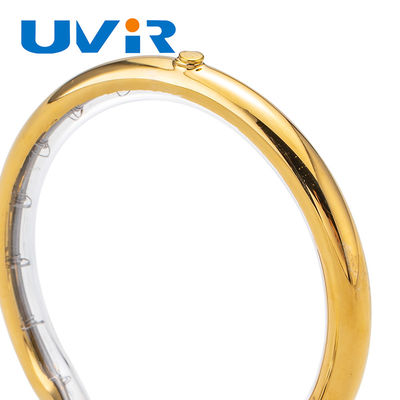

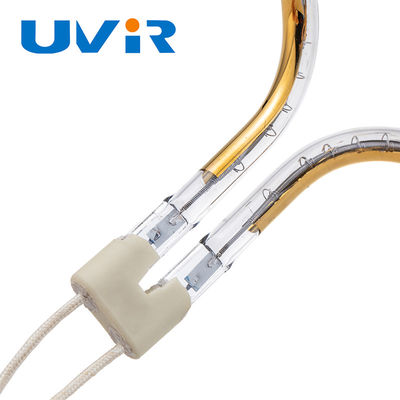

Quartz Circular Infrared Heater Lamp Gold Coating Single Tube Heating Accessories

IR lamp quartz circular infrared heater lamp gold coating single tube Heating accessories

Ring tube Infrared lamps

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Availability in various tube colors
The tube diameter can be from 8-14 mm
Standard stock items for immediate delivery
Custom and OEM designs are available

Product Details

Product name	Ring tube infrared lamp
Shape	Ring
Voltage	24-575V
Wattage	100-7600W
Coating	Gold

QUICK CONNECT RING 39 mm
Stock and Standard (Non-Stock) Ring Short-Wave 0 =39 mm Quick Connect Lamps

#	Voltage (V)	Wattage (W)	Tube Diameter (mm)	Model 1	Model 2	Model 3	Model 4
1	115	200	8	RHC800300	RHG800300	RHG800306	RHG800312
2	115	200	10	RHC800301	RHG800301	RHG800307	RHG800313
3	115	450	8	RHC800302	RHG800302	RHG800308	RHG800314
4	220	200	8	RHC800303	RHG800303	RHG800309	RHG800315
5	220	300	8	RHC800304	RHG800304	RHG800310	RHG800316
6	220	450	8	RHC800305	RHG800305	RHG800311	RHG800317

Customized Service

All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.

FAQ

1. What about the lead time?

15 days after receive your payment.

2. How does your factory do regarding quality control?

"Quality is priority." UVIR people always attaches more importance to QC from the very beginning to the very end. Our factory has gained CE, ISO9001, RoHS, SGS authentication.

3. About customized service?

We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.

4. About after-sale service?

Any quality issue, once confirmed, we will compensate our customer.
