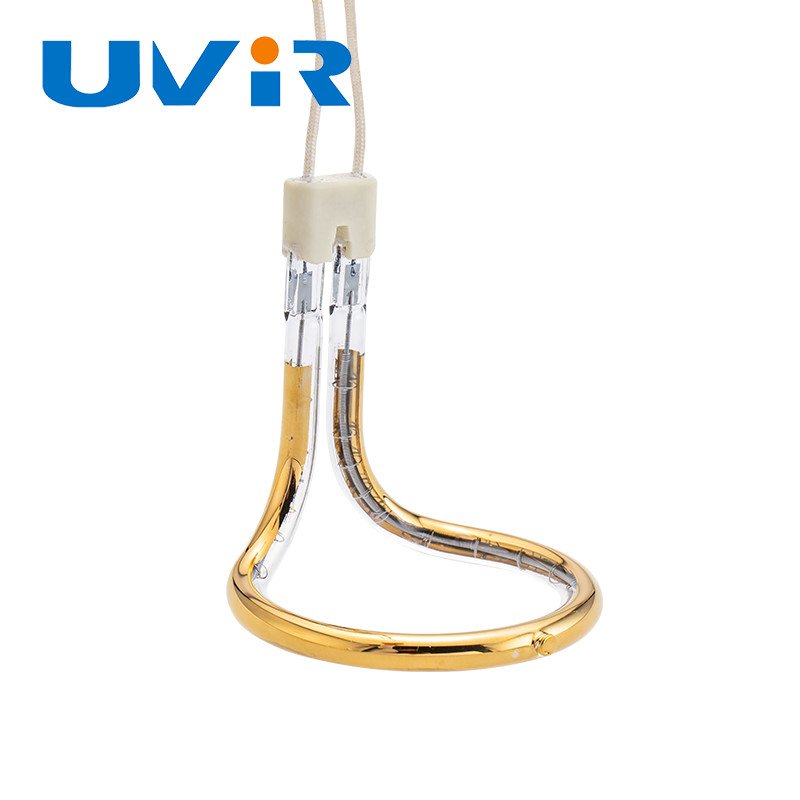

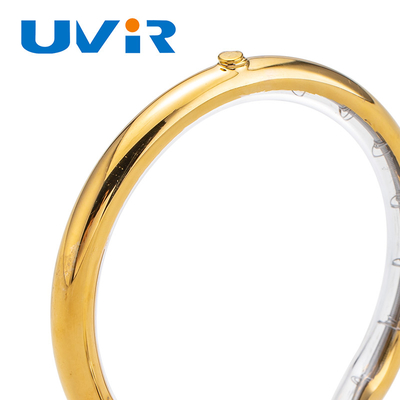

UVIR Gold Ring Infrared Heating Lamp 100-7600W for Plastic Welding

UVIR Gold Ring Infrared Heating Lamp 100-7600W for Plastic Welding

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Warranty(Year):

1-Year

Lifespan (hours):

5000-10000h

Wattage:

100-7600W

Voltage:

24-575V

Color:

GOLD

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

575V Infrared Heating Lamp

Ring Tube Infrared Heating Lamp

Plastic Welding Ring Infrared Lamps

Product Description

Ring Tube Short Wave Circular Infrared Heating Lamp For Plastic Welding Heating

Product Specifications

Attribute	Value
Brand Name	UVIR
Warranty	1-Year
Lifespan	5000-10000h
Wattage	100-7600W
Voltage	24-575V
Color	GOLD
Tube diameter	8-14mm

Short-wave Circular Infrared Heating Lamp for Plastic Welding

Premium infrared heating solution designed specifically for plastic welding applications.

UVIR Heat Lamp Advantages

Carbon Fiber Heat Lamp: Features high-quality imported carbon fiber filament with smooth finish and maximum longevity
Quartz Glass Tube: Constructed with high-temperature quartz glass for durability (5000+ hours lifespan), non-toxic with no contamination risk

Technical Specifications

Parameter	Specification
Pipe diameter	8-14mm
Diameter	39-606mm
Voltage	24-575V
Power	100-7600W
Wavelength	Short wave, medium wave, long wave
Coating	Gold/White/Clear
Shape	Ring, oval, omega (customizable)

High-Quality Coating Options

Our semi-plated white coating utilizes quartz powder technology to reflect over 90% of infrared heat in the desired direction, significantly reducing energy loss.

Industrial Applications

Industry	Applications	Recommended Lamp Type
Plastics	Bottle blowing, Thermoforming, Welding, Serigraphy	Half white reflector infrared lamp
Paper	Drying, Printing, Ink jet	Clear short wave heat lamp
Food	Food processing, Catering	Ruby heat lamp round halogen oven lamp
Wood & Composites	Drying, Curing, Powder coating	White reflector infrared heat lamp
Metal	Strapping, Coil coating	Gold reflector heat lamp

Custom parameters available - Contact our professional team for specialized solutions and technical drawings.

Safety Precautions

Install in environments free from flammable, explosive, or corrosive gases
Ensure proper positioning and fixation using provided metal/ceramic pipe clamps
Handle quartz glass components carefully to prevent mechanical damage

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 5-7 days, mass production about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 2 pieces per model.

Q4. How do you ship the goods?

A: Samples via DHL/UPS/FedEx/TNT; bulk orders via air or sea freight.

Q5. How to proceed an order?

A: 1) Share requirements 2) Receive quote 3) Confirm samples 4) Production begins.

Q6: How to deal with faulty products?

A: Replacement provided during warranty period with next order.
