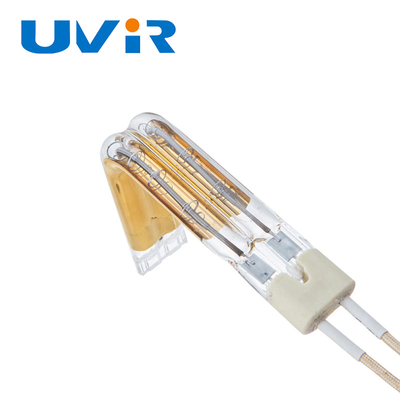

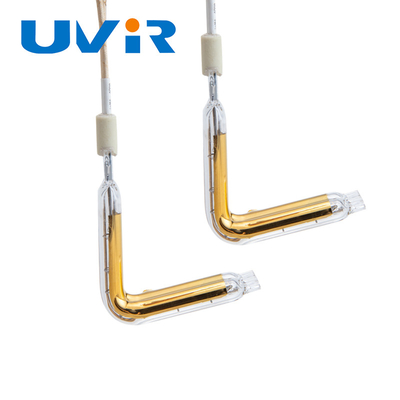

Gold Coated L-Type Halogen Infrared Quartz Tube 1800-2200°C

Name: Gold Coated L-Type Halogen Infrared Quartz Tube 1800-2200°C
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: L-type
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	L-type
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Material:

Quartz Tube

Filament Temp:

1800° C-2200° C

Color:

GOLD

Beam Angle(°):

360

Peak Wavelength:

1.2 - 1.4 μm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coated Halogen Infrared Quartz Tube

L Type Infrared Quartz Tube

Plastic Welding Quartz Tube Heating Element

Product Description

Gold Coated L Type Halogen Infrared Quartz Tube

Premium quality infrared heating solution for plastic welding and industrial heating applications.

Product Specifications

Attribute	Value
Brand Name	UVIR
Material	Quartz Tube
Filament Temperature	1800°C - 2200°C
Color	GOLD
Beam Angle	360°
Peak Wavelength	1.2 - 1.4 μm

IR Lamp Features

Available in various configurations: total length, heating length, wattage, voltage
Ceramic end connections with standard 300mm lead wire length
Coating options: Gold coating (90% reflective rate) or Ceramic coating (70% reflective rate)

Product Name	3D Infrared Lamp
Voltage Range	45-480V
Wattage Range	150-6000W
Light Source	Tungsten Filament
Reflector	GOLD

Infrared Heating Technology

Our quartz infrared lamps deliver rapid, efficient heating with precise wavelength matching for various industrial applications:

Short wave (0.9~1.4μm)
Fast response medium wave (1.4~2.0μm)
Carbon medium wave (2.0~2.5μm)
Medium wave (2.2~3.2μm)

Key Advantages

1-2 second fast response time to full power
Adjustable output power via voltage regulator (0V to rated voltage)
±1℃ precise temperature control with SCR regulators
Compact design with flexible mounting options
Withstands working temperatures up to 1000℃
Gold reflector provides 90% reflective efficiency

Standard Contour Short-Wave IR Lamps

Applications

Plastic forming and thermoforming
Bottle blowing and PET preform heating
Paint drying and ink fusing
Food processing and catering equipment
Paper mill drying processes
Semiconductor manufacturing
Various industrial drying applications

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." UVIR maintains strict quality control from beginning to end. Our factory is certified with CE, ISO9001, RoHS, and SGS.

About customized service?

We provide tailored heating solutions and OEM services, including custom branding as required.
