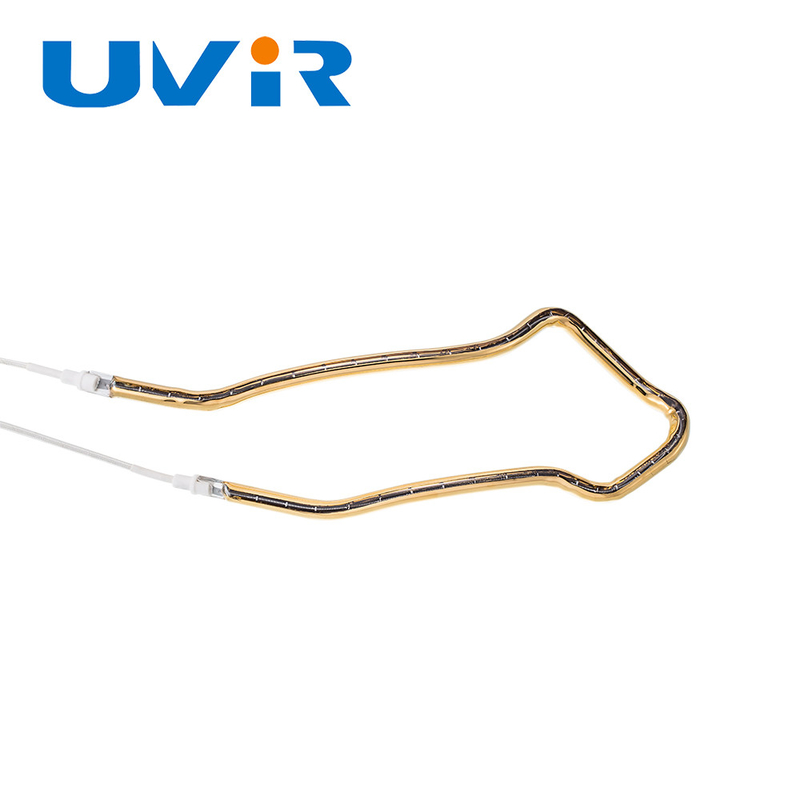

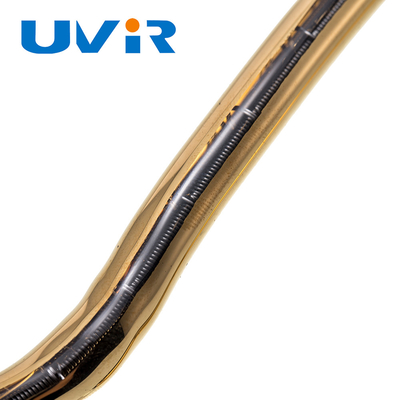

3D Gold Coated Quartz Infrared Heating Lamp Tube 150-6000W

3D Gold Coated Quartz Infrared Heating Lamp Tube 150-6000W

Brand Name:	UVIR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V,Customized

Lighting Solutions Service:

Lighting And Circuitry Design

Power:

150-6000W,Customized

Quartz Tube:

11*23mm

Shape:

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coated Infrared Heating Lamp Tube

11x23mm Quartz Tube Heating Element

3D Quartz Infrared Tube Heating Elements

Product Description

3D Type Element Tube Quartz Infrared Heating Lamp Tube Gold Coated

Product Specifications

Attribute	Value
Voltage (V)	45-480V, Customized
Lighting solutions service	Lighting and circuitry design
Power	150-6000W, Customized
Quartz Tube	11*23mm
Shape	3D
Coating	Gold

Product Description

3D Type Single Tube element tube quartz Infrared Heating Lamp Tube Gold Coated

Why Reflector

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat.

For emitters with high watt density or surface temperature above 800°C, we recommend ceramic coating as reflector due to its temperature resistance up to 1000°C. We offer both standard 180° (half-tube) coating and custom coating degrees.

Product Advantages

High purity, SiO₂ > 99.99%
Working Temperature: 1250℃; Soften Temperature: 1730℃
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulator
Transmission: Visible light >93%, UV light >85%

Technical Parameters

Product name	3D shape infrared lamp
Voltage (V)	45-480V, Customized
Wattage (W)	150-6000W, Customized
Quartz Tube (mm)	4-19mm
Shape	3D
Reflector	GOLD

If the standard parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings.

Infrared Lamp Applications

Plastics processing
Photovoltaic industry
Printing industry
Food and chemical industry
Glass industry
Textiles industry
Electronic industry

OEM Services

Our technical department can recommend the optimal heat lamp for your specific application or design custom solutions based on your technical requirements. We manufacture various sizes and types of heat lamps according to customer specifications. Custom samples can be produced based on your drawings.

Frequently Asked Questions

1. Can I get some samples?
We are happy to provide samples for evaluation and testing.

2. Do you have any MOQ limit?
Minimum order quantity is low, with samples available from 1 piece.

3. What about the lead time?
15-20 days after receiving your payment.

4. How does your factory handle quality control?
"Quality is priority." We maintain strict quality control from start to finish. Our factory is certified with CE, ISO9001, RoHS, and SGS.
