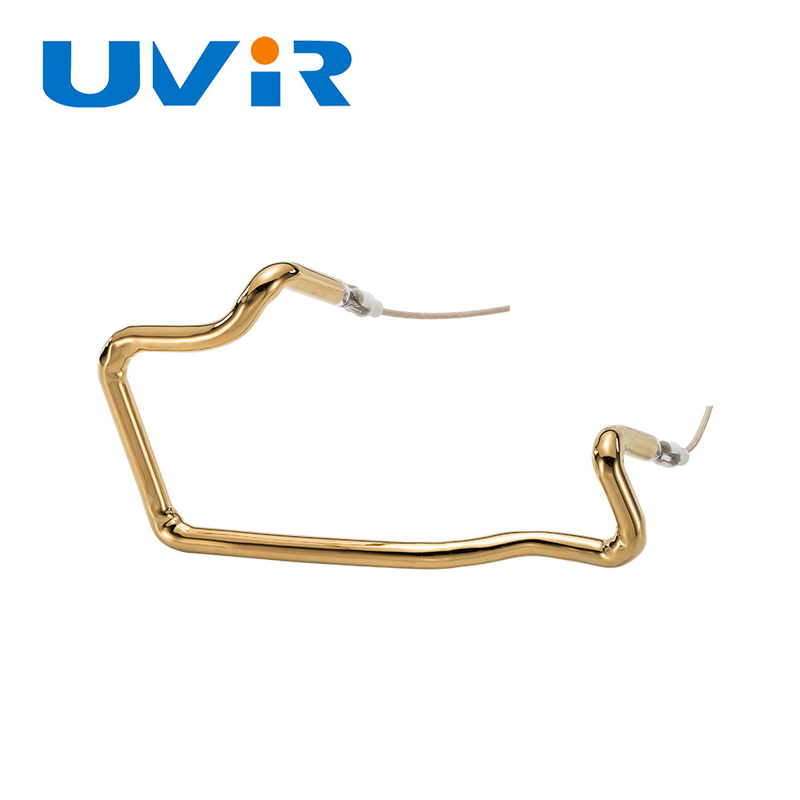

Gold Coated Quartz Infrared Heating Tube 150-6000W

Name: Gold Coated Quartz Infrared Heating Tube 150-6000W
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 3D Contoured
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	3D Contoured
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

3D Contoured Emitters

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Material:

Glass

Voltage:

45-480V

Tube Material:

Quartz Tube

OEM/ODM:

Voltage,wattage,length,base,cables,universal Burning Position,e

Power:

150-6000W

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

OEM Halogen Heater Tube

3D Contoured Emitters Halogen Heater Tube

ODM Infrared Heating Element Tube

Product Description

Industrial Infrared Heating Accessories Gold Halogen Heater Tube Shaped Element

Product Specifications

Attribute	Value
Product name	3D Contoured Emitters
Heat efficiency	More than 85% of full power
Material	Glass
Voltage	45-480V
Tube Material	Quartz Tube
OEM/ODM	Voltage, wattage, length, base, cables, universal burning position
Power	150-6000W
Coating	Gold

Product Overview

Gold halogen heater tube shaped element tube industrial infrared heating accessories feature twin-tube infrared lamps manufactured from high-quality fused quartz tubes with gold reflector for maximum efficiency.

Key Features

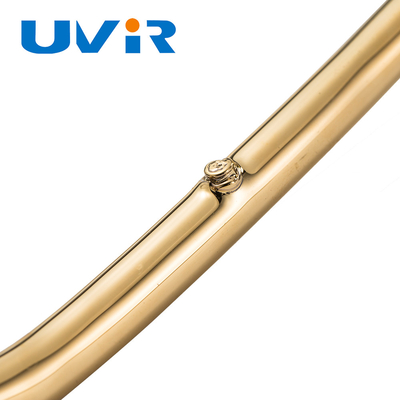

Unique twin-tube design provides higher radiation density and improved mechanical stability
Available as short-wave, medium-wave and fast response medium-wave infrared emitters
Customizable dimensions and filaments to match specific requirements
Gold reflector coating for optimal energy efficiency

Infrared Heating Technology

Our quartz infrared lamps are available for all industrial and scientific heating applications with different optimal wavelengths:

Short wave (0.9~1.4μm)
Fast response medium wave (1.4~2.0μm)
Carbon medium wave (2.0~2.5μm)
Medium wave (2.2~3.2μm)

Technical Advantages

1-2 seconds fast response time to full power
Output power adjustable via voltage regulator (0V to rated voltage)
±1℃ accurate temperature control with SCR regulators
Flexible horizontal or vertical installation
Maximum working temperature up to 1000℃
90% reflective gold coating for optimal energy efficiency

Product Specifications

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343

Custom parameters available - contact us for professional consultation and drawings.

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What is the payment term?

Prepayment 100% advance via wire transfer, Paypal, Western Union.

Could you provide sample for performance testing?

Yes, we can provide samples based on your required specifications.

What information should I provide when enquiring?

Please provide lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length, coating preference (gold/ceramic), quantity, and any available drawings or pictures.
