Gold Plated Quartz Infrared Heating Element Tube 1050W

Gold Plated Quartz Infrared Heating Element Tube 1050W

Brand Name:	UVIR
Model Number:	3D Contoured
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V

Lighting Solutions Service:

Lighting And Circuitry Design

Color:

Clear,White,gold

Power:

1050W

Quartz Tube:

8-14mm

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1050W Infrared Heating Element Tube

ROHS Infrared Heating Element Tube

14mm Quartz Infrared Heating Tube

Product Description

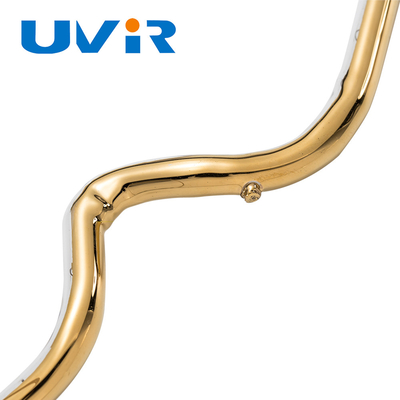

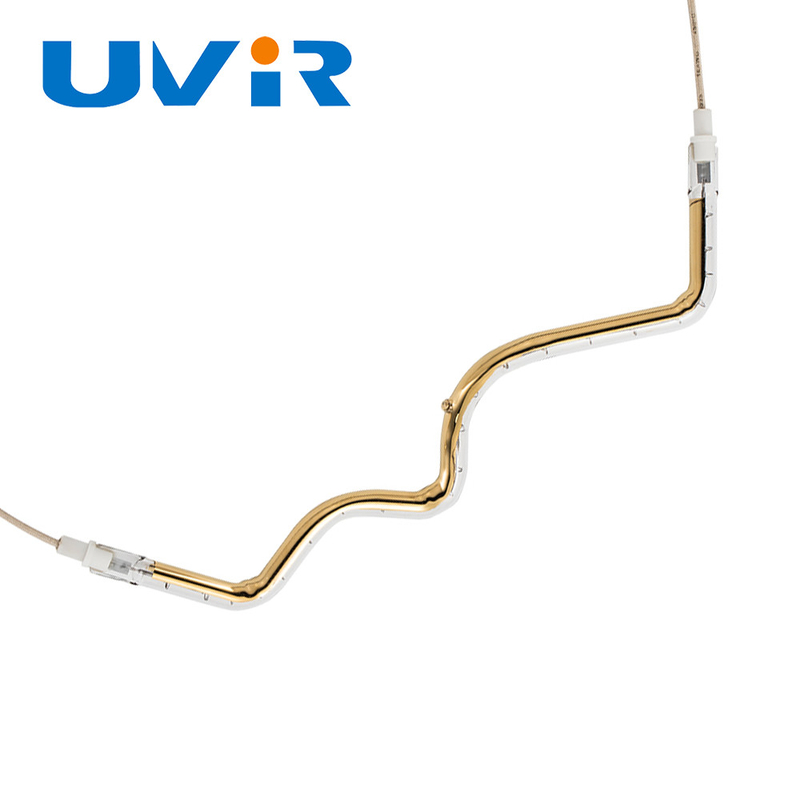

Gold Plated Quartz Emitters Infrared Heating Element Tube Industrial

Product Specifications

Attribute	Value
Voltage (V)	45-480V
Lighting solutions service	Lighting and circuitry design
Color	Clear, White, Gold
Power	1050W
Quartz Tube	8-14mm
Coating	Gold

Product Description

Infrared Gold Plated Heat Lamp Quartz Emitters Industrial Plastic Heating Tube

Why Choose Gold Reflector Coating

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating concentrates heat, increasing heat output effectiveness. These coated emitters are highly economical, converting nearly all consumed electrical power into heat.

For emitters with high watt density or surface temperatures above 800°C, we recommend ceramic coating as reflector due to its temperature resistance up to 1000°C. In addition to standard 180° (half-tube) coating, we offer custom coating degrees to meet specific requirements.

Product Advantages

High purity (SiO₂ > 99.99%)
Working Temperature: 1250°C; Soften Temperature: 1730°C
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulation
Transmission: Visible light >93%, UV light >85%

Technical Specifications

Parameter	Value
Product Name	3D Contoured Emitters
Voltage (V)	45-480V
Wattage (W)	150-6000W
Quartz Tube (mm)	8x18, 11x23, 15x33
Shape	3D Type
Reflector	Gold

Standard Models

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Infrared Lamp Applications

Plastics processing
Photovoltaic industry
Printing industry
Food and chemical industry
Glass industry
Textiles industry
Electronic industry

OEM Services

We provide expert guidance in selecting the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications.

We manufacture various sizes and types of heat lamps according to customer requirements. Providing drawings is ideal for accurate sample production.

Frequently Asked Questions

1. Can I get some samples?

We are happy to provide samples for evaluation and testing.

2. Do you have any MOQ limit?

Minimum order quantity is low - 1 piece is available for sample checking.

3. What about the lead time?

15-20 days after receiving your payment.

4. How does your factory handle quality control?

"Quality is priority." We maintain strict quality control from start to finish. Our factory is certified with CE, ISO9001, RoHS, and SGS.
