High Efficiency (85%+) Energy Saving Quick Controllable Heat Infrared Heating Element Tube with Quartz Tube

Name: High Efficiency (85%+) Energy Saving Quick Controllable Heat Infrared Heating Element Tube with Quartz Tube
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: L type
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	L type
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Power:

150-6000W

Material:

Tungsten (filament) Quartz (Tube), Quartz Tube

Light Source:

Tungsten Filament

Voltage:

48-450V

Lifespan (hours):

5000-20000h

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3D Contoured Quartz Tube Heating Element

6000W Quartz Tube Heating Element

L Type Infrared Heating Element Tube

Product Description

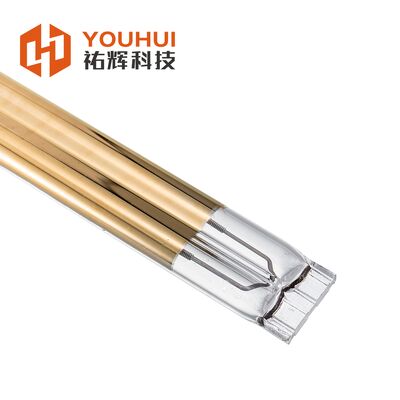

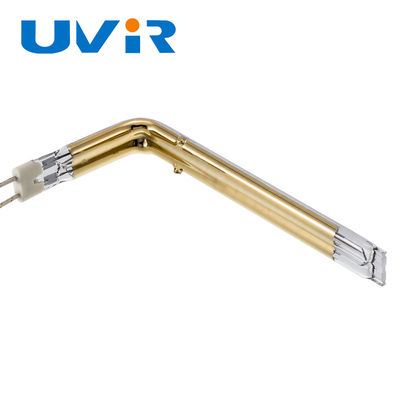

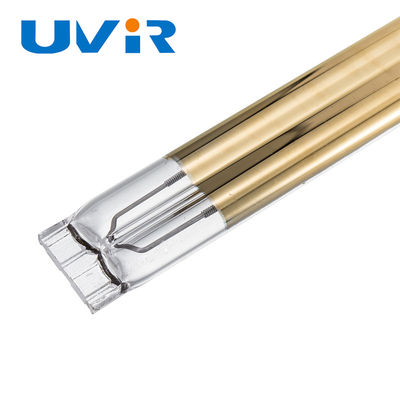

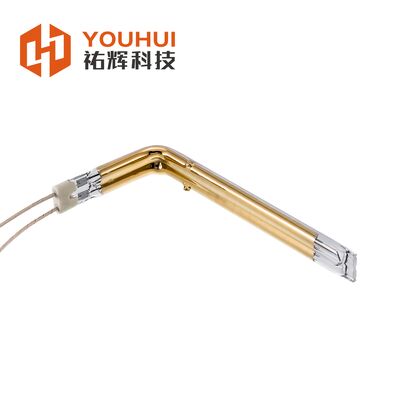

UVIR Twin Plastic Parts Quartz Tube Heating Element Gold Plated Infrared

Product Description

UVIR twin tube Plastic parts heating tube gold plated infrared Element Tube

3D Contoured Infrared Lamp Advantage

Lamp materials: manufactured from foreign imported high-end quartz tube
Longer serving life: the mid-temp and low-temp ones 5000 hours
High efficiency: more than 85% heat efficiency of full power
More effective reflective layer saves energy: gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object
Clear heating means: Don't worry about surface corrosion and dropping off
Quick controllable heat: the heating time is controllable as it is needed
Clean and odorless: no risk of contamination over environment or target object to be heated
Tailor made: wavelength, dimensions, filaments and others can be adjusted to meet your requirement
Energy Saving: less energy consumption, smaller footprint and better heating results

Product Parameters

Product name	L type infrared lamp
Type	L type
Voltage (V)	150-6000
Wattage (W)	48-450
Quartz Tube (mm)	8x18 11x23 15x33
Shape	3D
Reflector	Gold

If the parameter is not suitable for you, please contact us. We have a professional team that will provide the professional knowledge and drawings for you!

Application

Heater
Plastic forming
Bottle blowing
Paint drying
Food catering/processing and etc.
Pre-heating of PET perform
Fusing printing ink
Drying process in paper mill
Plastics thermoforming
Silicon wafer manufacturing process in Semiconductor
Various kind of drying processes

OEM Service

Our company produces and wholesales: ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources and peripheral accessories products, lamp stands, transformers, etc. Various products can be customized according to customer requirements.

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of heat lamp according to customers requirement, and so on. If you have drawings, we can make samples for you.

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. Warmly welcome all the clients at home and abroad to visit us!

3. Can I get some samples?

We are happy to offer samples for you to check and test.

4. Do you have any MOQ limit?

Low MOQ, 2pcs for sample checking is available.

5. What about the lead time?

15 days after receive your payment.

6. How does your factory do regarding quality control?

"Quality is priority." UVIR people always attaches more importance to QC from the very beginning to the very end. Our factory has gained CE, ISO9001, RoHS, SGS authentication.

7. About customized service?

We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.

8. About after-sale service?

Any quality issue, once confirmed, we will compensate our customer.
