Gold Plated Infrared Heating Tube 150-6000W for Plastic Welding

Name: Gold Plated Infrared Heating Tube 150-6000W for Plastic Welding
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: L type
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	L type
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Infrared Heating Lamp

Light Source:

Tungsten Filament

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Lifespan (hours):

5000-20000h

Color:

Gold

Quartz Tube Format:

8*18 11*23 15*33mm

Power:

150-6000W

Voltage:

45-480V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

CE Certified Infrared Heating Tube

Infrared Heating Tube 6000W

Infrared Heating Element Tube ODM

Product Description

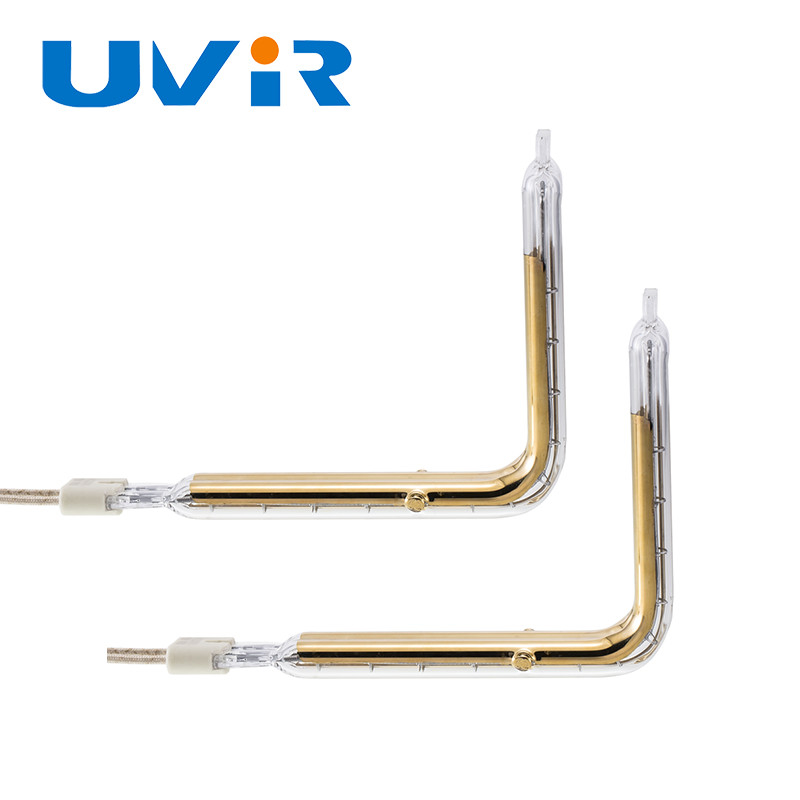

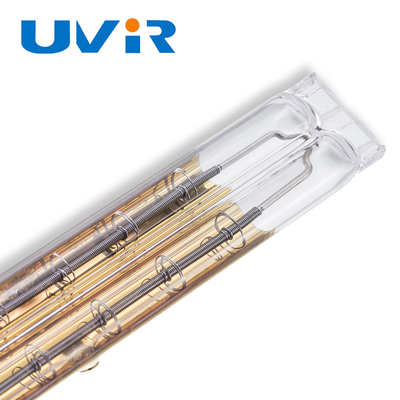

Plastic Welding Gold Plated Infrared Heating Tube Double Element

Product Specifications

Product name	Infrared Heating Lamp
Light source	Tungsten filament
Heat efficiency	More than 85% of full power
Lifespan	5000-20000 hours
Color	Gold
Quartz tube format	8×18, 11×23, 15×33mm
Power	150-6000W
Voltage	45-480V

Product Description

High-performance gold plated infrared heating tube designed for plastic welding applications, featuring double tube construction for enhanced efficiency.

Key Advantages

Extended service life: Over 5000 hours of continuous operation
Rapid response time: Achieves full power output in 1-2 seconds
Energy efficient: Gold and ceramic coating maximizes infrared radiation reflection up to 90%
Environmentally friendly: Non-toxic operation with no contamination risk
Compact design: Smaller footprint with superior heating performance

Technical Features

Premium materials: Manufactured from imported high-end quartz tubes
Efficient operation: More than 85% heat efficiency at full power
Advanced reflective layer: Gold or non-organic coating for concentrated energy output
Corrosion-resistant: No surface deterioration or material degradation
Precise control: Adjustable heating time for customized applications
Customizable: Wavelength, dimensions, and filaments can be tailored to requirements

Standard Configurations

Product name	Infrared Lamp
Type	L type
Power	150-6000W
Voltage	45-480V
Material	Quartz Tube
Customization	Available for voltage, wattage, length, base, and cables

Selected Stock and Standard Contours

If our standard parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings.

Industrial Applications

Plastic processing and welding
Photovoltaic industry heating solutions
Printing industry applications
Food and chemical processing
Glass manufacturing processes
Textile industry heating systems
Electronic component manufacturing
