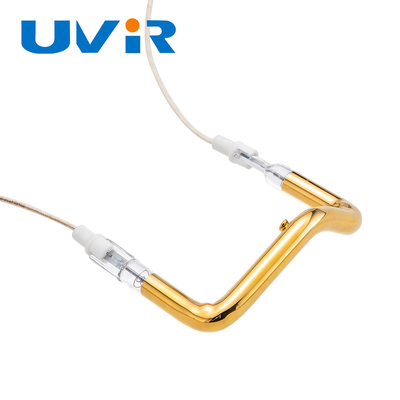

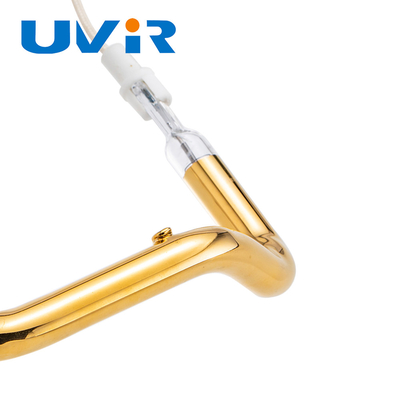

Gold Coated Quartz Heating Lamp for Auto Plastic Welding

Gold Coated Quartz Heating Lamp for Auto Plastic Welding

Brand Name:	UVIR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Material:

Quartz Tube

Filament Temp:

1800° C-2200° C

Color:

GOLD

Beam Angle(°):

360

Peak Wavelength:

1.2 - 1.4 μm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

UVIR Quartz Heating Lamp

CE Quartz Heating Lamp

3D Infrared Heating Element Tube

Product Description

Gold Coated Quartz Heating Lamp Auto Plastic Welding Accessories

Product Specifications

Attribute	Value
Brand Name	UVIR
Material	Quartz Tube
Filament temp	1800° C-2200° C
Color	GOLD
Beam Angle(°)	360
Peak Wavelength	1.2 - 1.4 μm

IR Lamp Details

Our gold coated quartz heating lamps are ideal for auto plastic welding applications with customizable specifications including:

Lamp type, total length, heating length, wattage
Voltage range and ceramic end connections
Custom lead wire lengths (standard 300mm)
Coating options: Gold or Ceramic

Product name	3d infrared lamp
Voltage (V)	45-480V
Wattage (W)	150-6000W
Material	Quartz Tube
Light source	Tungsten filament
Reflector	GOLD

Infrared Heating Technology Advantages

Our quartz infrared lamps deliver rapid, efficient heating with wavelength-specific radiation for industrial applications:

Fast 1-2 second response time to full power
Precise (±1℃) temperature control capability
Compact design with flexible mounting options
90% reflective gold coating for maximum efficiency
Wavelength options from 0.9μm to 3.2μm
Frequent on/off cycling capability
Power adjustment via voltage regulation
Up to 1000℃ working temperature

Standard and Custom Configurations

We offer both stock and custom-shaped infrared lamps for 3D applications. Contact us for specialized solutions.

Industrial Applications

Plastic forming and thermoforming
Bottle blowing and PET preform heating
Paint drying and ink fusing
Food processing and catering equipment
Paper mill drying processes
Semiconductor wafer manufacturing
Various industrial drying applications

Frequently Asked Questions

1. Can I get some samples?

We are happy to offer samples for you to check and test.

2. Do you have any MOQ limit?

Low MOQ, 1pcs for sample checking is available.

3. What about the lead time?

15 days after receiving your payment.

4. How does your factory handle quality control?

"Quality is priority." Our factory maintains CE, ISO9001, RoHS, and SGS certifications with strict quality control from start to finish.

5. About customized service?

We provide tailored heating solutions and OEM services, including custom branding.

6. About after-sale service?

Any confirmed quality issues will be promptly addressed and compensated.
