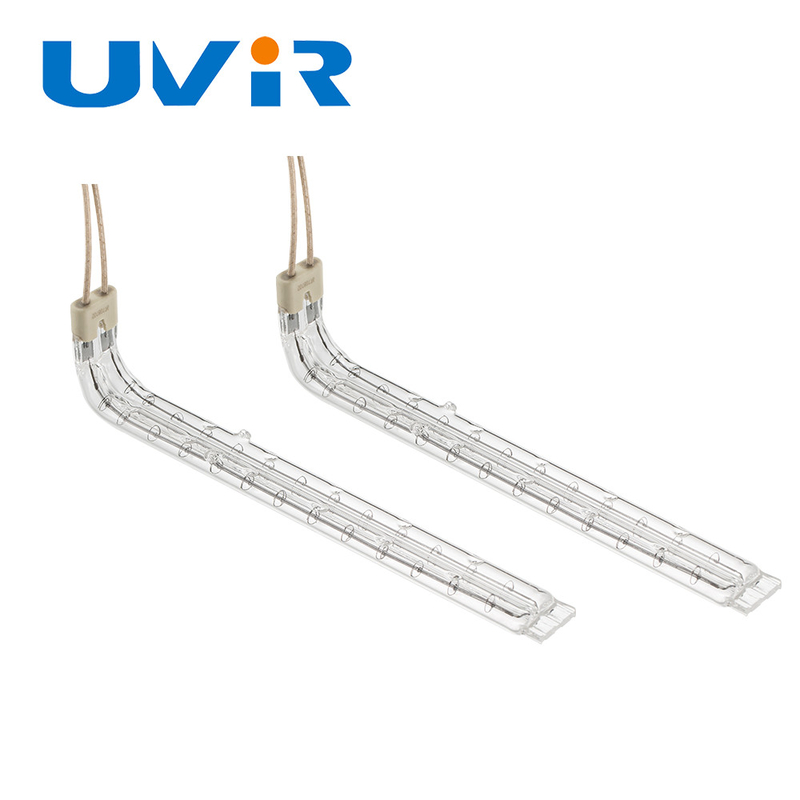

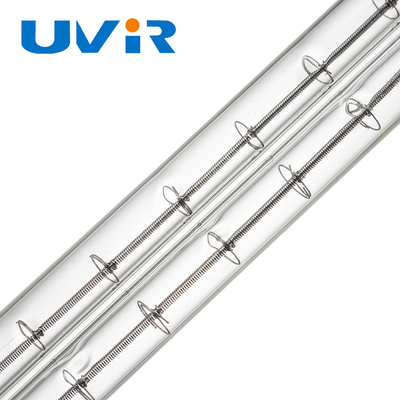

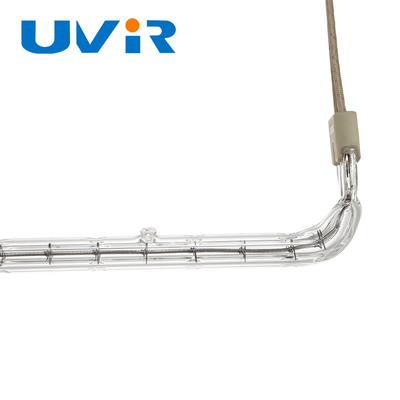

Transparent Double Quartz Halogen Heating Tube 45-480V

Name: Transparent Double Quartz Halogen Heating Tube 45-480V
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 3D Contoured
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	3D Contoured
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

3d Halogen Heating Tube Emitter Lamp

Voltage:

45-480V

Material:

Glass

Color:

Transparent

Working Lifetime(Hour):

5000h

Specification:

Short Wave Infrared Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3D Contoured Halogen Heating Tube

480V Halogen Heating Tube

3d Halogen Infrared Heating Element Tube

Product Description

Transparent Double Quartz Halogen Heating Tube Infrared Accessories

Product Specifications

Attribute	Value
Name	3d halogen heating tube emitter lamp
Voltage	45-480V
Material	Glass
Color	Transparent
Working Lifetime	5000 hours
Specification	Short wave infrared lamp

Premium Infrared Heating Lamp

UVIR 14-year Manufacturer infrared heating lamp. Contact us for custom printing options.

Key Features

Manufactured from imported high-end quartz tube
Extended service life: 5000 hours for mid-temp and low-temp models
High efficiency with over 85% heat efficiency at full power
Customizable wavelength, dimensions, and filaments to meet specific requirements
Energy saving design with reduced consumption and superior heating results

Available Parameters

Custom parameters available upon request

Voltage (V)	Wattage (W)	Quartz Tube (mm)	Shape	Reflector	UVIR NO.	FRIMO NO.
115	510	10	U	Gold	SHG300049	284343
230	800	10	U	Gold	SHG300052	293640
115	710	10	U	Gold	SHG300054	282014
230	1100	10	U	Gold	SHG300053	283932
230	1330	10	U	Gold	SHG300166	294058
115	600	10	L	Gold	SHG300050	282106

If you don't see suitable parameters, contact our professional team for custom solutions.

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for product development
Technical production teams for assembly line manufacturing
Quality inspection teams ensuring product excellence
Experienced after-sales teams supporting all customers

Safety Precautions

Install in environments free from flammable, explosive, corrosive gases and conductive dust
Ensure proper positioning and fixation using appropriate metal or ceramic pipe clamps
Handle quartz glass components carefully to prevent mechanical damage
Implement necessary protective measures based on specific heating applications

Frequently Asked Questions

How long shall I wait for quotation? And samples?

We typically provide quotations within 24 hours. Standard samples take 5-7 days, while customized heating lamps may require longer.

What is your term of delivery?

We accept FOB, CIF, EXW and other delivery terms based on your preference.

What about the lead time for mass production?

MOQ lead time is typically 15-20 days. We recommend inquiring at least two months before your required delivery date.

Do you offer guarantee for the products?

Yes, we guarantee 2 years for heaters and 5000-8000 hours for heating lamps. Custom products include specific warranty details in the quotation.

Is it OK to print my logo on product?

Yes, with MOQ requirements. We offer additional discounts for using our Goldisgood brand.

Can you do the design for us?

Our professional team can develop designs based on your requirements. Provide your ideas, logo, and text, and we'll create finished files for approval.
