UVIR U-Shaped White Halogen Infrared Heating Lamp 10mm

UVIR U-Shaped White Halogen Infrared Heating Lamp 10mm

Brand Name:	UVIR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

10000-20000h

Brand Name:

UVIR Infrared Lamp

Specification:

10mm

Filament Temp:

1100-2600C

Response Time:

1-2s

Coating:

White

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

ROHS Infrared Heating Lamp Tube

2600C Infrared Heating Lamp Tube

Semi Coated Infrared Heating Element Tube

Product Description

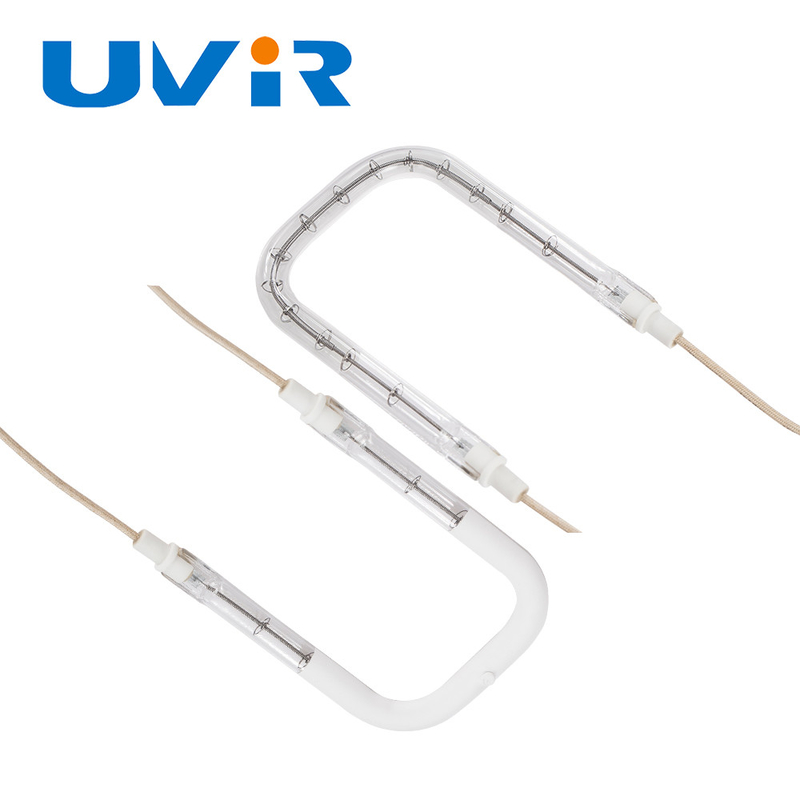

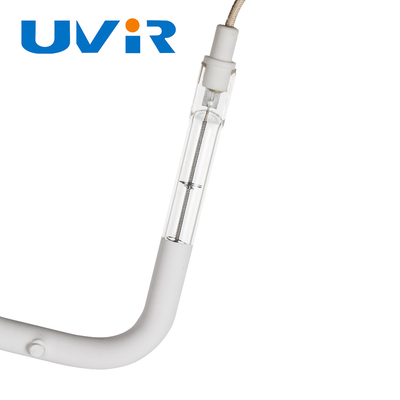

Semi Coated White Halogen Infrared Heating Lamp Tube U Shaped

Product Specifications

Attribute	Value
Lifespan (hours)	10000-20000h
Brand Name	UVIR Infrared Lamp
Specification	10mm
Filament Temp	1100-2600°C
Response time	1-2s
Coating	White

Product Description

U-shaped semi-coated white halogen infrared heating accessories

3D Contoured Infrared Lamp Advantages

Premium materials: Manufactured from imported high-end quartz tubes
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: Over 85% heat efficiency at full power
Energy-saving reflective layer: Gold or inorganic reflective layer concentrates radiation energy
Clean heating: No surface corrosion or material dropping
Precise temperature control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Customizable: Adjustable wavelength, dimensions, and filaments to meet requirements
Energy efficient: Lower consumption with superior heating results

Technical Parameters

Parameter	Value
Product name	U shape infrared lamp
Reflector	White
Voltage (V)	45-480V
Wattage (W)	150-6000W
Quartz Tube (mm)	8-14mm
Shape	3D

Custom Shape Options

Available Configurations

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical advice and custom drawings.

OEM Services

We assist customers in selecting the optimal heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications.

Frequently Asked Questions

1. Feedback

We appreciate your 5-star positive feedback. Our automated system will acknowledge your review immediately. Your input helps us improve our services.

2. Can I get some samples?

We're pleased to provide samples for your evaluation and testing.

3. How does your factory handle quality control?

"Quality is priority." UVIR maintains strict quality control from start to finish. Our factory holds CE, ISO9001, RoHS, and SGS certifications.

4. What about after-sale service?

We guarantee compensation for any confirmed quality issues.
