Gold Coating Infrared Heating Lamp 150-6000W 45-480V

Gold Coating Infrared Heating Lamp 150-6000W 45-480V

Brand Name:	UVIR
Model Number:	3d Shaped
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Material:

Tungsten (filament) Quartz (Tube), Quartz Tube

Product Name:

Infrared Heating Lamp

Quartz Tube Format:

8-14 Mm

Voltage:

45-480V,customized

OEM/ODM:

Voltage,wattage,length,base,cables,universal Burning Position,etc

Power:

150-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

UV Infrared Heating Element Tube

6000W IR Infrared Emitter

14mm Infrared Heating Element Tube

Product Description

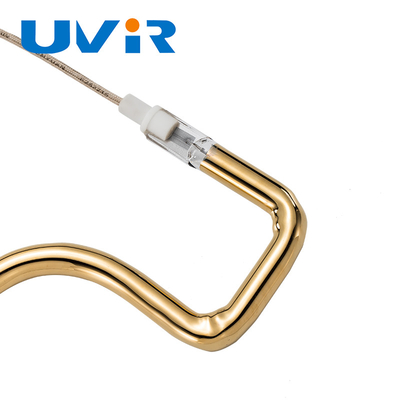

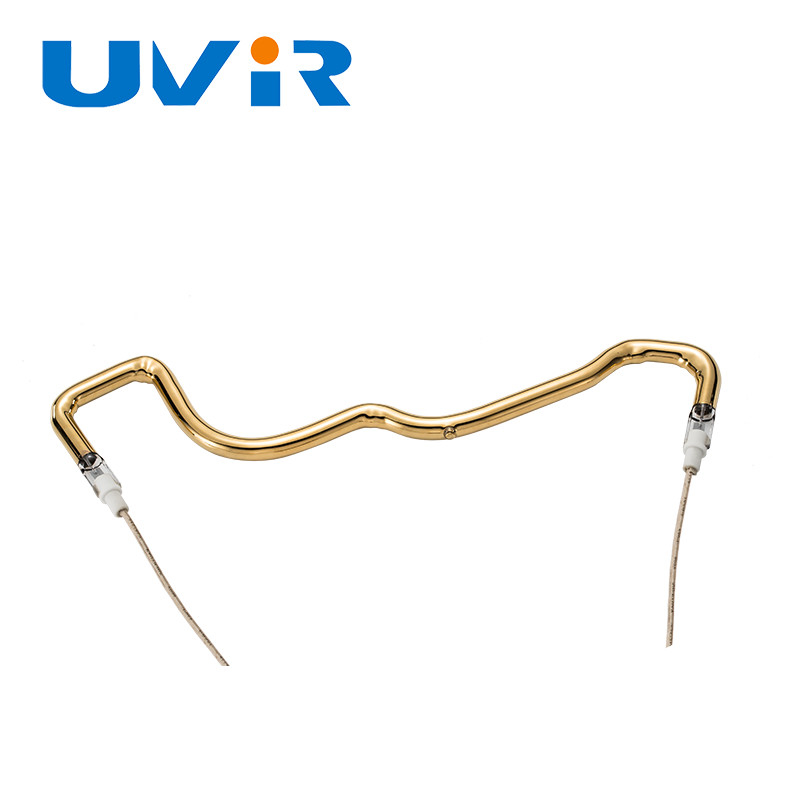

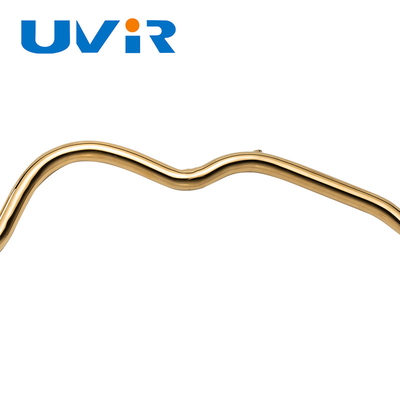

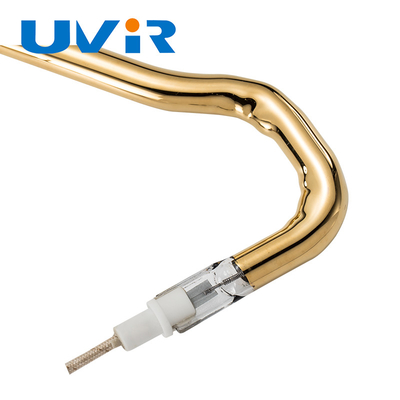

UV Special Shape Gold Coating IR Infrared Emitter Industry Short Wave

Product Specifications

Attribute	Value
Material	Tungsten (filament) Quartz (Tube), Quartz Tube
Product name	Infrared Heating Lamp
Quartz tube format	8-14 mm
Voltage	45-480V, customized
OEM/ODM	Voltage, wattage, length, base, cables, universal burning position, etc
Power	150-6000W

Product Description

UVIR Special Shape Industry Short Wave Gold Coating Infrared Emitters

Understanding Infrared Technology

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, positioned just beyond the visible red light spectrum. While invisible to the human eye, IR shares properties with visible light including:

Travels at the speed of light
Can be precisely directed and focused
Efficiently transmits through vacuum environments

When absorbed by objects, IR radiation generates internal heat by causing atomic vibration. This heating method requires no intermediate medium like air or water.

Technical Parameters

Parameter	Specification
Power Range	1150-6000W
Reflector Type	Gold
Response Time	1 second
Voltage Options	45-480V (customizable)
Customization	Available for voltage, wattage, length, base type, cables, and universal burning position

Product Details

Detailed Product Specifications

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343

For custom specifications not listed, please contact our technical team for professional consultation and custom drawings.

Industrial Applications

Heating Systems: Space heaters, saunas, electric hot tables, incubators, brooders, agricultural greenhouses
Automotive: Paint curing, seat de-wrinkling, headliner forming
Plastics Processing: Welding, forming, softening, curing, drying
Printing: Ink drying, silk screening, bindings, glue drying
Food Processing: Baking, browning, dehydrating, pasteurizing
Textiles: Web drying, finishing, pre-shrinking
Glass/Ceramics: Safety glass heating, mirror drying, frit drying

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer with direct production capabilities.

2. What are your payment terms?

We accept: T/T, Western Union, MoneyGram, PayPal, and Trade Assurance.

3. Where is your factory located? Can we visit?

Our manufacturing facility is located in Jiangmen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport. We welcome all domestic and international clients to tour our facilities.

4. Do you provide mounting clamps?

Yes, we include appropriate mounting clamps with all lamp orders at no additional cost.

5. How do we place an order?

Please provide your required specifications (lamp type, diameter, length, power, voltage, reflector type, etc.). We will prepare a quotation, and upon payment confirmation, begin production immediately with prompt shipping upon completion.
