Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | 3D Shaped |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name: | 3D Contoured Emitters | Hight Efficiency: | More Than 85% Heat Efficiency Of Full Power |
|---|---|---|---|
| Material: | Quartz Glass | Voltage: | 45-480V |
| Tube Material: | Quartz Tube | OEM/ODM: | Voltage,wattage,length,base,cables,universal Burning Position,e |
| Power: | 150-6000W | Coating: | Gold |
| Highlight: | 3D Contoured Infrared Emitter,Contoured Infrared Heating Element Tube,Quartz Glass Infrared Heating Element Tube |
||

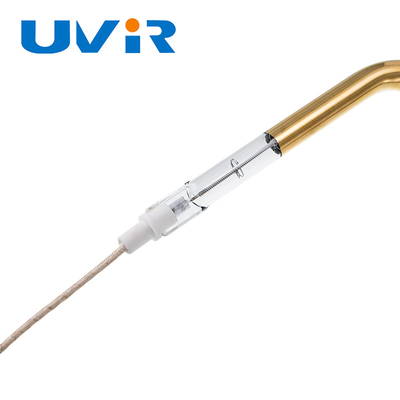

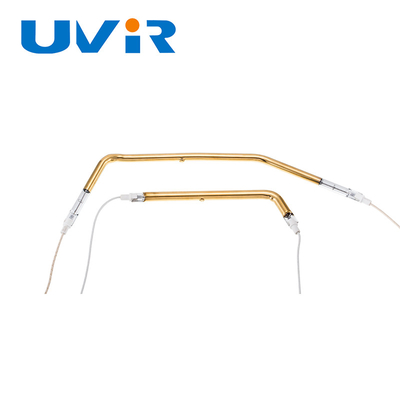

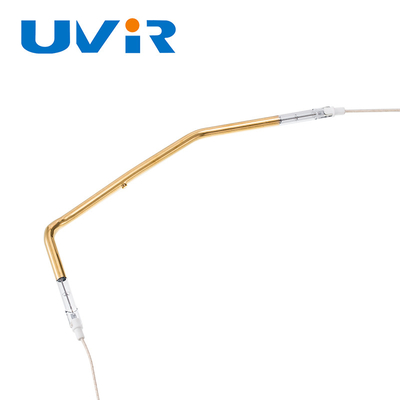

Professional Infrared emitter IR lamp electric heating element
Product Description
Heatelement Twin-Tube infrared lamps are manufactured from high-quality two single quartz tubes fused together and have a gold reflector for maximum efficiency. The unique design provides the infrared emitters with numerous advantages such as higher radiation density and improved mechanical stability, better focus and so on. The infrared heaters are available as short-wave, medium-wave and fast response medium-wave infrared emitters. This allows you to choose the optimal wavelength for the material to be heated. Dimensions and filaments of all the infrared emitters are manufactured to match the requirements.
Infrared Heating Lamp-For Your Better Heating And Energy Saving
Quartz Single Tube Infrared Lamp
Quartz Twin Tube Infrared Lamp
Short Wave Quartz Infrared Lamp
Fast Medium Wave Infrared Lamp
Carbon Medium Wave IR Lamp
Medium Wave Infrared Lamp
Infrared Lamps For Replacement
Infrared Lamps For Industrial Heat
| Product name | Infrared Lamp |
| Reflector | Gold |
| Application | Heating applications |
| Light source | Tungsten filament |
| Voltage | 45-480 |
| Wattage (W) | 150-6000W |
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of energy in a short time. By matching different optimum wavelength of infrared, our Quartz Infrared (IR) Lamps are available for all industrial and scientific heating applications. Different objects different matched IR radiation wavelength-Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
1: infrared heating lamps can be switched on and off frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage).
4: Accurate(±1 ℃)IR heating temperature control with SCR regulators or solid state relays.
5: Small installation space, flexible horizontal or vertical burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white reflector (70% reflective rate) coated on IR lamp quartz tube surface to reflect infrared radiation energy back on heated objects.
8: Different objects different matched IR radiation wavelength-IR lamp Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
FQA
1. Can I get some samples?
We are happy to offer samples for you to check and test.
2.Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
3. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union
4. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs.
5. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be
