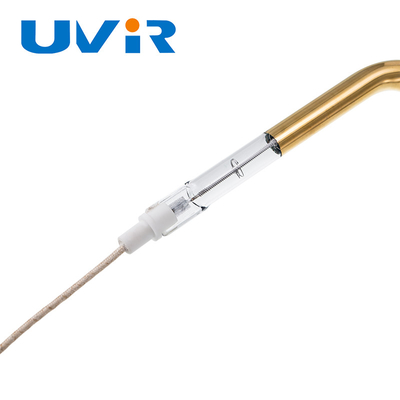

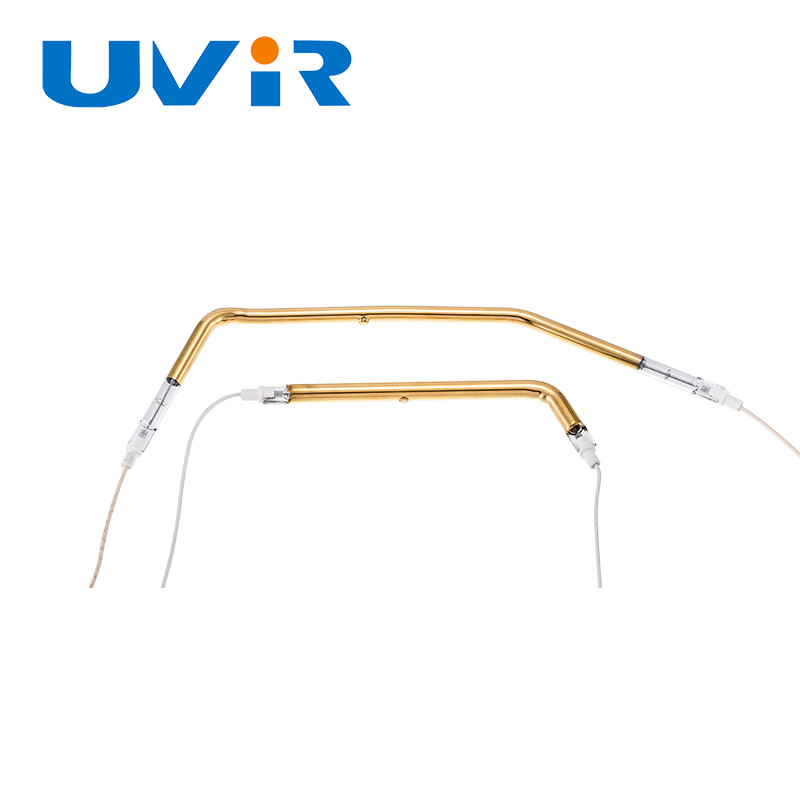

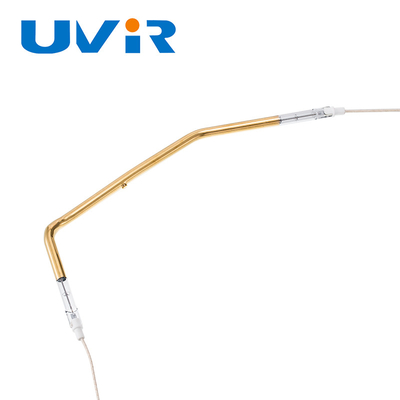

Gold Coated Quartz Infrared Heating Element Tube 150-6000W

Gold Coated Quartz Infrared Heating Element Tube 150-6000W

Brand Name:	UVIR
Model Number:	3D Shaped
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

3D Contoured Emitters

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Material:

Quartz Glass

Voltage:

45-480V

Tube Material:

Quartz Tube

OEM/ODM:

Voltage,wattage,length,base,cables,universal Burning Position,e

Power:

150-6000W

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3D Contoured Infrared Emitter

Contoured Infrared Heating Element Tube

Quartz Glass Infrared Heating Element Tube

Product Description

Professional IR Infrared Emitter - Quartz Glass Infrared Heating Element Tube

Product Specifications

Attribute	Value
Product name	3D Contoured Emitters
Heat efficiency	More than 85% of full power
Material	Quartz Glass
Voltage	45-480V
Tube Material	Quartz Tube
OEM/ODM	Custom voltage, wattage, length, base, cables, universal burning position
Power	150-6000W
Coating	Gold

Product Overview

Heatelement Twin-Tube infrared lamps are manufactured from high-quality two single quartz tubes fused together with a gold reflector for maximum efficiency. This unique design provides numerous advantages including higher radiation density, improved mechanical stability, and better focus.

Infrared Heating Solutions

Quartz Single Tube Infrared Lamp
Quartz Twin Tube Infrared Lamp
Short Wave Quartz Infrared Lamp
Fast Medium Wave Infrared Lamp
Carbon Medium Wave IR Lamp
Medium Wave Infrared Lamp
Infrared Lamps For Replacement
Infrared Lamps For Industrial Heat

Technical Specifications

Product name	Infrared Lamp
Reflector	Gold
Application	Heating applications
Light source	Tungsten filament
Voltage	45-480V
Wattage	150-6000W

Radiation Wavelengths and Advantages

Infrared heating technology radiates and conveys large amounts of energy quickly. Our Quartz Infrared (IR) Lamps are available in various wavelengths to match different heating requirements:

Short wave (0.9~1.4μm)
Fast response medium wave (1.4~2.0μm)
Carbon medium wave (2.0~2.5μm)
Medium wave (2.2~3.2μm)

Key Features and Benefits

Frequent on/off switching capability
1~2 seconds fast response time to full power
Adjustable output power via voltage regulator (0V~rated voltage)
Precise temperature control (±1℃) with SCR regulators or solid state relays
Compact design with flexible horizontal or vertical installation
Suitable for industrial applications up to 1000℃
Gold reflector (90% reflective rate) for maximum energy efficiency
Custom wavelength options for different materials

Product Models

If these parameters don't meet your requirements, please contact us. Our professional team can provide customized solutions and technical drawings.

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What is the payment term?

100% prepayment via wire transfer, Paypal, or Western Union.

Could you provide sample for performance testing?

Yes, we can provide samples based on your required specifications.

What information should I provide when enquiring?

Please provide lamp type, dimensions, wattage, voltage, connection type, lead length, coating preference, and quantity. Technical drawings or pictures are helpful.
