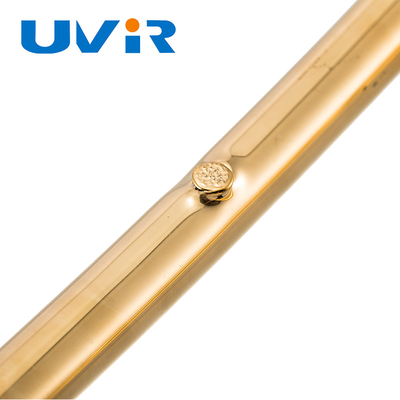

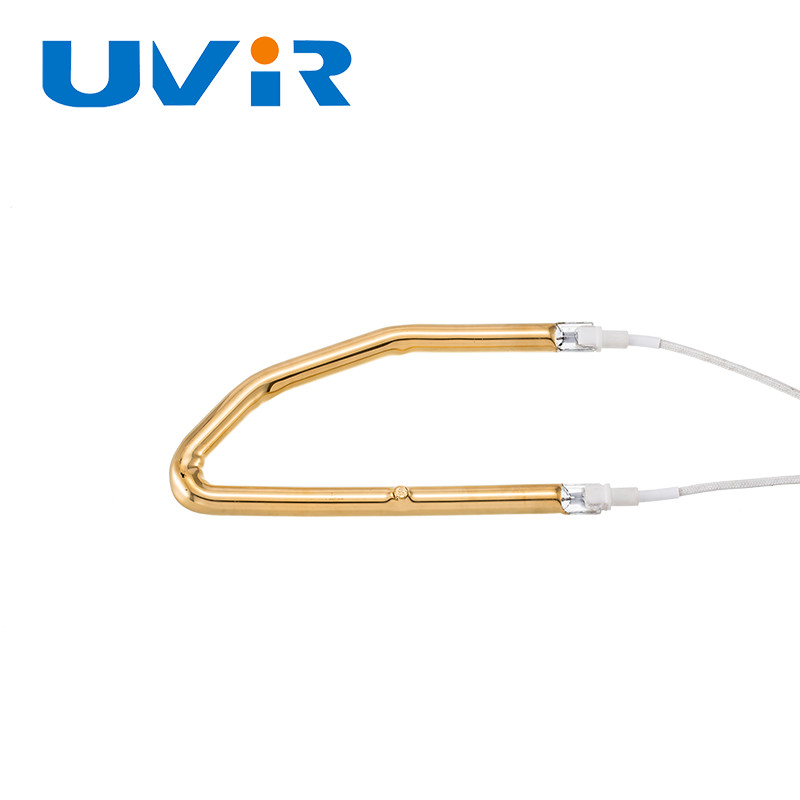

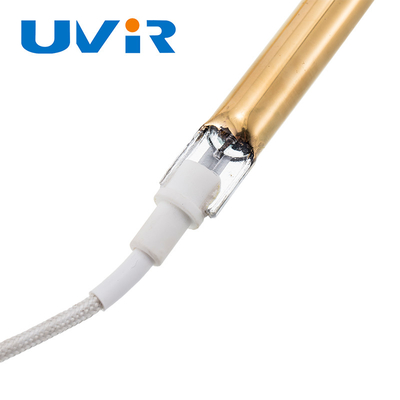

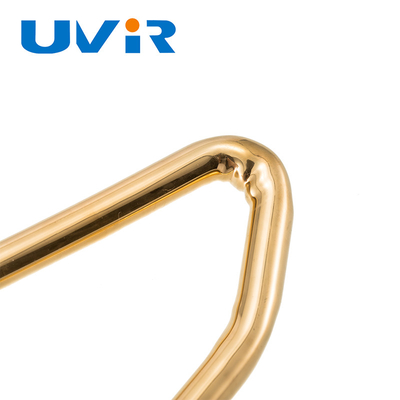

3D Shortwave Infrared Heating Element Tube 1380W 230V Gold Coated

3D Shortwave Infrared Heating Element Tube 1380W 230V Gold Coated

Brand Name:	UVIR
Model Number:	3D
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

10000-20000h

Specification:

8-14mm

Name:

Electric Protection Glass Halogen Convection Oven Lamp

Filament Temp:

1100-2600C

Response Time:

1-2s

Power:

1380W

Voltage:

230V

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Halogen Curing Infrared Heating Element Tube

Shortwave Infrared Heating Element Tube

8mm Infrared Heating Lamp Tube

Product Description

3D Type Shortwave Near Infrared Heating Element Tube Halogen Curing

Product Specifications

Attribute	Value
Lifespan (hours)	10000-20000h
Specification	8-14mm
Name	electric protection glass halogen convection oven lamp
Filament Temp	1100-2600°C
Response time	1-2s
Power	1380W
Voltage	230V
Coating	Gold

Product Description

3D Type Shortwave Curing Heat Tube Halogen Near Infrared Heating Lamp

3D Contoured Infrared Lamp Advantages

Premium materials: Manufactured from imported high-end quartz tube
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: Over 85% heat efficiency at full power
Energy-saving reflective layer: Gold or non-organic coating maximizes heating efficiency by concentrating radiation energy
Clean heating process: No surface corrosion or material dropping
Precise temperature control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Customizable: Wavelength, dimensions, filaments and other parameters can be adjusted
Energy efficient: Lower consumption, compact footprint, superior heating results

Technical Specifications

Product name	3D Contoured Infrared Lamp
Reflector	Gold
Voltage (V)	230V
Wattage (W)	1380W
Quartz Tube (mm)	8-14mm
Shape	3D

Available Parameters

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

If these parameters don't meet your requirements, please contact us. Our professional team will provide technical expertise and customized drawings.

Our Services & Strength

Expert sales teams ensure accurate communication
Professional technical teams handle new product development
Skilled production teams manage assembly line manufacturing
Dedicated quality inspection teams maintain strict standards
Experienced after-sales teams support all customers

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!

3. Can I get some samples?

We are happy to offer samples for you to check and test.

4. Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

5. What about the lead time?

15 days after receiving your payment.

6. How does your factory do regarding quality control?

"Quality is priority." UVIR people always attaches more importance to QC from the very beginning to the very end. Our factory has gained CE, ISO9001, RoHS, SGS authentication.

7. About customized service?

We can provide right heat solution for you and offer OEM services, including printing your logo on products as required.
