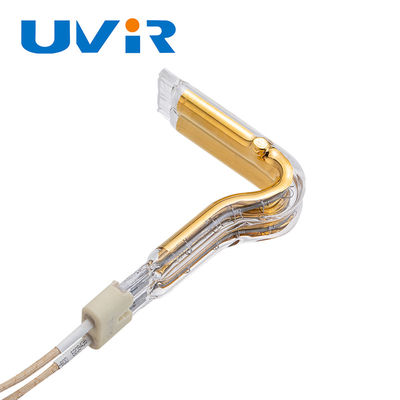

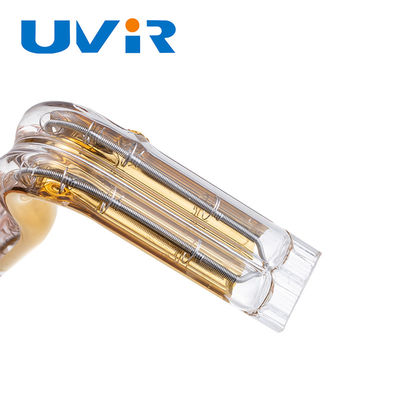

L Shape Gold Coated Infrared Heating Element Tube with 11x23mm Size 150-6000W Power and 1250℃ Working Temperature

L Shape Gold Coated Infrared Heating Element Tube with 11x23mm Size 150-6000W Power and 1250℃ Working Temperature

Brand Name:	UVIR
Model Number:	EEXC6102
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V,Customized

Lighting Solutions Service:

Lighting And Circuitry Design

Power:

150-6000W,Customized

Quartz Tube:

11*23mm

Shape:

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

L Shape Halogen Heater Tube

Quartz Lamp Halogen Heater Tube

Halogen Infrared Heating Element Tube

Product Description

L Shape Gold Halogen Heater Tube Heat Resistant Quartz Lamp For Industrial

L shape Gold halogen heater tube heat resistant quartz lamp For Industrial

Why Reflector

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C, we suggest using ceramic coating as reflector because the temperature resistance is up to 1000°C. In addition to 180° (half-tube) coating, we also provide customer specified degrees.

Product Advantages

High purity, SiO2> 99.99%
Working Temperature: 1250℃; Soften Temperature: 1730℃
Good thermal stability
Acid-proof, Alkali-proof
Excellent electrical insulator
Transmission: Visible light >93%, UV light>85%

UVIR No.	EEXC6102
Voltage (V)	45-480V, Customized
Wattage (W)	150-6000W, Customized
Quartz Tube (mm)	11*23
Shape	L
Reflector	GOLD

Technical Specifications

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343

If the parameter is not suitable for you, please contact us. We have a professional team that will provide the professional knowledge and drawings for you!

Infrared Lamp Application Fields

1. Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

2. Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

OEM Service

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, our Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of heat lamps according to customers' requirements. If you have drawings, we can make samples for you.

Frequently Asked Questions

1. Can I get some samples?

We are happy to offer samples for you to check and test.

2. Do you have any MOQ limit?

Low MOQ, 1pcs for sample checking is available.

3. What about the lead time?

15-20 days after receiving your payment.

4. How does your factory do regarding quality control?

"Quality is priority." UVIR people always attaches more importance to QC from the very beginning to the very end. Our factory has gained CE, ISO9001, RoHS, SGS authentication.
