230V 910W Gold Infrared Heating Element Quartz Tube

Name

230V 910W Gold Infrared Heating Element Quartz Tube

Brand Name:	UVIR
Model Number:	SHG300057
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

10000-20000h

Brand Name:

UVIR Infrared Lamp

Specification:

10mm

Filament Temp:

1100-2600C

Response Time:

1-2s

Power:

910W

Voltage:

230V

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

910W Heating Element Tube

,

Quartz Infrared Heating Element Tube

,

230V Heating Element Tube

Product Description

230V 910W U Type Heating Element Tube Gold Reflector Quartz Parts

Attribute	Value
Lifespan (hours)	10000-20000h
Brand Name	UVIR Infrared Lamp
Specification	10mm
Filament Temp	1100-2600°C
Response time	1-2s
Power	910W
Voltage	230V
Coating	Gold

3D Contoured Infrared Lamp Features:

Manufactured from imported high-end quartz tube
Extended service life: 5000 hours for mid-temp and low-temp models
High efficiency: over 85% heat efficiency at full power
Effective gold reflective layer concentrates radiation energy
No surface corrosion or flaking issues
Precise heat control with adjustable heating time
Clean operation with no environmental contamination
Customizable wavelength, dimensions, and filaments
Energy saving design with reduced consumption

Product Specifications:

UVIR No.	SHG300057
Reflector	Gold
Voltage (V)	230V
Wattage (W)	910W
Quartz Tube (mm)	10
Shape	3D

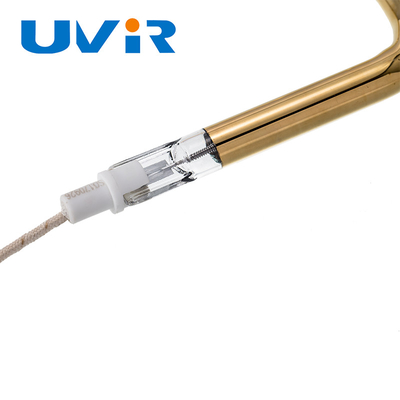

230V 910W Gold Infrared Heating Element Quartz Tube 0

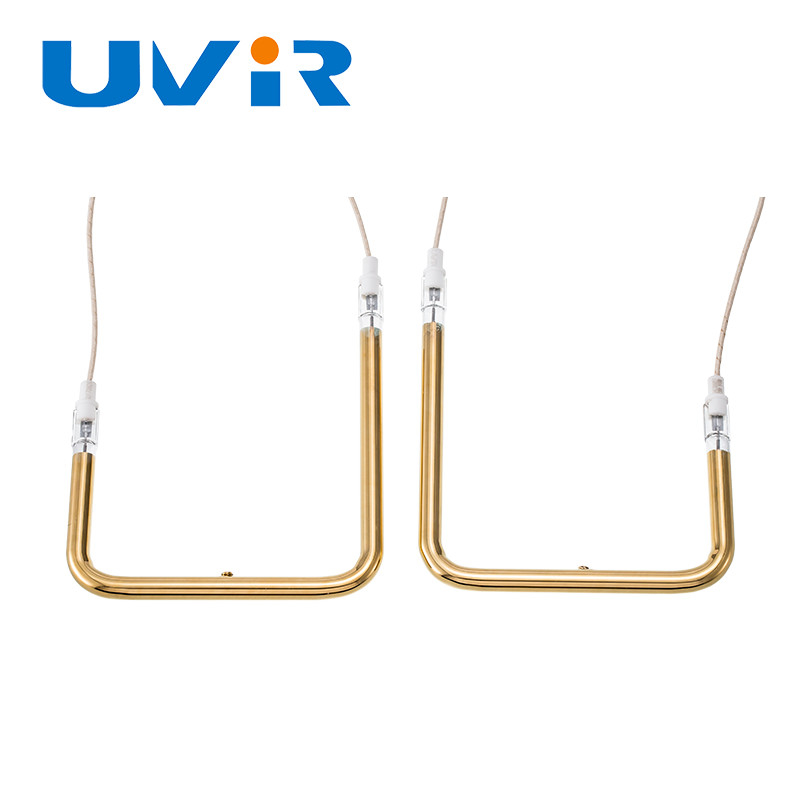

230V 910W Gold Infrared Heating Element Quartz Tube 1

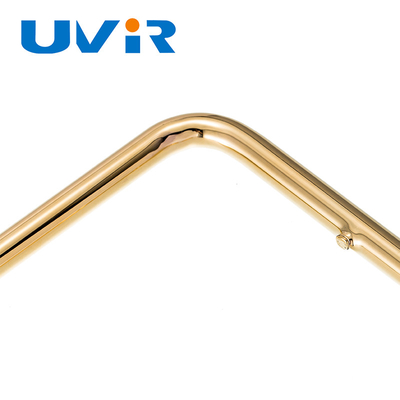

230V 910W Gold Infrared Heating Element Quartz Tube 2

Available Parameters:

Contact us for custom configurations not listed below

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

Our professional team can provide technical advice and custom drawings for your specific requirements.

OEM Service

Our Technical Department can design the optimal heat lamp for your specific application based on your technical specifications.

Frequently Asked Questions

1. Feedback

We greatly appreciate your positive feedback, which helps us improve our services.

2. Can I get some samples?

We are happy to provide samples for your evaluation and testing.

3. How does your factory do regarding quality control?

Quality is our priority. Our factory maintains CE, ISO9001, RoHS, and SGS certifications with strict quality control from start to finish.

4. About after-sale service?

Any confirmed quality issues will be promptly addressed with appropriate compensation.
