Carbon Fiber Infrared Heating Lamp
Created with Pixso.

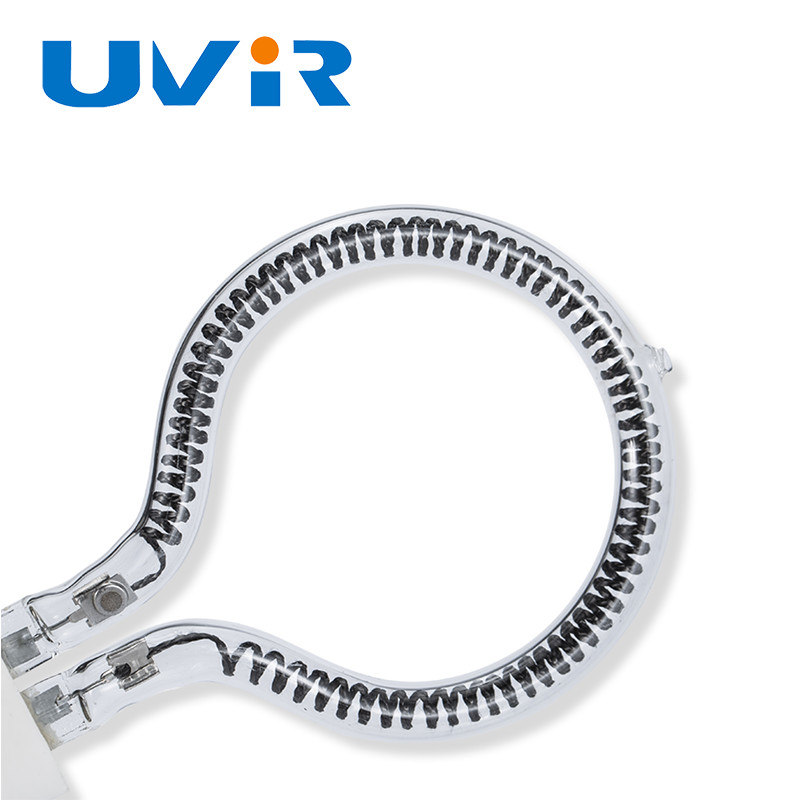

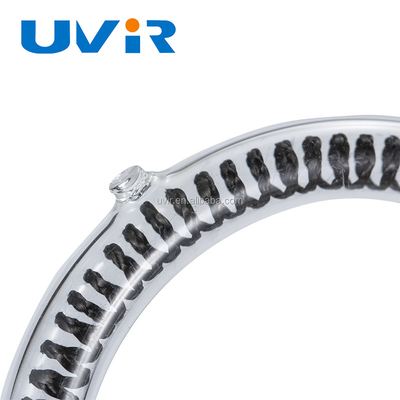

127V 500W Medium Wave Carbon Infrared Heating Lamp with Clear Reflector

127V 500W Medium Wave Carbon Infrared Heating Lamp with Clear Reflector

Brand Name: UVIR
Model Number: SCW100029
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
Carbon Emitters
Type:
Carbon Medium Wave IR Lamp
Warranty(Year):
1 Year
Color:
Clear
Wave Length:
Medium Wave
Filament Temperature:
1100-2600°C
OEM/ODM:
Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

127V Infrared Heating Lamp

,

500W Infrared Heating Lamp

,

Clear Reflector Carbon Fiber Infrared Heating Lamp

Product Description
127V 500W Clear Reflector Carbon Infrared Heating Lamp Ring Tube Medium Wave
Product Specifications
Attribute Value
Type Carbon medium wave IR lamp
Warranty 1 Year
Color Clear
Wave Length Medium wave
Filament temperature 1100-2600°C
OEM/ODM Many types of voltage, wattage, length, base, cables, universal burning position available
Product Description
127V 500W Clear Reflector Ring Tube Medium Wave Carbon Lamp Infrared Heating Lamp
Benefits of IR Lamp
  • Carbon fiber heat lamp
    • High-priced imported carbon fiber filament
    • Smooth finished filament that doesn't fluff
    • Optimum power and maximum longevity
  • Quartz glass tube
    • High quality high-temperature quartz glass
    • Long service life: over 5000 hours
    • Nontoxic with no peculiar smell, no risk of contamination
Technical Specifications
Product name Medium wave Carbon IR heating lamp
Heating length 50-1500mm, Customizable
Voltage 127V, Customized
Wattage 500W, Customized
Customized Yes
Material Quartz tube
Reflector Clear
OEM/ODM Many types of voltage, wattage, length, base, cables, universal burning position available
High Temperature Ceramic Base

The infrared heating lamp ceramic is made of high-quality ceramic material, which is resistant to high temperature.

127V 500W Medium Wave Carbon Infrared Heating Lamp with Clear Reflector 0
High-Quality Coating (Optional)

The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.

Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

127V 500W Medium Wave Carbon Infrared Heating Lamp with Clear Reflector 1
Application Scenarios
  • Infrared Heating For Plastics Process
    • IR drying of coatings on plastics
    • IR stretching or shrinking plastics
    • IR Heating For Plastic Packaging
    • IR heating for blow moulding of PET bottles
  • Infrared Heating For Photovoltaic Industry
    • IR heating for string soldering
    • IR preheating for sputtering processes
  • Infrared Heating For Printing Industry
    • IR curing ink on cloth
    • IR drying for inkjet-based CTP plates
    • IR drying of printing products, such as using in banners machine
  • Infrared Heating For Food And Chemical Industry
    • IR heating for disinfection of tableware
    • IR heating of chicken and vegetables
    • IR heating of natural herbal medicine
    • IR heating for removing snow and ice
  • Infrared Heating For Glass Industry
    • IR preheating of car glass
    • IR drying of coatings on glass
    • IR heating for manufacturing and cutting laminated glass
  • Infrared Heating For Textiles Industry
    • IR drying of coatings on textiles
    • IR heating for laminating of fabrics
  • Infrared Heating For Electronic Industry
    • Coatings on electronic components
    • The aging of the electronic components
Frequently Asked Questions
Q1. Can all the products be customized?

A: We are the factory of making IR lamps, UV lamp, IR accessories. All our products can be made by the details you provide.

Q2. What is the outer package of the product?

A: Carton packing or wooden packing.

Q3. Processing cycle?

A: Some products we have in stock. Usually need about 15 days to make.

Q4. Order quantity?

A: Customized IR Lamps usually start from 2 pieces.
