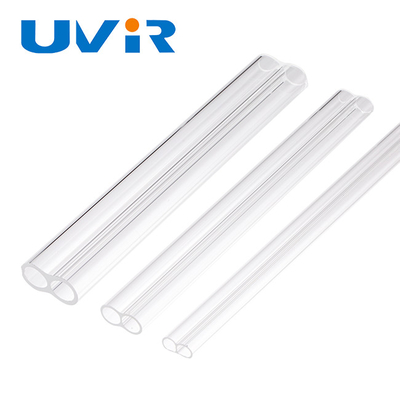

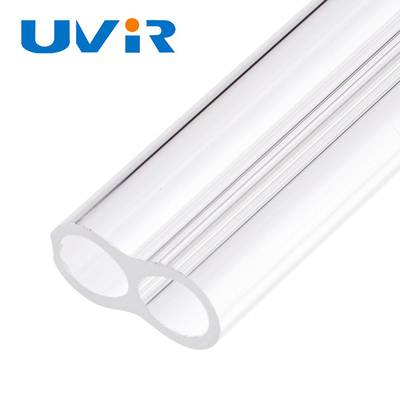

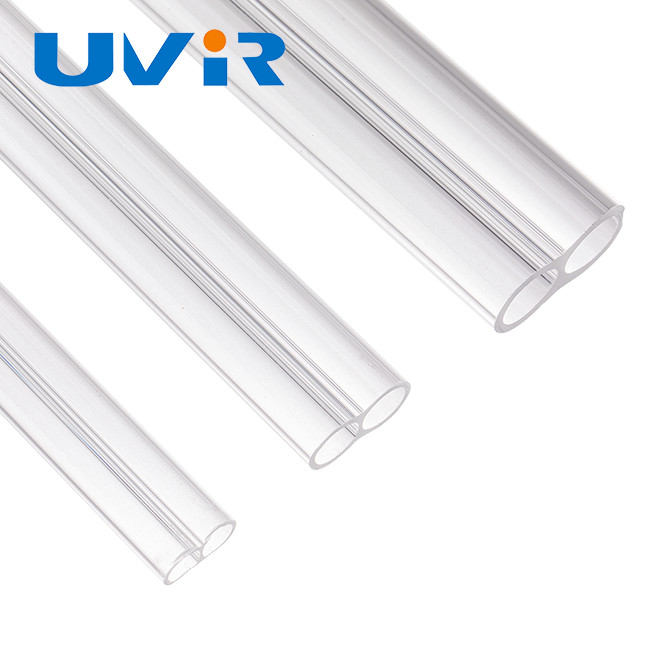

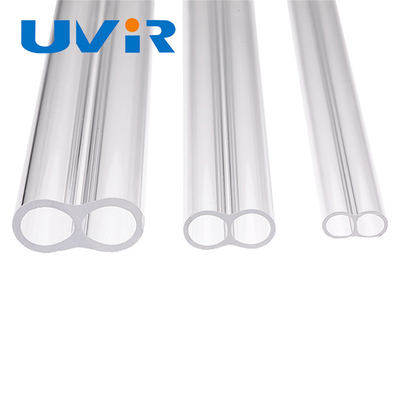

Clear Quartz Twin Tube Infrared Heater 15x33mm

Clear Quartz Twin Tube Infrared Heater 15x33mm

Brand Name: UVIR
Model Number: -
MOQ: 100
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE
Application:
For Infrared Heating Twin Tube
Size:
8*18/11*23/15*33(mm)
Product Name:
Clear Quartz Pipe
Material:
Quartz Tube
Color:
Clear
Type:
Clear Quartz Pipe, Clear,transparent
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

Twin Infrared Quartz Tube

,

Ceramic Coating Infrared Quartz Tube

,

Infrared Light Pipe 15x33mm

Product Description
Twin Infrared Quartz Tube, Ceramic Coating Infrared Light Pipe 15x33mm
Product Specifications
Attribute Value
Application For infrared heating twin tube
Size 8×18 / 11×23 / 15×33 (mm)
Product Name Clear Quartz Pipe
Material Quartz Tube
Color Clear
Type Clear Quartz Pipe, Clear, transparent
Quartz Twin Tube Infrared Light Pipe for Infrared Heater Lamp

Premium quality quartz twin tube designed for efficient infrared heating applications.

Infrared Heat Lamp Advantages
  • Long serving life: Over 5000 hours
  • Fast reaction time: About 1-2 seconds to achieve full power output
  • Energy saving: Gold and ceramic coating maximizes infrared radiation reflection up to 90%
  • Environmentally friendly: Nontoxic with no peculiar smell and no risk of contamination

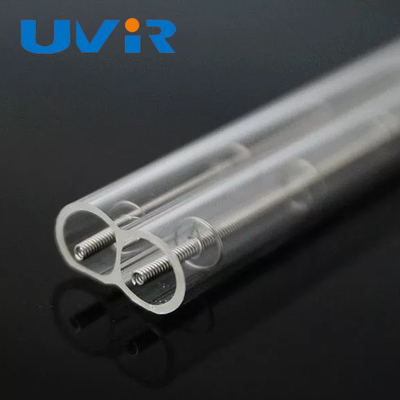

Clear Quartz Twin Tube Infrared Heater 15x33mm 0 Clear Quartz Twin Tube Infrared Heater 15x33mm 1
Standard Models
Model No. Name Spec. Length
UVIRT00001 Quartz twin tube 8×18mm 2000mm
UVIRT00002 Quartz twin tube 11×23mm 3000mm
UVIRT00003 Quartz twin tube 15×33mm 3500mm
Customized Product Size Range
IR Lamp Type Configuration Coating Options
Short Wave IR lamp Single / Twin / Ring / Contour Gold / White ceramics / Clear
Middle Wave IR lamp Single / Twin / Ring / Contour Gold / White ceramics / Clear
Long Wave IR lamp Single / Twin / Ring / Contour Gold / White ceramics / Clear
Infrared Lamp Application Fields
  • Automobile manufacturing: Paint drying, plastic welding, adhesive curing
  • Food industry: Fruit and vegetable dehydration, chocolate melting
  • Glass industry: Screen printing, bending, laminating
  • Plastic industry: PVP heating, thermoplastic, rubber drying
  • Semiconductor industry: Printed circuit soldering, capacitor plate drying
  • Textile industry: Drying of textile fibers
  • Wood industry: Wood drying, paint ink drying

Our lamps are also suitable for flooring, metal, paper, packaging, powder, coating, and many other industrial applications.

OEM Services

Our technical department can advise on product selection and design custom solutions based on your specific requirements. We accept custom sizes and configurations, and can produce samples according to your specifications.

Frequently Asked Questions
1. Are you a factory?

Yes, we are a factory with over 15 years of experience in infrared heating solutions. We welcome visits to our facility.

2. How can I get samples?

We provide free samples for quality verification, with customers responsible for shipping costs.

3. How do I place an order?

Contact our sales team via email or online chat to discuss your requirements. We will provide a proforma invoice for your confirmation before processing your order.

4. Are your products safe?

All products are thoroughly tested and certified to meet international safety standards including CE and RoHS.

5. Do you accept custom designs?

Yes, we offer comprehensive OEM and ODM services to realize your specific design requirements.
