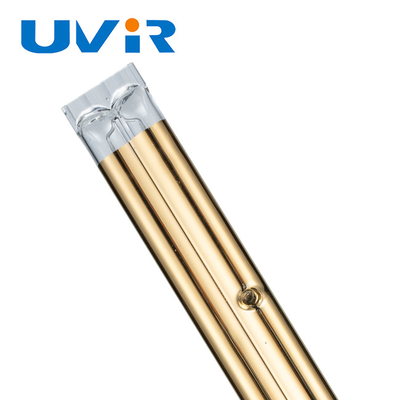

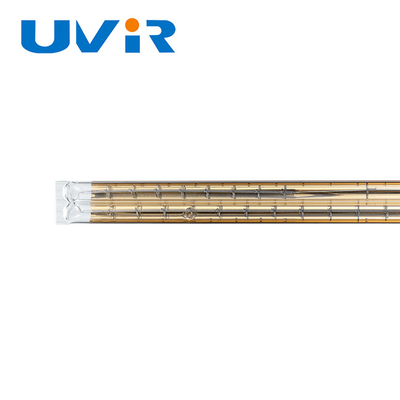

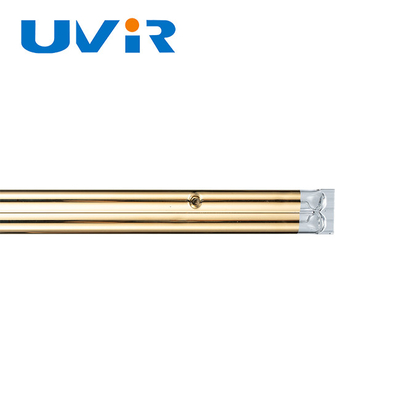

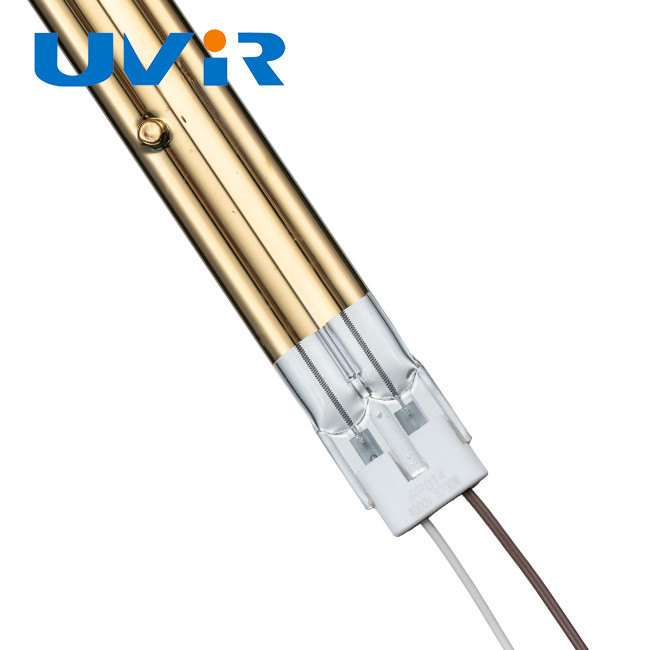

15x33mm Gold Coating IRP Infrared Lamp for Printing 6200W

15x33mm Gold Coating IRP Infrared Lamp for Printing 6200W

Brand Name:	UVIR
Model Number:	IRP014
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Coating:

Gold

Heating Length:

1060mm

Voltage:

400V

Watt:

6200W

Total Length:

1160mm

Energy:

Fast-med.

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

15x33mm IRP Infrared Lamp For Printing

Quartz IRP Infrared Lamp For Printing

Gold Coating Quartz Infrared Emitters

Product Description

15x33mm IRP Infrared Lamp For Printing, Gold Coating Quartz Infrared Emitters

Product Specifications

Attribute	Value
Tube diameter	15*33mm
Coating	Gold
Heating length	1060mm
Voltage	400V
Watt	6200W
Total length	1160mm
Energy	Fast-med.
Place of Origin	Guangdong, China
Construction	B

Type B Gold-Coating Fast Medium Quartz Heater Emitters

High-performance infrared lamps specifically designed for printing press applications.

Key Advantages

Carbon Fiber Heat Lamp: Features high-quality imported carbon fiber filament with smooth finish and optimal power efficiency for maximum longevity.
Quartz Glass Tube: Constructed with high-temperature quartz glass offering over 5000 hours service life, non-toxic with no environmental contamination risk.

Product Details

Premium Raw Materials: Combines high-quality transparent quartz tube materials with halogen principles to increase infrared radiation density for optimal heating performance.

Advanced Coating Technology: Special quartz powder coating reflects over 90% of infrared heat in the same direction, significantly reducing energy loss.

High Efficiency Heating: Tungsten wire heats gas in the quartz tube under AC voltage to produce infrared radiation. Features rapid heating, high thermal efficiency, power savings, and extended lifespan.

IRP Infrared Lamp Models for Printing Machines

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997) Grafix Part:2130012
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997) Grafix Part:2130011
CD74/SM74/MAN 500	IRP008	SM74-SW-C	short wave	400	6950	900	11*23	H	Drystar-Heidelberg SM74/CD74(post 1997)
CD74/SM74/MAN 500	IRP009	SM74-FMW-B	fast. med.	480	4200	820	15*33	B	Grafix Heldelberg SM74 post 1997
CD74/SM74/MAN 500	IRP010	MANGX-FMW-B	fast. med.	415	4200	820	15*33	B	Grafix SHS MAN Roland 500
CD102/SM102	IRP011	SM102-SW-C	short wave	400	5400	1200	11*23	H	Drystar CD102/SM102
CD102/SM102	IRP012	SM102-FMW-B	fast. med.	180	6000	1120	15*33	B	Grafix SHS Heidelberg 102 post 1997
CD102/SM102	IRP013	SM102-FMW-B-3000	fast. med.	400	6200	1160	15*33	B	Drystar 3000 Heidelberg SM102/CD102 /SM10(post)
SM105XL	IRP014	SM105XL-FMW-B	fast. med.	400	6200	1160	15*33	B	Drystar Heidelberg SM105XL(past 2007 )
XL75	IRP016	XL75	short wave	400	3500	900	11*23	B	XL75

Applications

Plastics Processing: IR drying of coatings on plastics, stretching/shrinking plastics, plastic packaging, and PET bottle blow molding.
Printing Industry: IR curing ink on cloth, drying for inkjet-based CTP plates, and drying printing products including banner machines.

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Voltage Warning: Never operate infrared emitters above the maximum rated voltage. Operation at excess voltage (V > 110% of rated voltage) may destroy the emitter.

Transportation

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples need 5-7 days, mass production typically requires about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is usually 2 pieces for each model.

Q4. How do you ship the goods?

A: Samples ship via DHL, UPS, FedEx or TNT. Large quantities ship by air or sea.

Q5. How to proceed with an order?

A: 1) Provide your requirements/application
2) We provide quotation
3) Confirm samples and place deposit
4) We arrange production

Q6: How to deal with faulty products?

A: Our products undergo strict quality control. During guarantee period, we provide replacements in next order.
