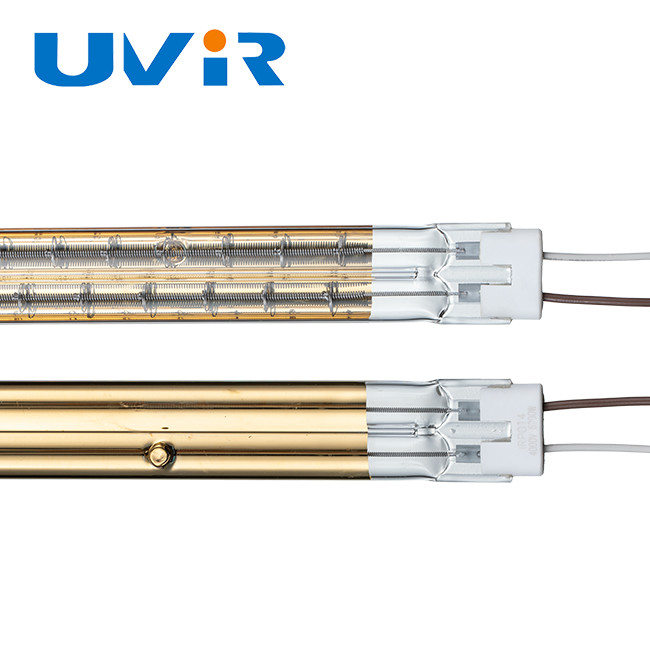

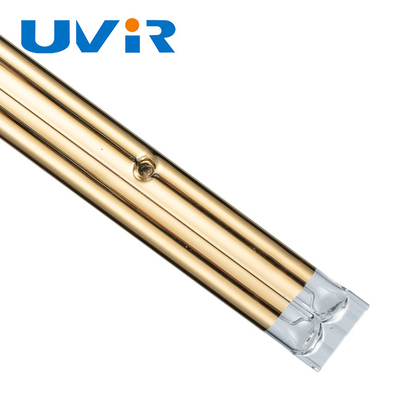

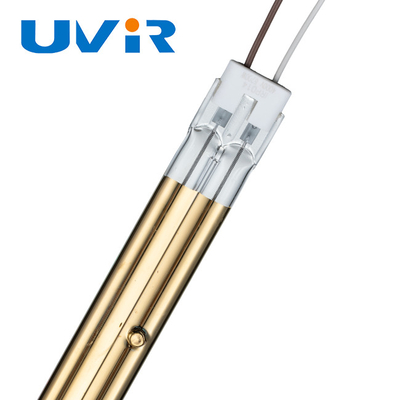

IRP Infrared Lamp 6200W 400V for Printing Machine Heating

IRP Infrared Lamp 6200W 400V for Printing Machine Heating

Brand Name:	UVIR
Model Number:	IRP014
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Reflector:

Gold

Watt:

6200W

Voltage:

400V

Heating Length:

1060mm

Total Length:

1160mm

Energy:

Fast-med.

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

5000 hours IRP Infrared Lamp For Printing

IRP Infrared Lamp For Printing 1060mm

Product Description

5000 hours IRP Infrared Lamp For Printing 6200W 1060mm Heating length

Product Specifications

Tube diameter	15*33mm
Reflector	Gold
Watt	6200W
Voltage	400V
Heating length	1060mm
Total length	1160mm
Energy	Fast-med.
Place of Origin	Guangdong, China
Construction	B

Product Description

IRP14 6200W 400V fast-medium wave double tube Printing press heating parts Drystar/Heidelberg/SM 105XL

The Advantages Of UVIR Heat Lamp

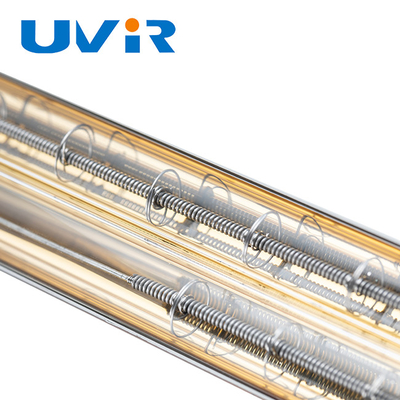

Carbon fiber heat lamp
- High-priced imported carbon fiber filament
- Finished filament is smooth and does not fluff
- Optimum power and maximum longevity
Quartz glass tube
- High quality high-temperature quartz glass
- Long serving life: over 5000 hours
- Nontoxic and no peculiar smell, no risk of contamination

Technical Parameters

Type	Infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	400V
Voltage	6200W
OEM/ODM	Many types of voltage, wattage, length, base, cables available

Product Images

Detailed Specifications

Compatibility Chart

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52

Applications

Infrared Heating For Plastics Process
- IR drying of coatings on plastics
- IR stretching or shrinking plastics
- IR Heating For Plastic Packaging
- IR heating for blow moulding of PET bottles
Infrared Heating For Printing Industry
- IR curing ink on cloth
- IR drying for inkjet-based CTP plates
- IR drying of printing products, such as using in banners machine

Installation Guidelines

Turn off all electrical power to your lamps when installing or replacing them.

Rated voltage:

Infrared emitters should never be operated with more than the maximum rated voltage specified. Any longer operation at excess voltage (V > 110% of the rated voltage) may result in destruction of the infrared emitter.
