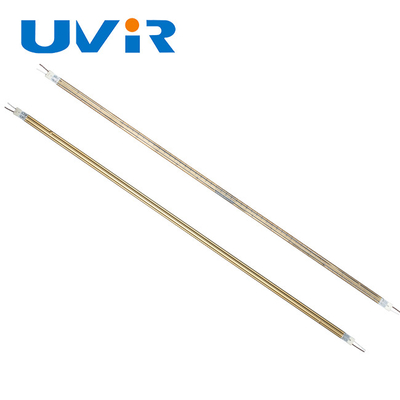

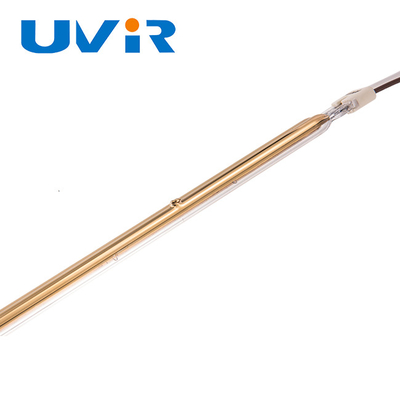

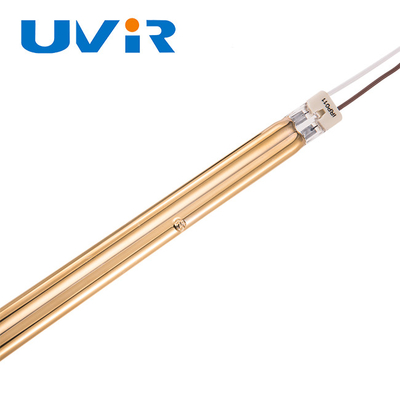

IRP011 Short Wave Quartz Heat Lamp 400V 5400W Gold Reflector

Name: IRP011 Short Wave Quartz Heat Lamp 400V 5400W Gold Reflector
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP011
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP011
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Total Length:

1200mm

Material:

Quartz Tube

Heating Length:

740mm

Voltage:

400V

Power:

5400W

Reflector:

Gold

Size:

11*23mm

Type:

Place Of Origin:

China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Quartz Heat Lamp Gold Reflector

Quartz Heat Lamp 5400W

Product Description

Short Wave Quartz Heat Lamp 400V 5400W 11x23mm Gold Reflector

Product Specifications

Total length	1200mm
Material	Quartz Tube
Heating length	740mm
Voltage	400V
Power	5400W
Reflector	Gold
Size	11*23mm
Type	H
Place of Origin	China

Product Description

IRP011 Short Wave 400V 5400W 11*23mm Infrared Heater Lamp

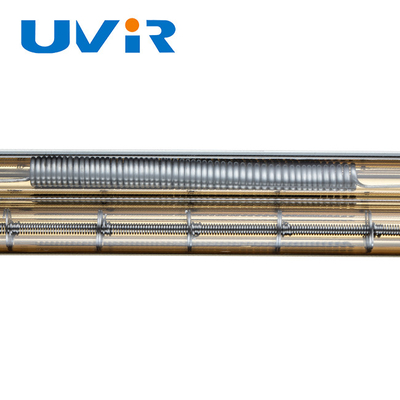

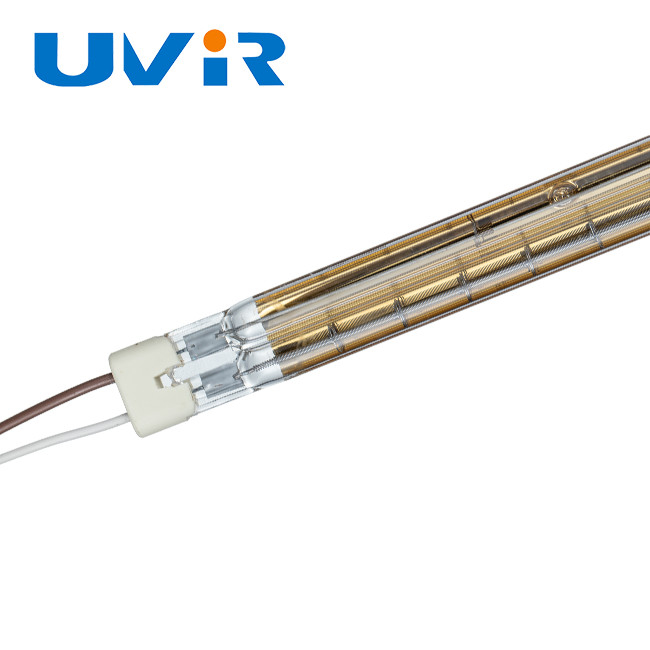

Main Components of Twin Tube Infrared Lamp:

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (Gold layer)
Proprietary gas composition

Product Parameters

Type	IRP011 infrared lamp for Printing Machine
Size	11*23mm
Coating	Gold
Power	400V
Voltage	5400W
OEM/ODM	Many types of voltage, wattage, length, base, cables available

Infrared Lamp Applications

Infrared Heating For Plastics Process: IR drying of coatings on plastics, stretching or shrinking plastics, heating for plastic packaging, blow moulding of PET bottles
Infrared Heating For Printing Industry: IR curing ink on cloth, drying for inkjet-based CTP plates, drying of printing products such as banners machine

Quality Assurance

CE and RoHS certified products
Strict quality control according to ISO9001 standards
Each lamp individually tested before shipment
1-year warranty with free replacements or repairs
Reliable delivery: samples within 5 days, bulk orders within 25 days
Comprehensive after-sales service
ODM and OEM services available
Low minimum order quantity
24/7 customer support with response within 24 hours

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Voltage Requirements:

Infrared emitters should never be operated above the maximum rated voltage. Extended operation at excess voltage (V > 110% of rated voltage) may destroy the infrared emitter.
