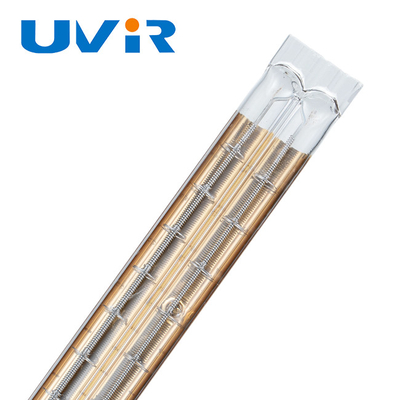

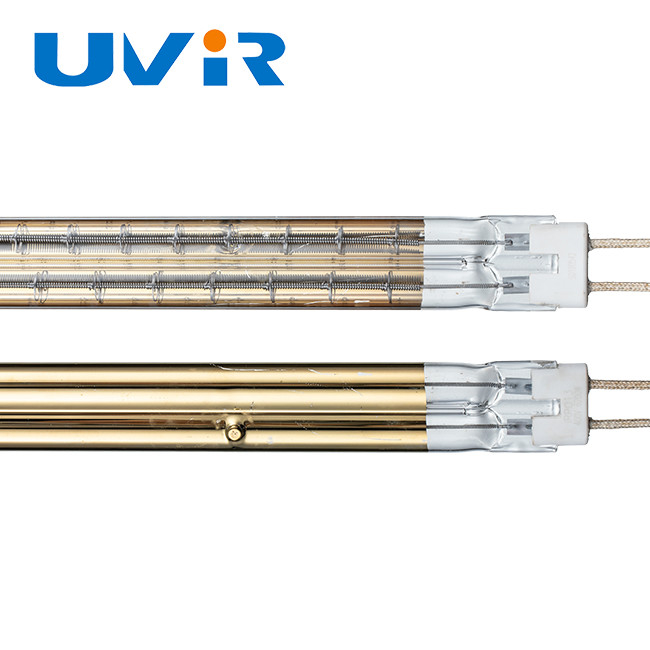

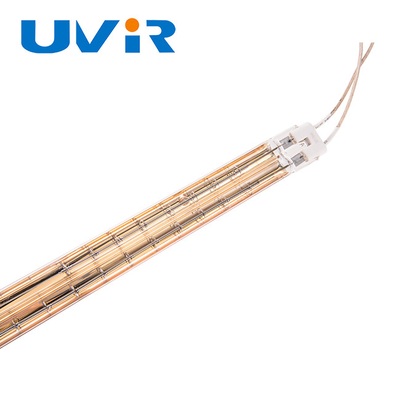

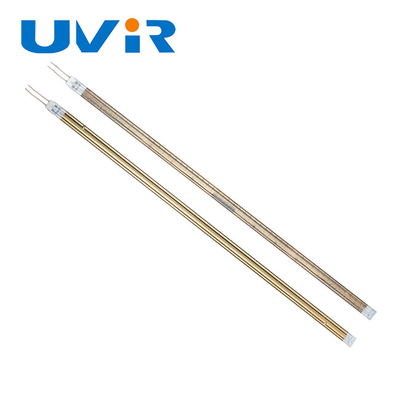

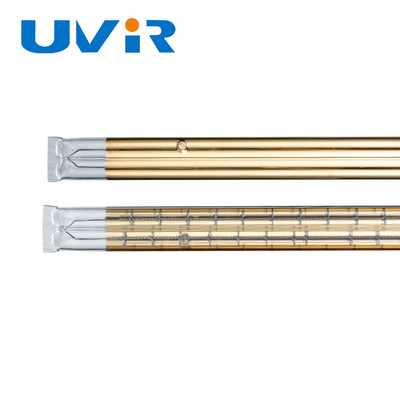

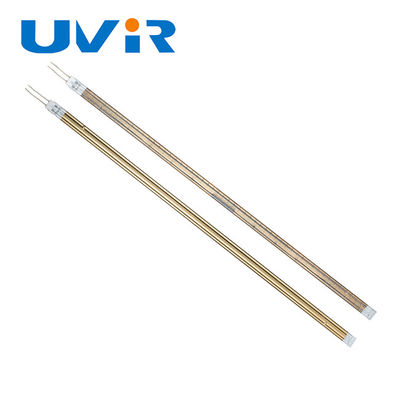

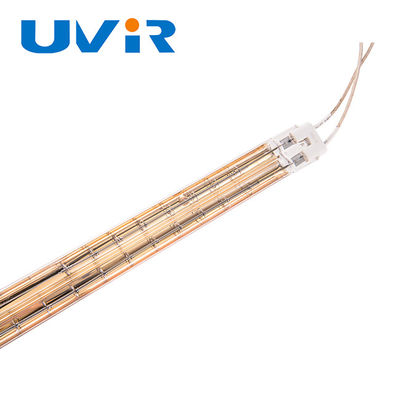

Gold Coating Medium Wave IR Lamp 1060mm 6200W 400V

Gold Coating Medium Wave IR Lamp 1060mm 6200W 400V

Brand Name:	UVIR
Model Number:	IRP013
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Reflector:

Gold

Heating Length:

1060mm

Voltage:

400V

Watt:

6200W

Total Length:

1160mm

Energy:

Fast-med.

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coating Medium Wave Infrared Lamp

Medium Wave Infrared Lamp 1060mm

Product Description

Gold coating Medium Wave Infrared Lamp 1060mm Heating length

Product Specifications

Tube diameter	15*33mm
Reflector	Gold
Heating length	1060mm
Voltage	400V
Watt	6200W
Total length	1160mm
Energy	Fast-med.
Place of Origin	Guangdong, China
Construction	B

Product Overview

Fast medium wave Gold-coating quartz infrared heat lamp printing spare parts for Heidelberg machines.

Key Features

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimized power for maximum longevity

Quartz Glass Tube

High-temperature quartz glass construction
Long service life: over 5000 hours
Non-toxic with no odor, eliminating contamination risks

Technical Parameters

Type	Infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	400V
Voltage	6200W
Customization	Available in various voltages, wattages, lengths, bases, and cables with universal burning position

Product Details

Compatibility Chart

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52

Applications

Infrared heating for plastics processing including drying coatings, stretching/shrinking plastics, and blow molding of PET bottles
Printing industry applications including ink curing on cloth, drying for inkjet-based CTP plates, and drying printing products

Benefits

Clean heating without surface corrosion or dropping off
Quick, controllable heat with adjustable heating time
Clean and odorless operation with no environmental contamination

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Voltage Requirements

Infrared emitters should never be operated above the maximum rated voltage. Extended operation at excess voltage (V > 110% of rated voltage) may destroy the infrared emitter.
