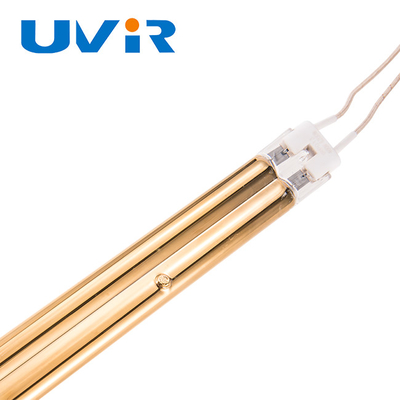

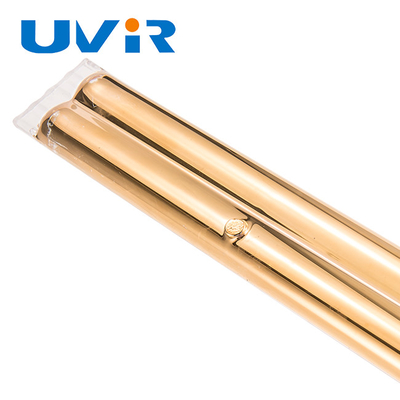

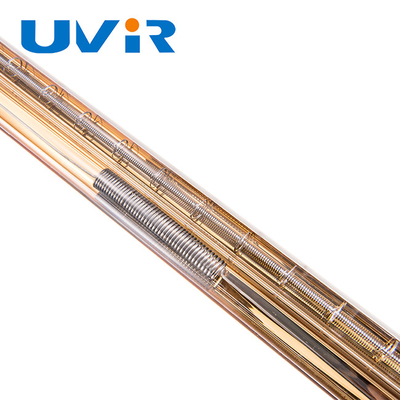

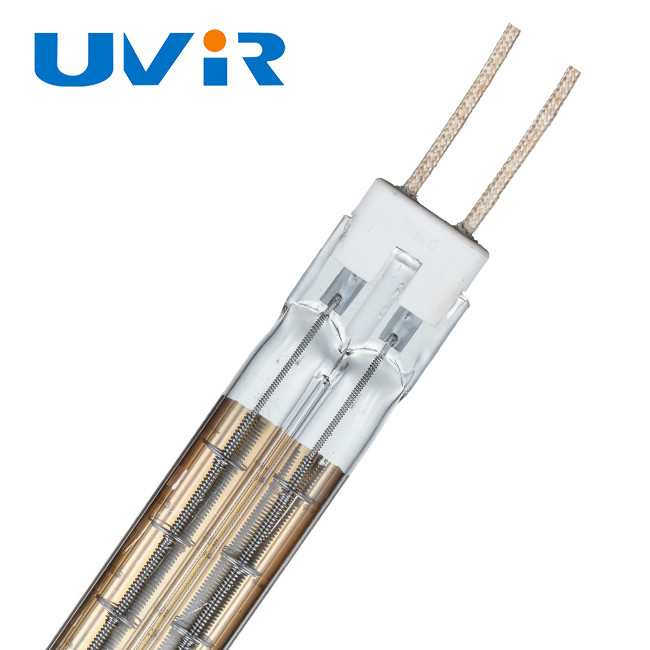

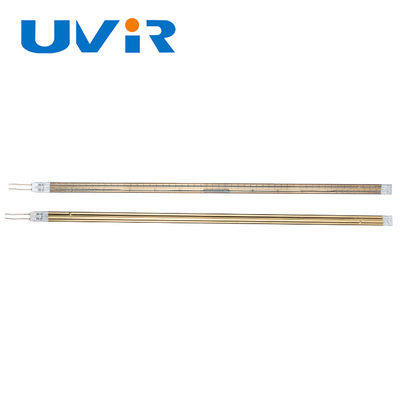

6200W IRP Infrared Lamp for Printing 1160mm 400V Quartz

6200W IRP Infrared Lamp for Printing 1160mm 400V Quartz

Brand Name:	UVIR
Model Number:	IRP013
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Construction:

Voltage:

400V

Watt:

6200W

Heating Length:

1060mm

Total Length:

1160mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Energy:

Fast-med.

Size:

15*33mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1160mm IRP Infrared Lamp For Printing

1160mm Ir Heat Lamp

6200W Ir Heat Lamp

Product Description

1160mm IRP Infrared Lamp For Printing, 6200W Ir Heat Lamp

Product Specifications

Attribute	Value
Construction	B
Voltage	400V
Watt	6200W
Heating length	1060mm
Total length	1160mm
Material	Quartz
Place of Origin	Guangdong, China
Energy	fast-med.
Size	15*33mm

Product Description

IRP13 6200W fast-med. infrared heat lamp for Heidelberg printing machine parts

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on technical specifications.

We produce various sizes and types of heat lamps according to customer requirements. Providing drawings helps us create accurate samples.

Product Parameters

Product name	infrared lamp for Printing Machine
Size	15*33mm
Coating	Gold
Power	400V
Voltage	6200W
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

TWIN TUBE MEDIUM-WAVE IR LAMPS

Product Details

IRP Infrared Lamp Models

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997) Grafix Part:2130012
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997) Grafix Part:2130011
CD74/SM74/MAN 500	IRP008	SM74-SW-C	short wave	400	6950	900	11*23	H	Drystar-Heidelberg SM74/CD74(post 1997)
CD74/SM74/MAN 500	IRP009	SM74-FMW-B	fast. med.	480	4200	820	15*33	B	Grafix Heldelberg SM74 post 1997
CD74/SM74/MAN 500	IRP010	MANGX-FMW-B	fast. med.	415	4200	820	15*33	B	Grafix SHS MAN Roland 500
CD102/SM102	IRP011	SM102-SW-C	short wave	400	5400	1200	11*23	H	Drystar
CD102/SM102	IRP012	SM102-FMW-B	fast. med.	180	6000	1120	15*33	B	Grafix SHS Heidelberg 102 post 1997
CD102/SM102	IRP013	SM102-FMW-B-3000	fast. med.	400	6200	1160	15*33	B	Drystar 3000 Heidelberg SM102/CD102 /SM10(post)
SM105XL	IRP014	SM105XL-FMW-B	fast. med.	400	6200	1160	15*33	B	Drystar Heidelberg SM105XL(past 2007)
XL75	IRP016	XL75	short wave	400	3500	900	11*23	B	XL75

IRP Infrared Lamp Applications

Infrared Heating For Plastics Process
- IR drying of coatings on plastics
- IR stretching or shrinking plastics
- IR Heating For Plastic Packaging
- IR heating for blow moulding of PET bottles
Infrared Heating For Printing Industry
- IR curing ink on cloth
- IR drying for inkjet-based CTP plates
- IR drying of printing products, such as using in banners machine

Infrared Heat Lamp Advantages

Long serving life: over 5000 hours
Fast Reaction Time: About 1-2s to achieve full power output
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%, more energy saving, smaller footprint and better heating results
Green, safe and Environment Protecting: nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated

Installation

Turn off all electrical power to your lamps when installing or replacing them.

Rated voltage:

Infrared emitters should never be operated with more than the maximum rated voltage specified. Any longer operation at excess voltage (V > 110% of the rated voltage) may result in destruction of the infrared emitter.

Transport
