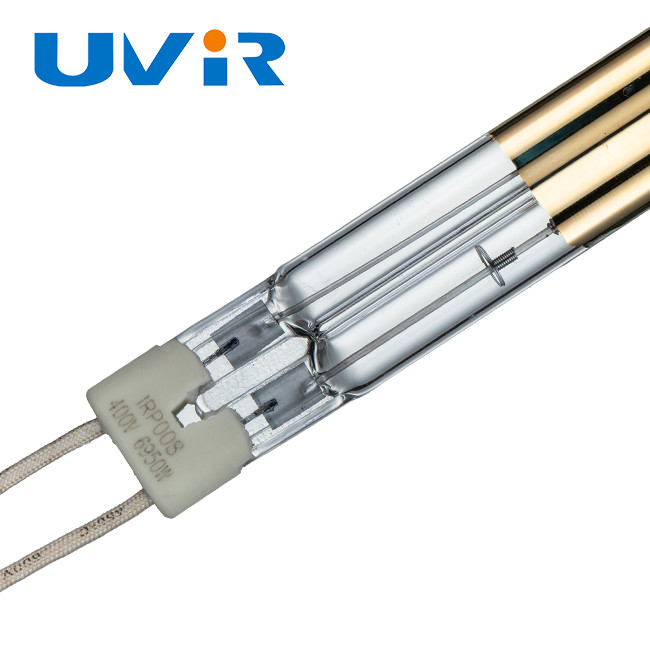

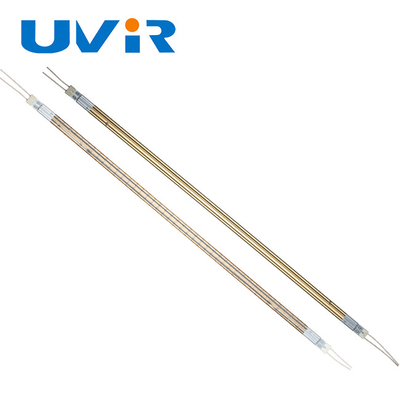

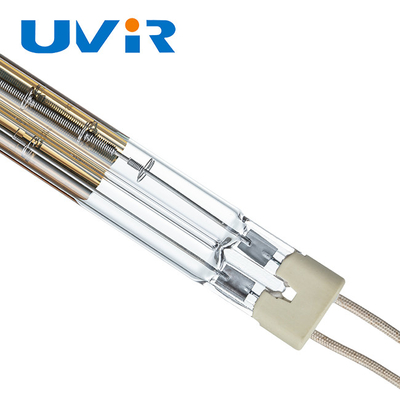

400V 6950W IRP Infrared Quartz Lamp for Printing

Name: 400V 6950W IRP Infrared Quartz Lamp for Printing
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: IRP008
Price: 150.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	IRP008
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Reflector:

Gold

Total Length:

900mm

Voltage:

400V

Heating Length:

560mm

Power:

6950W

Material:

Quartz Tube

Place Of Origin:

Guangdong, China

Construction:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

6950W IRP Infrared Lamp For Printing

400V IRP Infrared Lamp For Printing

IRP quartz infrared lamp

Product Description

400V 6950W IRP Infrared Lamp For Printing Quartz Tube Material

Product Specifications

Tube diameter	15*33mm
Reflector	Gold
Total length	900mm
Voltage	400V
Heating length	560mm
Power	6950W
Material	Quartz Tube
Place of Origin	Guangdong, China
Construction	H

Product Description

Twin tube short wave IRP008 6950W IR industrial quartz heater lamp for printing

We specialize in manufacturing and wholesale distribution of ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and related accessories including lamp stands and transformers. Custom solutions available to meet specific requirements.

Infrared Lamp Features

High efficiency design
Economical operation
Fast response switching capability
Precise heat transmission and focusing

Technical Parameters

Type	IRP008 infrared lamp for Printing Machine
Size	11*23mm
Coating	Gold
Power	400V
Voltage	6950W
OEM/ODM	Custom voltage, wattage, length, base, cables available

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Gold reflective layer
Proprietary gas composition

Compatibility Chart

IRP Infrared Lamp for Printing Machine

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997) Grafix Part:2130012
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997) Grafix Part:2130011
CD74/SM74/MAN 500	IRP008	SM74-SW-C	short wave	400	6950	900	11*23	H	Drystar-Heidelberg SM74/CD74(post 1997)
CD74/SM74/MAN 500	IRP009	SM74-FMW-B	fast. med.	480	4200	820	15*33	B	Grafix Heldelberg SM74 post 1997
CD74/SM74/MAN 500	IRP010	MANGX-FMW-B	fast. med.	415	4200	820	15*33	B	Grafix SHS MAN Roland 500
CD102/SM102	IRP011	SM102-SW-C	short wave	400	5400	1200	11*23	H	Drystar
CD102/SM102	IRP012	SM102-FMW-B	fast. med.	180	6000	1120	15*33	B	Grafix SHS Heidelberg 102 post 1997
CD102/SM102	IRP013	SM102-FMW-B-3000	fast. med.	400	6200	1160	15*33	B	Drystar 3000 Heidelberg SM102/CD102 /SM10(post)
SM105XL	IRP014	SM105XL-FMW-B	fast. med.	400	6200	1160	15*33	B	Drystar Heidelberg SM105XL(past 2007 )
XL75	IRP016	XL75	short wave	400	3500	900	11*23	B	XL75

Applications

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
Printing Industry: Curing ink on cloth, drying for inkjet-based CTP plates, drying printing products (e.g., banners)

Infrared Heating Benefits

Clean heating process without surface corrosion
Quick, controllable heating with adjustable timing
Environmentally clean operation with no odors or contamination

Installation Guidelines

Always turn off all electrical power when installing or replacing lamps.

Voltage Requirements

Infrared emitters should never be operated above the maximum rated voltage. Extended operation at excess voltage (V > 110% of rated voltage) may damage the infrared emitter.

Transportation
