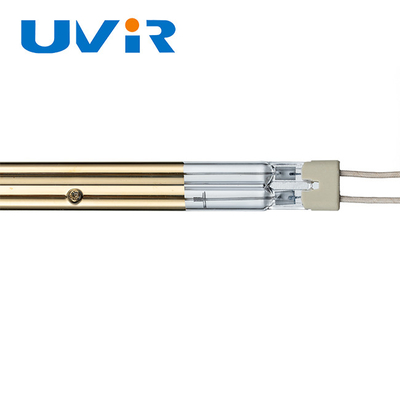

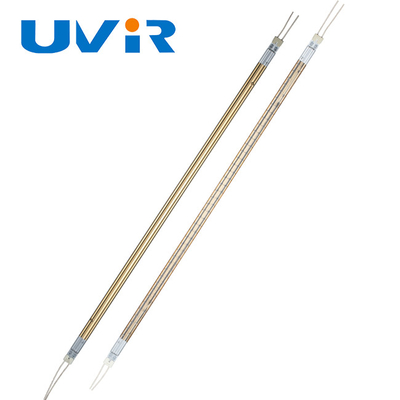

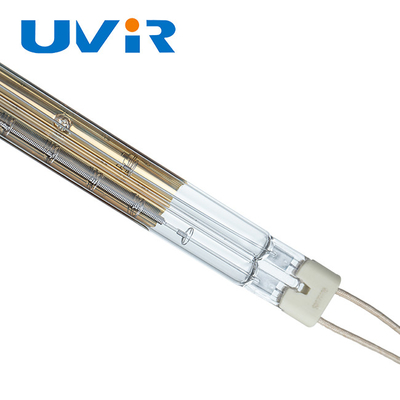

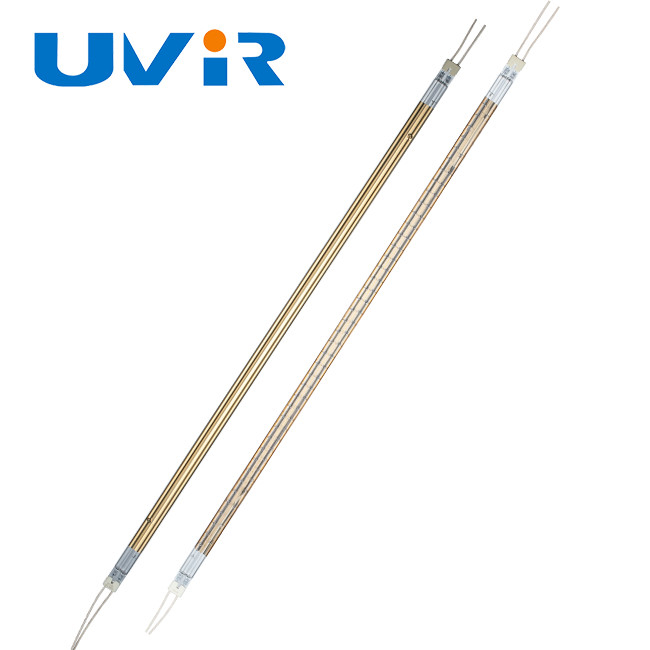

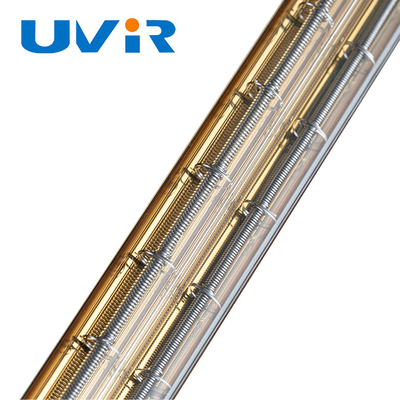

11x23mm Short Wave IR Lamp 400V 6950W for Heidelberg SM74/CD74

IRP008 400V 6950W short wave infrared lamp Heidelberg heating parts for CD74/SM74/MAN 500

• CE and RoHS certified products
• Manufactured under strict ISO9001 quality system
• Each lamp undergoes individual testing before shipment
• 1-year warranty with free replacements for defective units
• Reliable delivery: 5 days for samples, 25 days for bulk orders
• Comprehensive after-sales support
• ODM and OEM services available
• Low minimum order quantities
• 24/7 customer service with prompt responses
• Environmentally safe with no toxic emissions

The strength of a quartz tube was significantly enhanced by adopting a steel beam design concept from the construction industry. This innovative design enables twin tube lengths up to 6 meters (cross section: 33 X 14 mm).

• Plastics Processing: IR drying of coatings, stretching/shrinking plastics, packaging, and PET bottle blow molding
• Printing Industry: IR curing ink on cloth, drying for inkjet-based CTP plates, and printing products like banners

• Package tracking
• Technical support
• 24-hour response time
• Reorder discounts
• Quality issue replacements
• Customer information confidentiality

• Do not look directly at operating IR lamps
• Do not touch operating IR lamps

Power supply lines must not be bundled, as this increases overheating risk. The installed lines cannot withstand heavy vibration or cyclic movement. For moving lamps, power supply lines must be installed on terminals that move with the lamp.

• Gold reflector: Do not exceed 600°C to prevent damage
• White reflector: Do not exceed 900°C to prevent damage

Pinch seals and ceramic caps must not exceed 250°C. Overheating can cause premature failure and expose live parts.

Maximum tube temperatures: 700°C (shortwave), 800°C (carbon), 900°C (medium-wave emitters).
