Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | IRP008 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Type: | H | Tube Material: | Quartz Tube |
|---|---|---|---|
| Power: | 6950W | Tube Diameter: | 11*23mm |
| Heating Length: | 530mm | Total Length: | 900mm |
| Coating: | Gold | Place Of Origin: | Guangdong, China |
| Lamp Code: | SM74-SW-C | ||
| High Light: | 11x23mm Short Wave Infrared Lamp,6950W Short Wave Infrared Lamp,short wave ir lamps 400V |
||

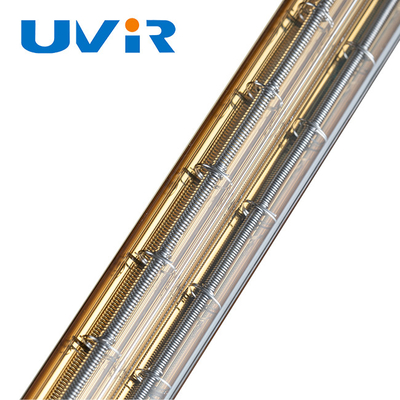

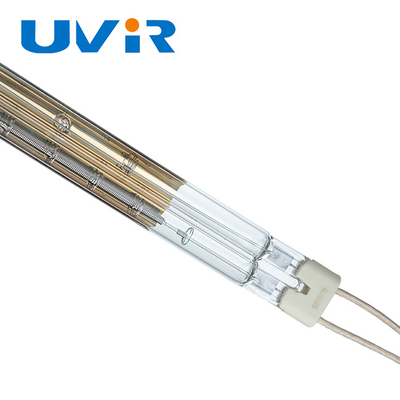

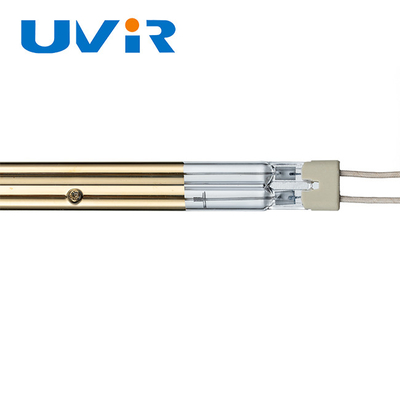

IRP008 400V 6950W short wave infrared lamp Heidelberg heating parts for CD74/SM74/ MAN 500
Why choose us
1. Lamps are approved by CE and RoHS.
2. Implement strict quality system according to ISO9001.
3. All lamps are tested one by one before delivery out from our factory.
4. You will get 1 year warranty for our UV lamps,free replacements or repairment service if they fail to work during warranty period.
5. Punctual delivery time, samples order delivery within 5 working days, bulk order delivery within 25 days.
6. Dependable after sales service
7. ODM and OEM service.
8. Low MOQ limitation
9. 7*24service, any of your questions will be replied within 24 hours
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Technical Description
Product details
| Type | IRP008 infrared lamp for PrintingMachine |
| Size | 11X23mm |
| Coating | Gold |
| Power | 400V |
| Voltage | 6950W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
TECHNICAL NOTES
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
Product Details
IRP Infrared lamp for Printing Machine
| Dryer | UVIR Code |
Lamp Code |
Energy | Volts | Watts | Total Length |
Tube Corss Section |
Constr uction |
Dryer Detail |
| SM52 | IRP001 | SM52-SW-A | short wave | 415 | 3300 | 712 | 11*23 | B | Grafix Heidelberg SM52 |
| Heidelberg MO | IRP002 | HMO-SW-A | short wave | 415 | 3300 | 740 | 11*23 | B | Grafix Heidelberg MO |
| Heidelberg MO | IRP003 | HMO-MW-B | med. wave | 415 | 1800 | 740 | 15*33 | B | Grafix Heidelberg MO |
| SM72 | IRP004 | SM72-SW-A | short wave | 415 | 3500 | 800 | 15*33 | B | Grafix Heidelberg 72 |
| SM72 | IRP005 | SM72-MW-B | med. wave | 415 | 1900 | 800 | 15*33 | B | Grafix Heidelberg 72 |
| SM102 - pre 97' | IRP006 | SM102-SW-A | short wave | 415 | 3500 | 1100 | 11*23 | A | Heidelberg SM102(pre1997) Grafix Part:2130012 |
| SM102 - pre 97' | IRP007 | SM102-MW-B | med. wave | 415 | 2500 | 1100 | 15*33 | B | Heidelberg SM102(pre1997) Grafix Part:2130011 |
| CD74/SM74/ MAN 500 |
IRP008 | SM74-SW-C | short wave | 400 | 6950 | 900 | 11*23 | H | Drystar-Heidelberg SM74/CD74(post 1997) |
| CD74/SM74/ MAN 500 |
IRP009 | SM74-FMW-B | fast. med. | 480 | 4200 | 820 | 15*33 | B | Grafix Heldelberg SM74 post 1997 |
| CD74/SM74/ MAN 500 |
IRP010 | MANGX-FMW-B | fast. med. | 415 | 4200 | 820 | 15*33 | B | Grafix SHS MAN Roland 500 |
| CD102/SM102 | IRP011 | SM102-SW-C | short wave | 400 | 5400 | 1200 | 11*23 | H | Drystar |
| CD102/SM102 | IRP012 | SM102-FMW-B | fast. med. | 180 | 6000 | 1120 | 15*33 | B | Grafix SHS Heidelberg 102 post 1997 |
| CD102/SM102 | IRP013 | SM102-FMW-B-3000 | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar 3000 Heidelberg SM102/CD102 /SM10(post) |
| SM105XL | IRP014 | SM105XL-FMW-B | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar Heidelberg SM105XL(past 2007 ) |
| XL75 | IRP016 | XL75 | short wave | 400 | 3500 | 900 | 11*23 | B | XL75 |
IRP infrared lamp application
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
Safety Instructions
Potentially explosive atmospheres
Infrared lamps are not intended for use in potentially explosive or combustible atmospheres.
Danger to eyes and skin
Do not stare at the IR lamp while in operation
Do not touch the IR lamp while in operation
Power supply lines
The power supply lines must not be routed in bundles. Routing in bundles increases the risk of overheating at
considerably lower temperatures.
The power supply lines installed are not designed to withstand heavy vibration or cyclic movement. If the infrared
lamps are to be moved by a device, the power supply lines must be installed on terminals that move along with
the lamp. Suitable leads for the power supply should then be installed from there.
Gold reflector/White reflector
The temperature of the gold reflector should not exceed 600°C in any operating condition to prevent irreversible
damage to the rflection properties of the gold.
The temperature of the white reflector should not exceed 900°C in any operating condition to prevent irreversible
damage to the reflection properties of the white coating.
Pinch seal/ ceramic end cap
The temperature of the pinch seals and the ceramic caps should not exceed 250°C. If the pinch seal and the ceramic
caps overheat, the infrared emitter will fail prematurely, the pinch seal will break and potential danger may arise
from exposed live parts.
Quartz glass tube
To avoid damaging the quartz glass tube, the temperature of the tube must not exceed:
700°C for shortwave emitters/800°C for carbon emitters/900°C for medium-wave emitters
FAQ
Q1: Are you factory or trading company?
A: We are trading company with factory.
Q2: Can I have a sample first before bulk order?
A: Yes. We offer you free sample to test the quality, you only undertake the freight.
Q3: What's your delivery date?
A: 5-7 working days for samples and 15-25 days for bulk order.
Q4: What's your shipping ways?
A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door
2. By Air: Please let us know your airport.
3. By Sea: Please let us know your delivery port.
Q5: What's your MOQ?
A: Our MOQ is 2pcs. First order as samples can be less than 10 pcs.
Q6:Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations
