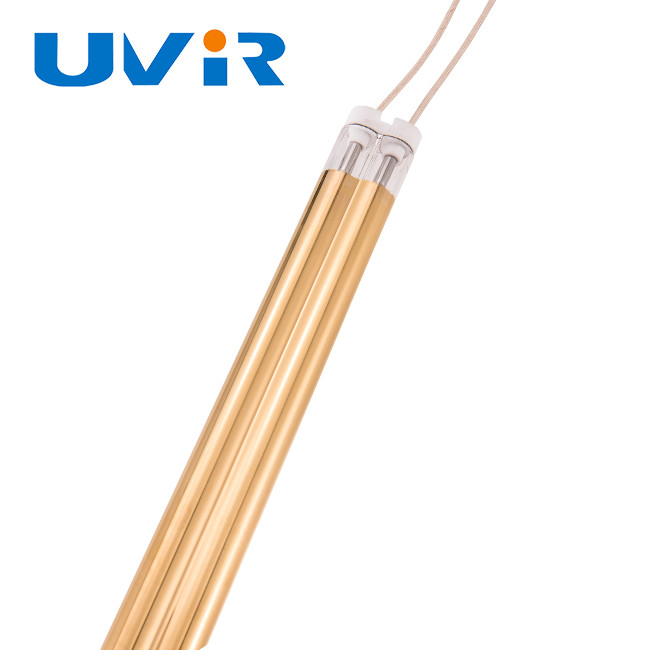

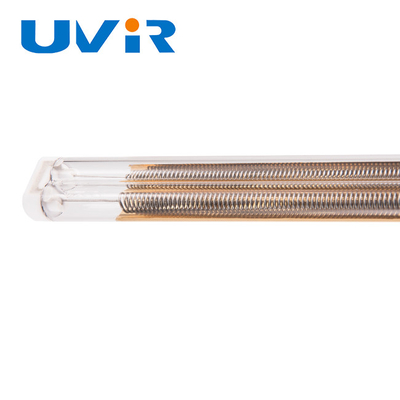

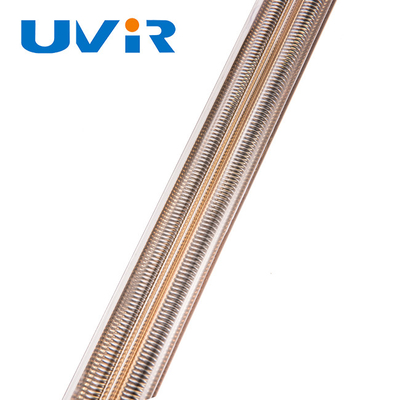

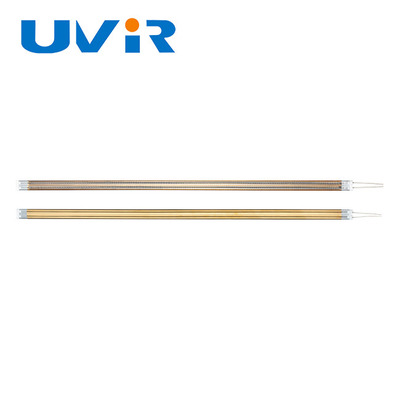

Gold Coating 2500W 415V Medium Wave IR Lamp for Printing

Gold Coating 2500W 415V Medium Wave IR Lamp for Printing

Brand Name:	UVIR
Model Number:	IRP007
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Diameter:

15*33mm

Reflector:

Gold

Heating Length:

1020mm

Voltage:

415V

Total Length:

1100mm

Power:

2500W

Type Material:

Quartz Tube

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coating Ir Lamps For Heating

Ir Lamps For Heating 2500W

infrared lamps for heating 415V

Product Description

Gold Coating IR Lamps For Heating 2500W 415V Medium Wave Twin Tube

Product Specifications

Attribute	Value
Tube diameter	15*33mm
Reflector	Gold
Heating length	1020mm
Voltage	415V
Total length	1100mm
Power	2500W
Type Material	Quartz Tube
Place of Origin	Guangdong, China

Product Description

Gold-coating Medium wave twin tube IR lamp Heidelberg heater emitters for printing applications.

Twin Tube Medium-Wave IR Lamps

Technical Parameters

Dryer	UVIR Code	Lamp Code	Energy	Volts	Watts	Total Length	Tube Cross Section	Construction	Dryer Detail
SM52	IRP001	SM52-SW-A	short wave	415	3300	712	11*23	B	Grafix Heidelberg SM52
Heidelberg MO	IRP002	HMO-SW-A	short wave	415	3300	740	11*23	B	Grafix Heidelberg MO
Heidelberg MO	IRP003	HMO-MW-B	med. wave	415	1800	740	15*33	B	Grafix Heidelberg MO
SM72	IRP004	SM72-SW-A	short wave	415	3500	800	15*33	B	Grafix Heidelberg 72
SM72	IRP005	SM72-MW-B	med. wave	415	1900	800	15*33	B	Grafix Heidelberg 72
SM102 - pre 97'	IRP006	SM102-SW-A	short wave	415	3500	1100	11*23	A	Heidelberg SM102(pre1997) Grafix Part:2130012
SM102 - pre 97'	IRP007	SM102-MW-B	med. wave	415	2500	1100	15*33	B	Heidelberg SM102(pre1997) Grafix Part:2130011

Applications

Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products, such as using in banners machine

Benefits

Clear heating: Don't worry about surface corrosion and dropping off
Quick controllable heat: The heating time is controllable as needed
Clean and odorless: No risk of contamination over environment or target object to be heated

Installation Guidelines

Turn off all electrical power to your lamps when installing or replacing them.

Infrared emitters should never be operated with more than the maximum rated voltage specified. Any longer operation at excess voltage (V > 110% of the rated voltage) may result in destruction of the infrared emitter.
