Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | IRP007 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Type: | B | Material: | Quartz |
|---|---|---|---|
| Power: | 2500W | Coating: | Gold |
| Voltage: | 415V | Total Length: | 1100mm |
| Heating Length: | 1020mm | Tube Diameter: | 15*33mm |
| Place Of Origin: | Guangdong, China | ||
| High Light: | 415V IRP Infrared Lamp For Printing,ROHS Twin Tube Infrared Emitters,2500W Twin Tube Infrared Emitters |
||

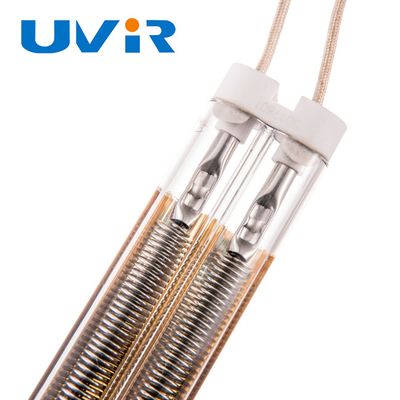

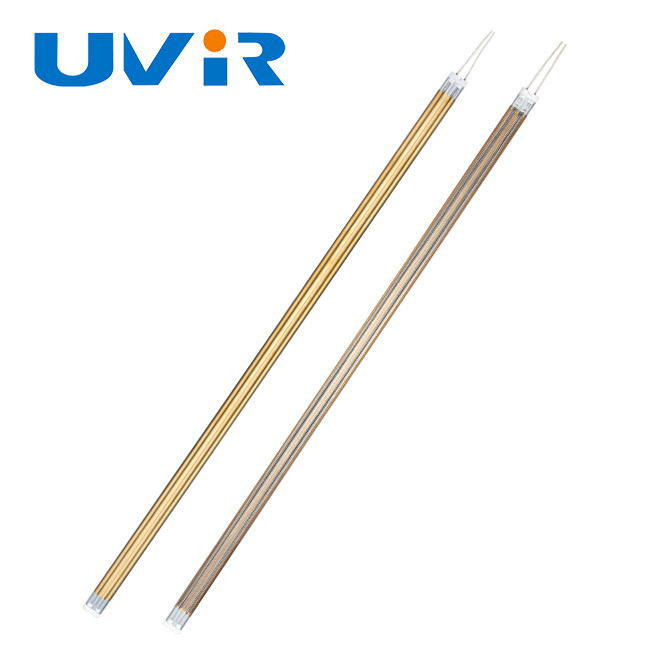

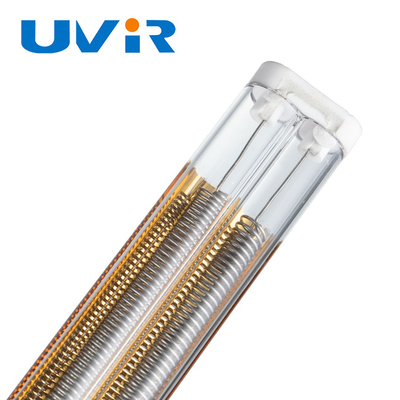

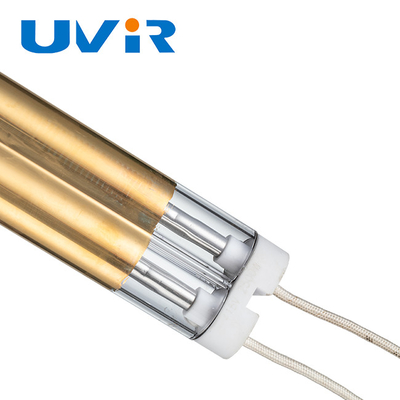

IRP007 415V 2500W Twin tube Medium wave infrared emitters for Heidelberg SM102(pre1997)
The Advantages Of UVIR Heat Lamp
Carbon fiber heat lamp
1.High-priced imported carbon fiber filament.
2.The finished filament is smooth and does not fluff.
3.The optimum power and maximum longevity.
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Technical Description
TWIN TUBE MEDIUM-WAVE IR L AMPS
Product details
| Type | IRP007 infrared lamp for PrintingMachine |
| Size | 11X23mm |
| Coating | Gold |
| Power | 230V |
| Voltage | 2500W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
IRP Infrared lamp for Printing Machine
| Dryer | UVIR Code |
Lamp Code |
Energy | Volts | Watts | Total Length |
Tube Corss Section |
Constr uction |
Dryer Detail |
| SM52 | IRP001 | SM52-SW-A | short wave | 415 | 3300 | 712 | 11*23 | B | Grafix Heidelberg SM52 |
| Heidelberg MO | IRP002 | HMO-SW-A | short wave | 415 | 3300 | 740 | 11*23 | B | Grafix Heidelberg MO |
| Heidelberg MO | IRP003 | HMO-MW-B | med. wave | 415 | 1800 | 740 | 15*33 | B | Grafix Heidelberg MO |
| SM72 | IRP004 | SM72-SW-A | short wave | 415 | 3500 | 800 | 15*33 | B | Grafix Heidelberg 72 |
| SM72 | IRP005 | SM72-MW-B | med. wave | 415 | 1900 | 800 | 15*33 | B | Grafix Heidelberg 72 |
| SM102 - pre 97' | IRP006 | SM102-SW-A | short wave | 415 | 3500 | 1100 | 11*23 | A | Heidelberg SM102(pre1997) Grafix Part:2130012 |
| SM102 - pre 97' | IRP007 | SM102-MW-B | med. wave | 415 | 2500 | 1100 | 15*33 | B | Heidelberg SM102(pre1997) Grafix Part:2130011 |
| CD74/SM74/ MAN 500 |
IRP008 | SM74-SW-C | short wave | 400 | 6950 | 900 | 11*23 | H | Drystar-Heidelberg SM74/CD74(post 1997) |
| CD74/SM74/ MAN 500 |
IRP009 | SM74-FMW-B | fast. med. | 480 | 4200 | 820 | 15*33 | B | Grafix Heldelberg SM74 post 1997 |
| CD74/SM74/ MAN 500 |
IRP010 | MANGX-FMW-B | fast. med. | 415 | 4200 | 820 | 15*33 | B | Grafix SHS MAN Roland 500 |
| CD102/SM102 | IRP011 | SM102-SW-C | short wave | 400 | 5400 | 1200 | 11*23 | H | Drystar |
| CD102/SM102 | IRP012 | SM102-FMW-B | fast. med. | 180 | 6000 | 1120 | 15*33 | B | Grafix SHS Heidelberg 102 post 1997 |
| CD102/SM102 | IRP013 | SM102-FMW-B-3000 | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar 3000 Heidelberg SM102/CD102 /SM10(post) |
| SM105XL | IRP014 | SM105XL-FMW-B | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar Heidelberg SM105XL(past 2007 ) |
| XL75 | IRP016 | XL75 | short wave | 400 | 3500 | 900 | 11*23 | B | XL75 |
IRP infrared lamp application
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Safety Instructions
Potentially explosive atmospheres
Infrared lamps are not intended for use in potentially explosive or combustible atmospheres.
Danger to eyes and skin
Do not stare at the IR lamp while in operation
Do not touch the IR lamp while in operation
Power supply lines
The power supply lines must not be routed in bundles. Routing in bundles increases the risk of overheating at
considerably lower temperatures.
The power supply lines installed are not designed to withstand heavy vibration or cyclic movement. If the infrared
lamps are to be moved by a device, the power supply lines must be installed on terminals that move along with
the lamp. Suitable leads for the power supply should then be installed from there.
Gold reflector/White reflector
The temperature of the gold reflector should not exceed 600°C in any operating condition to prevent irreversible
damage to the rflection properties of the gold.
The temperature of the white reflector should not exceed 900°C in any operating condition to prevent irreversible
damage to the reflection properties of the white coating.
Pinch seal/ ceramic end cap
The temperature of the pinch seals and the ceramic caps should not exceed 250°C. If the pinch seal and the ceramic
caps overheat, the infrared emitter will fail prematurely, the pinch seal will break and potential danger may arise
from exposed live parts.
Quartz glass tube
To avoid damaging the quartz glass tube, the temperature of the tube must not exceed:
700°C for shortwave emitters/800°C for carbon emitters/900°C for medium-wave emitters
