Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THC300085 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Voltage(V): | 230V | Lighting Solutions Service: | Lighting And Circuitry Design |
|---|---|---|---|
| Color: | Clear,White,gold | Power: | 1050W |
| Quartz Tube: | 11*23mm | Shape: | L |
| Coating: | Gold | ||
| High Light: | L Shape Heating Element 1050W,L Shape Heating Element 230V,Gold Halogen industrial heating element |
||

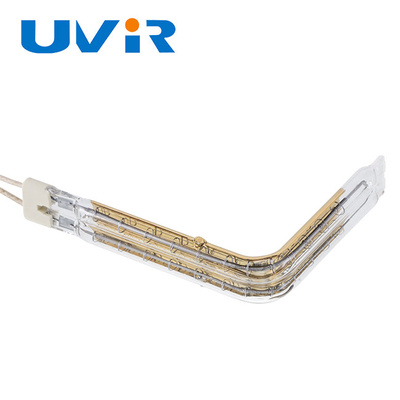

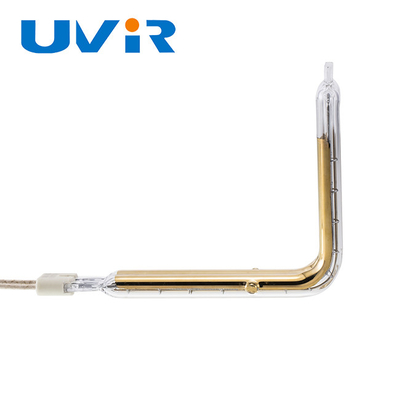

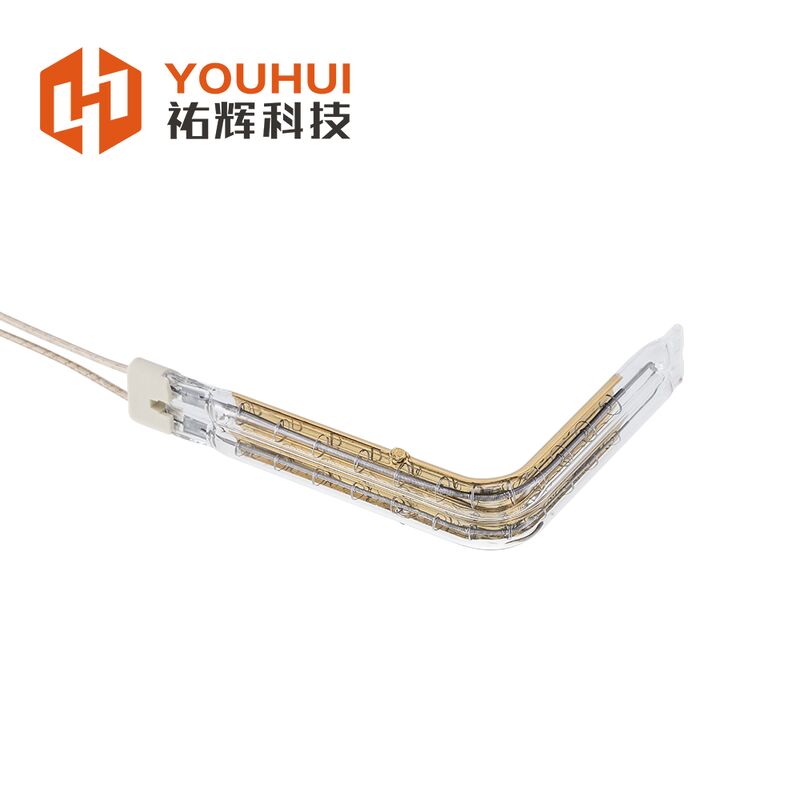

1050W 230V L-type Gold Halogen Infrared Heating Lamp Infrared For Industrial
Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
Product advantages
1. High purity , SiO2> 99.99%.
2. Working Temperature: 1250℃; SoftenTemperature: 1730℃ .
3. Good thermal stability.
4. Acid-proof, Alkali-proof.
5. Excellent electrical insulator.
6. Transmission: Visible light >93%, UV light>85%.
|
UVIR No. |
THC300085 |
| Voltage (V) | 230V |
| Wattage (W) | 1050W |
| Quartz Tube (mm) | 11*23 |
| Shape | L |
| Reflector | GOLD |
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Infrared lamp application field
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Photovoltaic Industry
IR heating for string soldering
IR preheating for sputtering processes
3.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
4.Infrared Heating For Food And Chemical Industry
IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice
5.Infrared Heating For Glass Industry
IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass
6.Infrared Heating For Textiles Industry
IR drying of coatings on textiles
IR heating for laminating of fabrics
7.Infrared Heating For Electronic Industry
Coatings on electronic components
The aging of the electronic components
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FQA
1. Can I get some samples?
We are happy to offer samples for you to check and test.
2. Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
3. What about the lead time?
15-20days after receive your payment.
4. How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.
