1250°C Working Temperature Infrared Heating Element Tube with Visible Light Transmission >93% and UV Light Transmission >85%

1250°C Working Temperature Infrared Heating Element Tube with Visible Light Transmission >93% and UV Light Transmission >85%

Brand Name:	UVIR
Model Number:	THC300085
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

230V

Lighting Solutions Service:

Lighting And Circuitry Design

Color:

Clear,White,gold

Power:

1050W

Quartz Tube:

11*23mm

Shape:

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

L Shape Heating Element 1050W

L Shape Heating Element 230V

Gold Halogen industrial heating element

Product Description

Gold Halogen L Shape Heating Element 1050W 230V For Industrial

Product Description

1050W 230V L-type Gold Halogen Infrared Heating Lamp Infrared For Industrial

Why Choose Gold Reflector

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase effectiveness. Gold/ceramic coated emitters are highly economical, converting nearly all electrical power into heat. For high watt density emitters or surface temperatures above 800°C, we recommend ceramic coating (temperature resistance up to 1000°C). We offer standard 180° (half-tube) coating or custom degrees upon request.

Product Advantages

High purity (SiO2 > 99.99%)
Working Temperature: 1250℃; Soften Temperature: 1730℃
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulator
High transmission: Visible light >93%, UV light >85%

Technical Specifications

UVIR No.	THC300085
Voltage (V)	230V
Wattage (W)	1050W
Quartz Tube (mm)	11*23
Shape	L
Reflector	GOLD

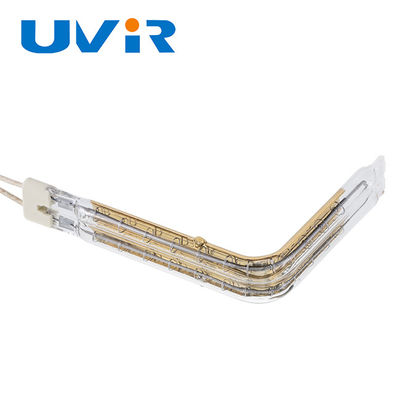

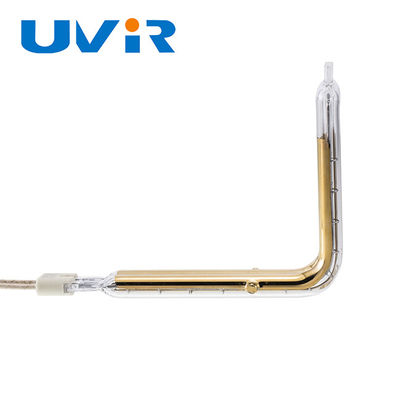

Product Images

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Infrared Lamp Application Fields

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, plastic packaging, PET bottle blow molding
Photovoltaic Industry: String soldering, preheating for sputtering processes
Printing Industry: Ink curing on cloth, drying for inkjet-based CTP plates, printing product drying
Food & Chemical Industry: Tableware disinfection, food heating, herbal medicine processing, snow/ice removal
Glass Industry: Car glass preheating, coating drying, laminated glass manufacturing/cutting
Textiles Industry: Coating drying, fabric laminating
Electronic Industry: Component coating, component aging

OEM Services

We provide expert advice for selecting the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications. We produce various sizes and types of heat lamps according to customer requirements. Custom samples can be provided based on your drawings.

Frequently Asked Questions

1. Can I get some samples?

We are happy to offer samples for testing and evaluation.

2. Do you have any MOQ limit?

Low MOQ available - 1 piece for sample checking.

3. What about the lead time?

15-20 days after receiving payment.

4. How does your factory handle quality control?

"Quality is priority." We implement strict QC from beginning to end. Our factory is certified with CE, ISO9001, RoHS, and SGS.
