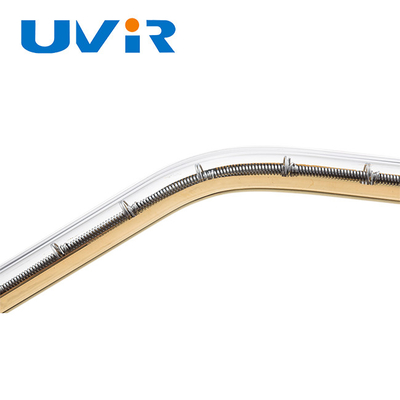

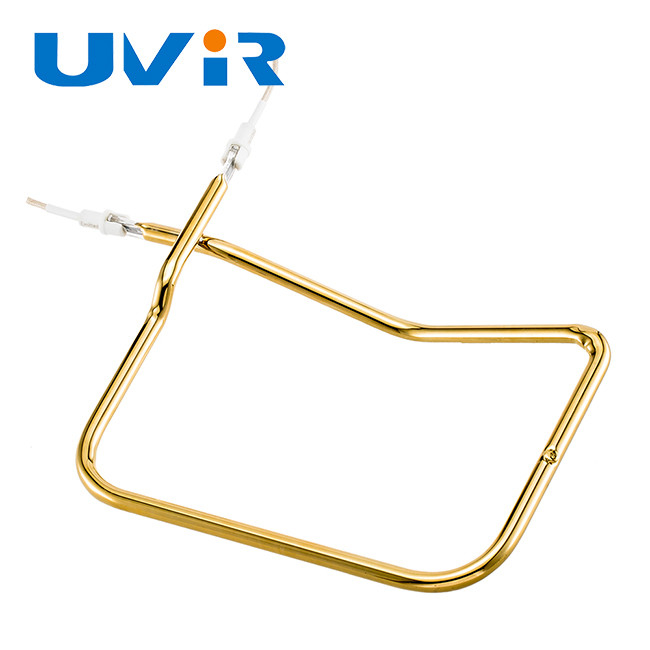

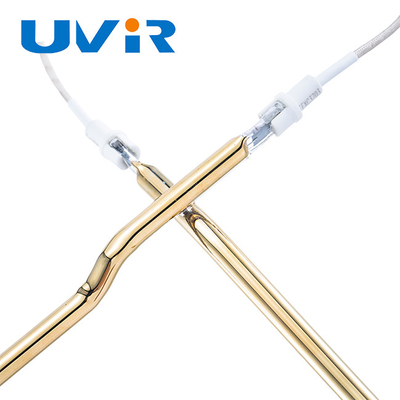

UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V

Name

UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V

Brand Name: UVIR
Model Number: SHG300915
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Brand Name::
UVIR
Material::
Quartz Tube
Filament Temp::
1800° C-2200° C
Color::
GOLD
Beam Angle(°)::
360
Peak Wavelength::
1.2 - 1.4 μm
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

Short Wave Infrared Lamp 1660W

,

Short Wave Infrared Lamp 230V

,

quartz tube infrared heaters 230V

Product Description
Quartz Tube Short Wave Infrared Lamp 1660W 230V
Key Features
  • Low energy consumption gold heat emitter
  • Shortwave halogen infrared technology
  • Quartz tube construction with tungsten filament
  • Gold reflector coating (90% reflective rate)
  • Peak wavelength: 1.2 - 1.4 μm
  • Operating temperature: 1800°C - 2200°C
Technical Specifications
Brand Name UVIR
Material Quartz Tube
Filament Temperature 1800°C - 2200°C
Color Gold
Beam Angle 360°
Peak Wavelength 1.2 - 1.4 μm
Voltage 230V
Wattage 1660W
Model Number SHG300915
UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 0 UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 1 UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 2 UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 3
Infrared Heating Technology Advantages
  • 1-2 second fast response time to full power
  • Output power adjustable via voltage regulator (0V to rated voltage)
  • ±1℃ precise temperature control with SCR regulators
  • Compact design with flexible mounting options
  • Suitable for temperatures up to 1000℃
  • Available in multiple wavelength options for different applications
  • Can be switched on/off frequently without performance degradation
Standard Configurations
UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 4
Industrial Applications
  • Plastic forming and thermoforming
  • Bottle blowing and PET preform heating
  • Paint drying and ink fusing
  • Food processing and catering equipment
  • Paper mill drying processes
  • Semiconductor wafer manufacturing
  • Various industrial drying applications
UVIR Gold Quartz Short Wave Infrared Lamp 1660W 230V 5
Frequently Asked Questions
Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." UVIR always emphasizes quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?

We can provide right heat solutions and offer OEM services, including printing your logo on products as required.

About after-sale service?

Any quality issue, once confirmed, will be compensated to our customer.
