Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | SHG300915 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name:: | UVIR | Material:: | Quartz Tube |
|---|---|---|---|
| Filament Temp:: | 1800° C-2200° C | Color:: | GOLD |
| Beam Angle(°):: | 360 | Peak Wavelength:: | 1.2 - 1.4 μm |
| High Light: | Short Wave Infrared Lamp 1660W,Short Wave Infrared Lamp 230V,quartz tube infrared heaters 230V |
||

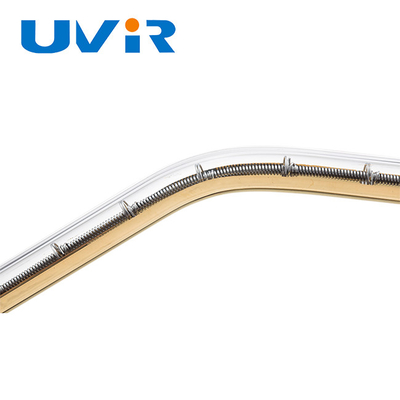

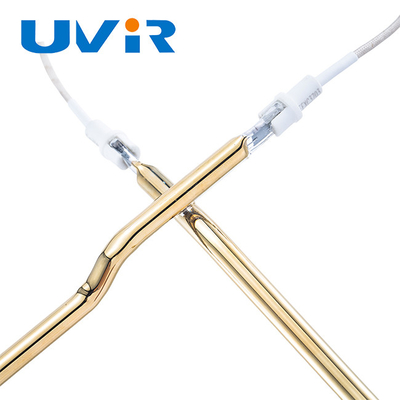

Low Energy Consumption Shape Gold Heat Emitters Shortwave Halogen Infrared Lamp
IR LAMP
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
|
UVIR No. |
SHG300915 |
| Voltage (V) | 230V |
| Wattage (W) | 1660W |
| Material | Quartz Tube |
| Light source | Tungsten filament |
| Reflector | GOLD |
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of energy in a short time. By matching different optimum wavelength of infrared, our Quartz Infrared (IR) Lamps are available for all industrial and scientific heating applications. Different objects different matched IR radiation wavelength-Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
1: E-DEN infrared heating lamps can be switched on and off frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage).
4: Accurate(±1 ℃)IR heating temperature control with SCR regulators or solid state relays.
5: Small installation space, flexible horizontal or vertical burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white reflector (70% reflective rate) coated on IR lamp quartz tube surface to reflect infrared radiation energy back on heated objects.
8: Different objects different matched IR radiation wavelength-IR lamp Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave

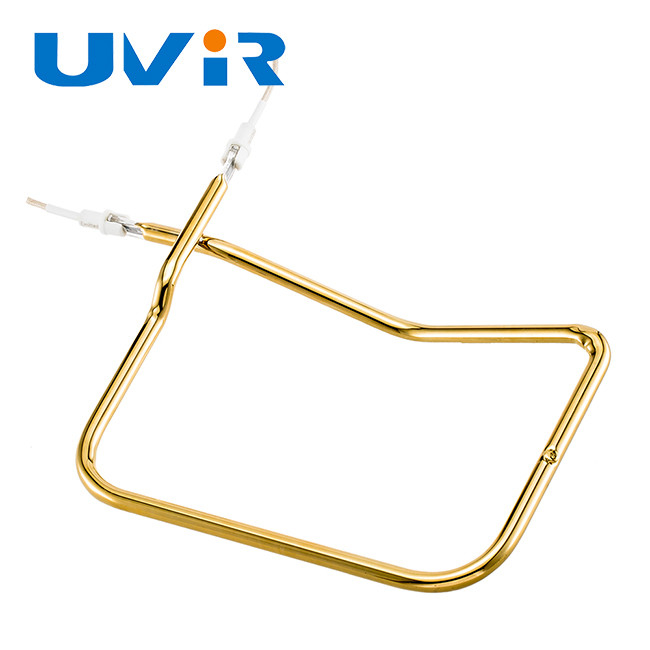

Selected Stock and Standard (Non-Stock) Contour
Short-Wave IR Lamps for 3-D Applications
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Application
- Heater
- Plastic forming
- Bottle blowing
- Paint drying
- Food catering/processing and etc.
- Pre-heating of PET perform
- Fusing printing ink
- Drying process in paper mill
- Plastics thermoforming
- Silicon wafer manufacturing process in Semiconductor
- And various kind of drying processes
FQA
1. Can I get some samples?
We are happy to offer samples for you to check and test.
2.Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
3.What about the lead time?
15days after receive your payment.
4.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.
5.About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.
6.About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
