1660W 230V Low Energy Consumption Quartz Tube Short Wave Infrared Lamp for Industrial Heating

1660W 230V Low Energy Consumption Quartz Tube Short Wave Infrared Lamp for Industrial Heating

Brand Name:	UVIR
Model Number:	SHG300915
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name::

UVIR

Material::

Quartz Tube

Filament Temp::

1800° C-2200° C

Color::

GOLD

Beam Angle(°)::

360

Peak Wavelength::

1.2 - 1.4 μm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Short Wave Infrared Lamp 1660W

Short Wave Infrared Lamp 230V

quartz tube infrared heaters 230V

Product Description

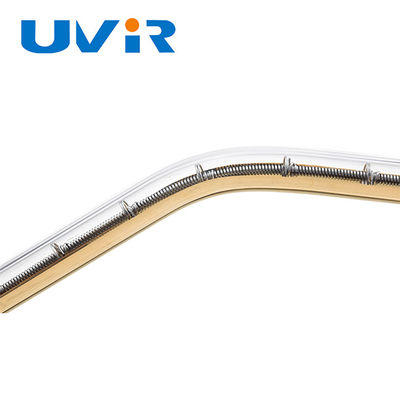

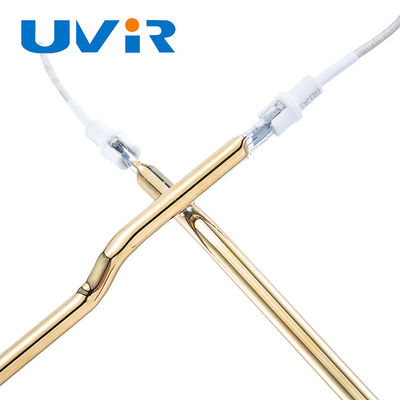

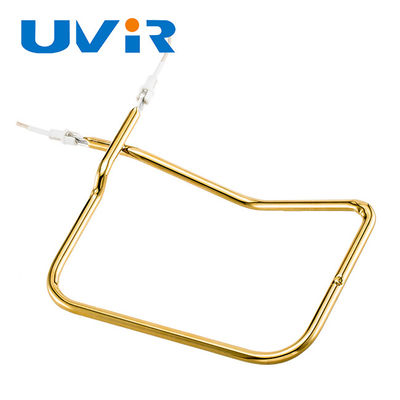

Quartz Tube Short Wave Infrared Lamp 1660W 230V

Low energy consumption shape gold heat emitters shortwave halogen infrared lamp designed for efficient industrial heating applications.

Product Specifications

UVIR Number	SHG300915
Voltage	230V
Wattage	1660W
Material	Quartz Tube
Light Source	Tungsten Filament
Reflector	Gold

Infrared Heating Technology

Infrared heating technology radiates and conveys large amounts of energy efficiently. Our quartz infrared lamps are engineered for all industrial and scientific heating applications with optimized wavelength matching.

Wavelength Options

Short Wave (0.9~1.4μm)
Fast Response Medium Wave (1.4~2.0μm)
Carbon Medium Wave (2.0~2.5μm)
Medium Wave (2.2~3.2μm)

Key Advantages

Frequent on/off switching capability
1-2 second fast response time to full power
Adjustable output power via voltage regulator (0V to rated voltage)
Precise temperature control (±1℃) with SCR regulators or solid state relays
Compact design with flexible horizontal or vertical installation
Suitable for temperatures up to 1000℃
Gold reflector (90% reflective rate) and ceramic white reflector (70% reflective rate) options
Wavelength-matched radiation for different materials

Standard Stock Configurations

Voltage	Length	Diameter	Shape	Gold Coating	White Coating	Ceramic Coating	Stock No.
115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

Custom configurations available - contact us for professional technical support and custom drawings.

Industrial Applications

Industrial heaters
Plastic forming and thermoforming
Bottle blowing processes
Paint and coating drying
Food catering and processing
PET preform pre-heating
Printing ink fusing
Paper mill drying processes
Semiconductor silicon wafer manufacturing
Various industrial drying applications

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." Our factory maintains comprehensive quality control from beginning to end and holds CE, ISO9001, RoHS, and SGS certifications.

About customized service?

We provide customized heat solutions and OEM services, including logo printing as per your requirements.

About after-sale service?

Any confirmed quality issues will be compensated to ensure customer satisfaction.
